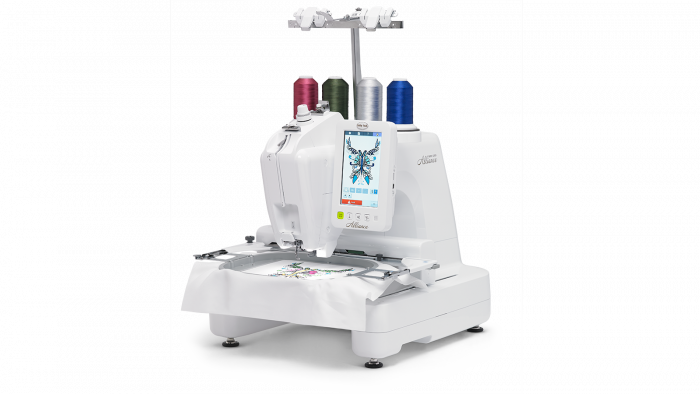

The Baby Lock Alliance single-needle, free-arm embroidery machine lets you embroider easily in tight quarters and even on three-dimensional projects. Its narrow embroidery arm and specially designed small hoops and frames take your embroidery places not possible with other machines - inside pockets, sleeves, even embroiderable stuffed animals!
The Baby Lock Alliance embroidery machine features include:
• 8" x 8" Embroidery Field
• 1,000 Stitches Per Minute
• 25 Built-In Fonts
• TruView LCD Touch Screen
• IQ Technology
Scroll down to learn more and see additional features.
Additional Product Details
COMBINE DESIGNS
• ✔ MACHINE WEIGHT ONLY
• 68 lbs
BUILT-IN FONTS
• 25
EMBROIDERY PATTERN MEMORY
• ✔ EMBROIDERY SPEED
• 1,000 SPM
FRAME PATTERNS
• 120
NUMBER OF NEEDLES
• 1
NUMBER OF USB TYPE A PORTS
• 1
BUILT-IN DESIGNS
• 125
NUMBER OF USB TYPE B PORTS
• 1
NUMBER OF HOOPS INCLUDED
• 6
TOTAL NUMBER OF USB PORTS
• 2
ROTATION CAPABILITY
• ✔ DESIGN DUPLICATION CAPABILITY
• ✔ ON-SCREEN EDITING
• ✔ DATA INPUT TYPES
• .pes, .phc, .pec, .dst
MAXIMUM EMBROIDERY FIELD SIZE
• 8" x 8"
Check that the bobbin winder shaft (post) has been returned to its original position.
There are a number of reasons you would want to have a Baby Lock products registered:
• To register your machine, serger, Gold Standard or Love of Sewing for warranty purposes
• So an authorized Baby Lock dealer can check your registered product information when you take it in for service and will then be able to determine what is covered by the Baby Lock warranty
• There may be times Baby Lock may send you special offers and information based on Baby Lock products you registered
• For your future reference should you need it
1. Login to your Baby Lock Account
2. From the Dashboard, click the Register a New Machine
3. Enter the information, select Validate
All of the Baby Lock multi-needle machines (EMP/BMP6/BMP8/BMP9/BND9/BNT10 /BNT10L) can read a design in .pes or .dst format. The design(s) can be sent to the machine directly from the computer via the special cable that came with your machine; you can put the design(s) on a floppy, an embroidery card or USB stick-depending on which model you have.
DST (tajima) embroidery files do not have colors assigned to the sections. You can go to your embroidery software or in your machine and change the colors the design if desired. Remember you can put any thread color in your machine.
Click here for a useful chart that contains bobbin thread recommendations for all Baby Lock embroidery machine models (EMP/BMP6/BMP8/BMP9/BND9/BNT10/BNTL). We feel using the recommended bobbin thread will give you the best results.
The jumpthreads are from the hoop moving in different areas of the design when using the same color thread. The machine is cutting the top and bottom thread at the end of each color.
Hoop your fabric and stabilizer as you would normally. Then take a piece of sticky stabilizer and put it under the hoop and wrap it around and over the outside edge if the hoop. The will help keep your fabric taut.
DISCOVER THE POWER OF THE ALLIANCE
Uncover the Innovative Features
OF THE ALLIANCE
COMBINE DESIGNS
• ✔ MACHINE WEIGHT ONLY
• 68 lbs
BUILT-IN FONTS
• 25
EMBROIDERY PATTERN MEMORY
• ✔ EMBROIDERY SPEED
• 1,000 SPM
FRAME PATTERNS
• 120
NUMBER OF NEEDLES
• 1
NUMBER OF USB TYPE A PORTS
• 1
BUILT-IN DESIGNS
• 125
NUMBER OF USB TYPE B PORTS
• 1
NUMBER OF HOOPS INCLUDED
• 6
TOTAL NUMBER OF USB PORTS
• 2
ROTATION CAPABILITY
• ✔ DESIGN DUPLICATION CAPABILITY
• ✔ ON-SCREEN EDITING
• ✔ DATA INPUT TYPES
• .pes, .phc, .pec, .dst
MAXIMUM EMBROIDERY FIELD SIZE
• 8" x 8"
QUICK-SET, BUILT-IN BOBBIN WINDER
The Alliance bobbin system includes an automatic bobbin winder with an independent motor. The winder seat holds the thread in place and stops automatically when the bobbin is full.
BABY LOCK IQ TECHNOLOGY2 USB DRIVES (1 TYPE A, 1 TYPE B)
Use USB connectivity to quickly import designs to your machine from a computer, flash drive or CD-ROM drive. The Alliance USB drives support multiple design software formats.
25 BUILT-IN FONTS
25 built-in, editable fonts to help you make every project unique, including a Large Floral Alphabet, Greek Letters, Large Appliqué Alphabet, and a Baby Lock exclusive font.
MULTI-LINE TEXT & JUSTIFICATION
Now you can create multiple lines of text quickly and easily, without the need for constant rehooping. Plus, you can center or justify your text alignment to get precisely the look you desire.
AUTOMATIC NEEDLE THREADER
Get the stitching started with worry-free threading. The automatic needle threader puts your thread through the needle so you are ready to begin stitching.
OPTIONAL CAP HOOP AND CAP SET
Embroider caps with speed and ease with this cap frame for your multi-needle embroidery machines. This snap-on frame allows you to effortlessly embroider along the curve of any cap. With additional cap frames, you can save time by having several caps hooped and ready to snap-in.
BABY LOCK IQ TECHNOLOGY LARGE EMBROIDERY FIELD
In addition to its ability to negotiate tight spaces, the Alliance can expand its reach to an 8” x 8” hoop, giving the dedicated home embroiderer or business startup room to create.
BABY LOCK IQ TECHNOLOGY EMBROIDER AT 1,000 SPM
Embrace larger, multicolored designs and watch them stitch in no time! The Alliance reliably works up to 1,000 stitches per minute.
NEEDLE BEAM FOR EMBROIDERY
The Needle Beam highlights your needle position so you know exactly where your embroidery will start. That means perfect placement every time.
SINGLE-NEEDLE, FREE-ARM EMBROIDERY
With its single needle and free arm, the Alliance is built to embroider items and three-dimensional spaces that are difficult for typical embroidery machines, such as inside pockets, embroiderable stuffed animals, or even shoes.
TRUVIEW™ LCD COLOR TOUCH SCREEN™
This high-definition TruView LCD color touch screen brings your embroidery designs to life. It displays more than 260,000 colors, providing a bold and vivid image to aid the embroiderer in editing and perfecting each design.
CONVENIENT BOBBIN SYSTEM
This front-loading bobbin system with a vertical hook makes bobbin changes a cinch. You never have to remove your embroidery hoop.
