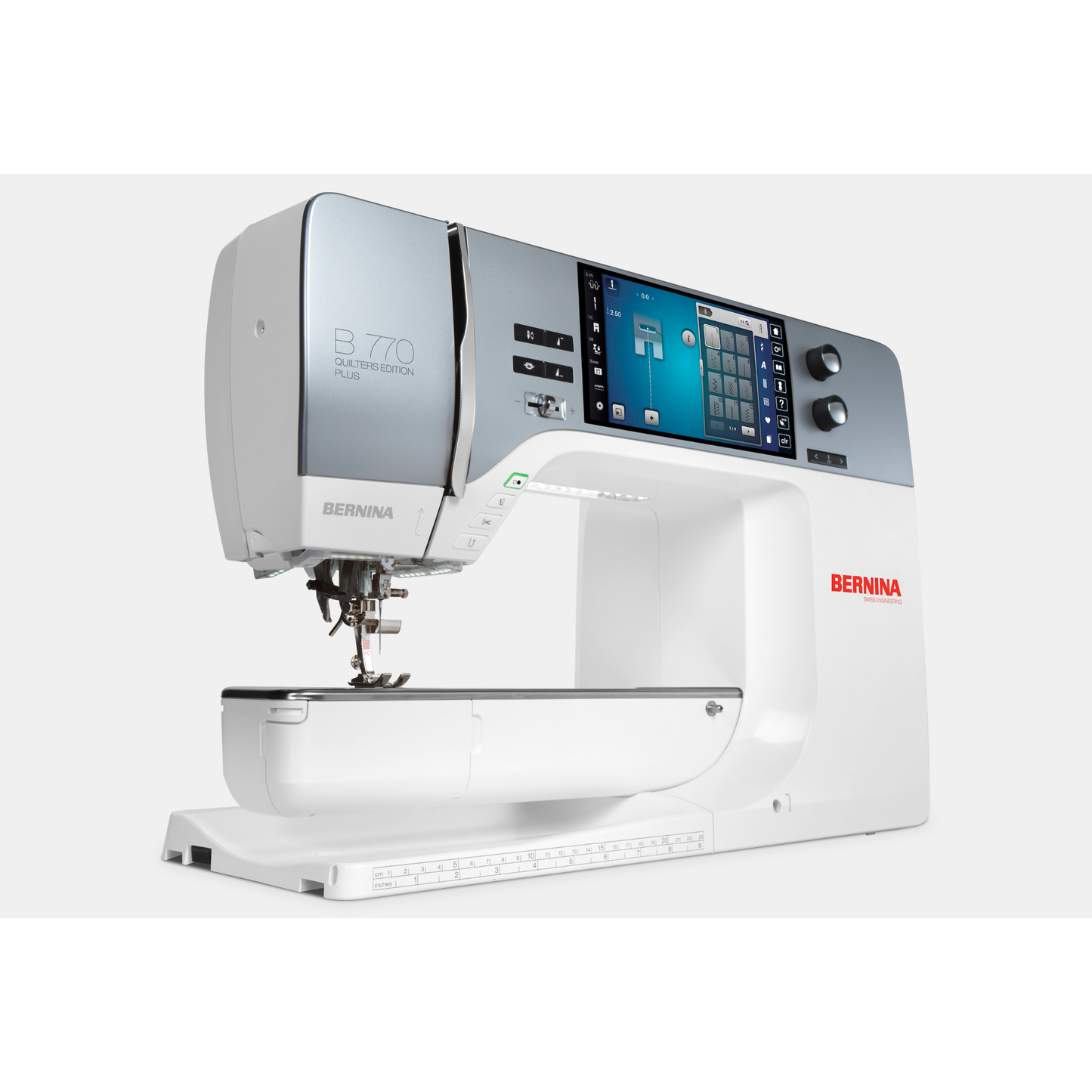

BERNINA B 770 QE PLUS E (BSR Standard, includes module)
Regular price
$10,749.00
Sale price
$10,749.00
Regular price
SaleSold out
Unit price
/per
Adding product to your cart
This product can not be sold online and our incredible SALE PRICES can't be displayed online. ClickHEREto have a specialist contact you regarding this purchase!
> Extra Large 7" Color Touch Screen
> Convenient Quilting without Foot Control
> BERNINA Stitch Regulator (BSR) Included
> Jumbo Bobbin with 70% More Thread
> Dual Feed for Precise Patchwork
The B 770 QE PLUS offers innovative quilting, sewing and embroidering features plus a large sewing space to make creating easy. If desired, the B 770 QE PLUS can be upgraded with an optional embroidery module any time.
The BERNINA Stitch Regulator (BSR) guarantees precise stitch quality and perfect results at any speed during free-motion quilting.
What quilters need
Many new quilting stitches
Easy-to-use BSR 3 Mode
2 or 4 stitches per inch
With the BSR 3 Mode, you will be able to set your stitch length to 2 or 4 stitches per inch for easy quilt basting. Furthermore, the B 770 QE PLUS offers a total of 74 quilting stitches.
The KickStart function allows quilting in a continuous sewing mode without having to keep constant pressure on the foot control. The function can easily be activated or deactivated on the touch screen.
Quilting in the hoop
Create quilt patterns through embroidery
275 embroidery designs
Eight embroidery fonts
Browse through the unique, built-in design collection, complete with beautifully patterned quilt blocks and continuous line quilting designs all done in embroidery. Furthermore, the B 770 QE PLUS includes 275 embroidery designs and eight embroidery fonts.
Advanced embroidery module
Smoother movement and less vibration
Increased embroidery speed up to 55%
Better stitch quality
The new optional BERNINA Smart Drive Technology (SDT) module elevates your embroidery experience with enhanced stitch quality, smoother and quieter movement and up to 55% higher embroidery speed.
Place your embroidery design on the fabric exactly where you want it quickly and precisely. The new Lock function will help maintain the size of the design while you position it.
Group/Ungroup and rearrange designs
Group or ungroup designs
Rearrange designs
Both functions can be combined
Combine embroidery designs to edit all at one time with the Group feature. Break apart designs to edit individually using the Ungroup feature. Change the stitch out sequence of design layers. Use Rearrange in combination with Group and Ungroup for further editing possibilities.
Sew silk & leather like a pro
Handle special materials with ease
Enjoy superb fabric feed
Optimum visibility while sewing
The innovative BERNINA Dual Feed is easily engaged when needed and tucks completely out of the way when it’s not.
Quiet & precise
Ideally suited for decorative stitches
Sew & embroider for longer periods of time
More time for your creativity
The BERNINA Hook sews high-precision stitches up to 9 mm in width with speeds up to 1,000 stitches per minute. The bobbin holds 70% more thread than standard bobbins.
Beautiful couching
With the Rulerfoot #72 / #72S
And the Couching Inserts
Easy to use in the hoop
The Adjustable Ruler Foot #72 / #72S can now be selected while embroidering with Couching Inserts. The possible embroidery area will adjust accordingly. These accessories are optionally available.
"I can count on BERNINA for all my precise stitching."
Valentina Bukeeva, Designer
Valentina Bukeeva, a native of Russia and resident of Finland, is the founder of an online school of modern sewing and quilting. When she made her first quilt 10 years ago, she never dreamt it would grow into a successful school for sewing enthusiasts from around the world. Today, her specialty is fashion accessories such as intricately quilted and embroidered bags sophisticated enough to be featured in fashion shows.
Onscreen editing of designs: positioning, mirroring, rotating, scaling, combining
Import/Export of patterns via USB
Pinpoint Placement
Group/Ungroup
Rearrange embroidery designs in combination
Invisible Secure
Smart Secure
Thread-up Command
Programmable jump stitch cutting
Thread Away Mode
Midi hoop functionality (embroidery field: 265×165 mm, 10.5"×6.5")
Mega hoop functionality (embroidery field: 400×150 mm, 15.7"×5.9")
Maxi hoop functionality (embroidery field: 400×210 mm, 15.7"×8.3")
Jumbo hoop functionality (limited embroidery field: 400×210 mm, 15.7"×8.3")
Automatic hoop recognition
Freearm embroidery
Personal memory for embroidery designs
WordArt
Importing stitch patterns
Color resequence
Sequence control
Basting
Position recall
BERNINA ArtLink embroidery software (downloadable from bernina.com)
Embroidery tutorial
BERNINA Embroidery Software Compatible
BERNINA PunchWork Tool compatible
Hook system BERNINA Hook
Maximum sewing speed (stitches per minute) 1000
Sewing space to the right of the needle 10''
Color touch screen 7” / 18 cm
Drag & Drop
LED sewing lights 30 LED
Multi-function knobs
Needle positions 11
Sewing in each needle position
Number of spool holders 2
Semi-automatic needle threader
Adjustable presser foot pressure
Automatic presser foot pressure
Manual thread cutter 3
Automatic thread cutter
Pivot / hover function
BERNINA Dual Feed (BDF)
Adaptive Thread Tension
Upper thread indicator
Lower thread indicator
BSR functionality, straight stitch and zigzag
BSR 3 mode (basting)
Programmable BERNINA foot control
Create and save stitch combinations
Memory (short-term/altered stitches)
Memory (long-term/altered stitches)
Start/stop button (stitching without foot control)
Slide speed control
Bobbin winding while sewing/embroidering
USB interface for PC connection
USB interface for USB data stick
Changing stitch settings while sewing
Needle stop up/down
On-screen help
Creative consultant
Sewing tutorial
Embroidery tutorial
Personal program
History function (most-recently-used stitch patterns)
Setup program
Eco Mode
Machine weight 30.9 lb
Machine size 20.5″ / 8.4″ / 14.1″
Practical stitches
Buttonholes
Decorative stitches
Quilt stitches
Accessories
Unleash your creativity with the included accessories and be prepared for any creative challenge with a huge variety of optional accessories
Standard accessories BERNINA 480
Here you will find an overview of the standard accessories for the BERNINA 480.
BERNINA Stitch Regulator (BSR)
The BERNINA Stitch Regulator (BSR) adapts precisely to your current sewing speed to produce absolutely consistent stitching.
Reverse Pattern Foot #1C
Reverse Pattern Foot #1C is the ideal presser foot for sewing forward and reverse-feed utility and decorative stitches.
Reverse Pattern Foot #1D
Reverse Pattern Foot #1D is the ideal presser foot for sewing forward and reverse-feed utility and decorative stitches.
Buttonhole Foot with Slide #3A
Depending on the model, Buttonhole Foot with Slide #3A determines the desired buttonhole length for identical buttonholes either via a sensor or manually.
Open Embroidery Foot #20C is ideal for embroidering with your sewing machine. The indentation in the sole of the presser foot allows it to glide smoothly over dense stitches.
Extend your sewing surface with the Slide-on Table to support your large projects. Easily remove it when using only the free arm is desired, such as for sewing small tubular projects.
The Knee lifter/Free-Hand System (FHS) lets you raise the presser foot and lower the feed dog with your knee. Recommended particularly for appliqué or any project requiring pivoting and getting bulky projects under the presser foot easily.
The Touchscreen Pen – ideal for working on the touch screens on BERNINA sewing and embroidery computers. Operate the touch screen by gently tapping it.
The practical Accessory Box can be used to store all Sewing Accessories, such as Presser Feet, Needles and Bobbins. The Accessory Box is supplied without contents.
Note:
Not all models and accessories are available in all countries. We reserve the right to make changes in both features and design.
Presser feet for every occasion
BERNINA presser feet stand for precision and stability. They are easy to change and BERNINA has a suitable presser foot for every application.
Accessories for Sewing Machines
BERNINA Sewing accessories let you perform a host of creative techniques with even greater precision and comfort – according to your individual needs.
Note:
Not all models and accessories are available in all countries. We reserve the right to make changes in both features and design.
Tutorials
1/10 BERNINA 770 QE PLUS: First steps
This video tutorial will take you through setting up your BERNINA, step by step. This ranges from threading to replacing the presser foot – all done in a few simple steps. The generously proportioned and ultra-clear touch screen with touch stylus pen also means it couldn’t be easier to change settings, such as the winding speed and selected stitches. The scroll function facilitates easier and more intuitive navigation through the program, and tips and further information on the individual functions and stitches are a click away via the Help function.
2/10 BERNINA 770 QE PLUS: Change stitches
The BERNINA 770 QE PLUS make sewing decorative seams fun! Simply use the touch pen to pick out your choice of stitch on the large and clear display and then adjust the width and length of the stitch with the practical multifunction knobs. The decorative stitch menu lets you select your preferred choice of stitch from numerous available options. All this can be configured comfortably on your display, which also lets you preview what the modified stitch will look like beforehand.
3/10 BERNINA 770 QE PLUS: Combining letters and stitches
As you will see in this tutorial, sewing text is child’s play with the BERNINA 770 QE PLUS, even for total beginners. Simply select a font and type in the text that you want to sew. It is particularly quick and convenient thanks to the clear display and easy handling with the touch pen stylus.
4/10 BERNINA 770 QE PLUS: Sewing buttonholes and sewing on buttons
Sewing buttonholes and sewing on buttons is a breeze with the BERNINA 770 QE PLUS. All you have to do is choose the buttonhole you want from the menu and then configure the cutting width using the multifunction knobs. BERNINA has also included a particularly smart feature to make sure the buttonhole fits: you can hold the button against the display and then use the multifunction knobs to configure the right button size.
5/10 BERNINA 770 QE PLUS: Sewing with the BERNINA Stitch Regulator (BSR)
Free-motion sewing and quilting – creative techniques that allow you extraordinary scope to create new designs. The B 770 QE PLUS will double your sewing fun, because the BERNINA stitch regulator, or BSR for short, makes free-motion quilting child’s play. The BSR foot makes each stitch exactly the same length during free-motion sewing, resulting in a neat and even stitch pattern.
6/10 BERNINA 770 QE PLUS: Sewing with Dual Feed
The BERNINA Dual Feed – one of the smartest and most helpful features you’ll find on the BERNINA 770 QE PLUS. In this tutorial we will show you what this clever helper can do. With simultaneous upper and lower fabric feeds, the Dual Feed allows for precise seam tracking and guarantees accurate results, even with multi-layer, extra-thick or difficult to move textiles.
7/10 BERNINA 770 QE PLUS: Sewing in zippers
Sewing in zippers is a task few look forward to. But with the technology of the BERNINA 770 QE PLUS machine it can be a pleasure. Simply select the type of fabric and the zipper from the display. The BERNINA then automatically calculates the optimal settings for the stitching and needle position. All you need to do then is to pin the zipper to the fabric, attach presser foot number 4 or 4D and follow the instructions. You have even more control over the sewing process with the needle-stop function. Sewing in the zipper is now almost as if by magic – all with the BERNINA precision you have come to know and love.
8/10 BERNINA 770 QE PLUS: First steps when embroidering
This video tutorial shows you that thanks to clever BERNINA innovations, even absolute beginners can use their B 770 QE PLUS to create exquisite embroidery. Step-by-step, our instructions show you how to proceed to get the best results – from selecting the settings to installing the embroidery module and changing the stitch plate through to inserting the needle and the right choice of foot and embroidery hoop. All this means you will be ready to tackle your project in no time, accurately and precisely, and even first-timers can expect to produce impressive results.
9/10 BERNINA 770 QE PLUS: Single-colour pattern embroidery
This tutorial will teach you how you can embroider a single-colour pattern with unbeatable accuracy using the 770 QE PLUS. The instructions take you step-by-step through the required settings, all conveniently shown on the generously sized display. You will also learn how you can adjust the embroidery motif by turning and scaling your sewing piece – easy and intuitively with the multifunction knob.
10/10 BERNINA 770 QE PLUS: Care and cleaning
The designers have thought of your comfort when it comes to cleaning and caring for the BERNINA 770 QE PLUS. All parts prone to deposition of dust and textile fibres during sewing are easily accessible and can be cleaned with minimal effort using the care set provided in the delivery package. The instructions show you step-by-step how to prepare your BERNINA for the cleaning process, how to clean and care and the right place to apply a few drops of oil to ensure friction-free, smooth running of components. Simply spread the oil by running a few blank stitches through the unit – and your BERNINA is once again ready for your textile creations.
Great new features for your B 770 QE PLUS
Great new features to take your embroidery and quilting experience to the next level!
The BERNINA hook – the heart of the BERNINA 7 Series
The heart of the BERNINA 7 Series features a novel, centrally placed driver, which allows the BERNINA Hook to run fast yet quietly. The BERNINA Hook sews high-precision stitches up to 9 mm in width with speeds up to 1,000 stitches per minute. The bobbin holds up to 70% more thread than standard bobbins allowing you to sew longer without interruption.
Frequently Asked Questions
We recommend to use only BERNINA quality bobbins because using off-brand bobbins can cause unsatisfying thread tension and other problems.
The embroidery motif should not be enlarged or reduced on the machine by more than 20%.
The function "Virtual positioning" was not activated when selecting the hoop. Activate the function so the hoop moves during positioning.
Place tear-away stabilizer underneath the fabric to stabilize it and carefully remove it once you have sewn the stitches.
The frequency of oiling depends on the number of the sewn stitches. We recommend to place a drop of oil onto the hook race before sewing for a longer period, but at least when the machine prompts you. When sewing bigger projects, you can oil the machine once a day.
The "Cut connecting stitches" icon in stitching mode is not active.
The cut length of the connecting stitches is set too high. To change this, go to "Setup", "Embroidery settings", "Automatic cut" and reduce the value.
Always use the smallest possible hoop the motif will allow.
The bobbin winder is activated.
Cut off the upper thread, raise the presser foot, carefully lift the fabric to cut off the lower thread and any twisted threads. Do not pull! Remove the fabric. Remove the bobbin case, open the hook to check whether any thread is tangled in the hook area and remove it. Also check whether there is any thread under the needle plate. Replace the hook, bobbin case, bobbin and needle plate. Check whether the upper thread is threaded correctly and rethread if necessary.
The screen needs calibrating. Select "Setup", "Machine settings" and "Display calibration" and follow the instructions on the screen.
No presser foot is attached.
The 9 mm needle plate is not activated.
The last 24 stitch patterns sewn and their settings are saved and can be selected directly.
There may be several reasons for this:
The door of the hook cover is open. Close it.
The sensor of the lower thread indicator is dirty and needs cleaning.
The lower thread indicator has been deactivated in "Setup". Select "Setup", "Monitoring functions" and "Activating the lower thread indicator".
Combi mode is active ( "+" icon on the screen). Select Combi mode again in order to get back into Single mode.
Yes, but only in combination with using the buttonhole foot with slide #3A.
Formats of various brands can be used:
EXP, DST, PES, PEC, JEF, PCS, SEW, XXX
When the machine is used for the first time.
If the center needle position does not match with the actual center of the motif.
Check the slide speed control on the front of the machine and move to the right. Here you can set the maximum speed setting when sewing with the foot control or use it to adjust the speed when working with the start/stop button.
There may be several reasons for this:
The feed dog is down.
The stitch length is set very small.
The purple or orange template is used, depending on the model.
From the 7-Series, although the Jumbo Hoop will have a limited embroidery area.
The "reverse sewing" function is active. This can be activated or deactivated under "Information".
Necessary when using a second thread for example sewing with the twin needle.
For stacked (parallel wound) threads, use the vertical spool pin to allow the thread to evenly feed off the spool.
Important: use the foam pad as base.
Click on "Setup", "Machine settings" and "Select language" and select the desired language.
Both threads follow the usual threading path, but one passes to the right and the other to the left of the tension disc
The upper thread indicator has been deactivated in "Setup". Select "Setup", "Monitoring functions" and "Activating the upper thread indicator".
Touch the appropriate icon to see what changes have been made. Most changes can be undone with "clr".
For attaching the seam guide.
Calibrate the buttonhole foot slide. Select "Setup", "Machine settings" and "Calibrate Buttonhole foot with slide 3A" and follow the instructions.
This is a specially developed bobbin case with high thread tension for the BERNINA hook that is particularly suitable for embroidery and quilting.
The attached Embroidery foot #26 and the needle plate have to be selected.
For attaching BERNINA accessories such as the binder attachment, circular embroidery attachment, hosiery darning hoop, and much more.
For bobbin winding when the machine is threaded for sewing. The thread stands on the horizontal spool pin and is threaded first through the eyelet and then the pre-tension stud.
Use the right kind of stabilizer and, if necessary, several layers depending on the fabric thickness.
The pressure foot hovering height is not set to 0.
Select "Setup", "Sewing settings", "Program buttons and icons" and set the value of "Adjustable hover position" to 0.
A Jumbo Bobbin holds approximately 100 m, depending on the thread. The lower thread sensor notifies you when there is 10% of the thread remaining. This means that there is still approximately 10 m of thread on the bobbin.
Check if there are any pieces of loose thread in the path of the upper thread and remove them.
Support for your BERNINA 770 QE PLUS
To ensure that you enjoy your BERNINA for as long as possible, we recommend that you read the detailed operating instructions. Further support information and firmware updates can be found on the support page.
Quilting project
Recreate Valentina's fashionable backpack featuring intricate quilting & embroidery details and you will own a piece of art when finished.
