Is This Machine Right For You?

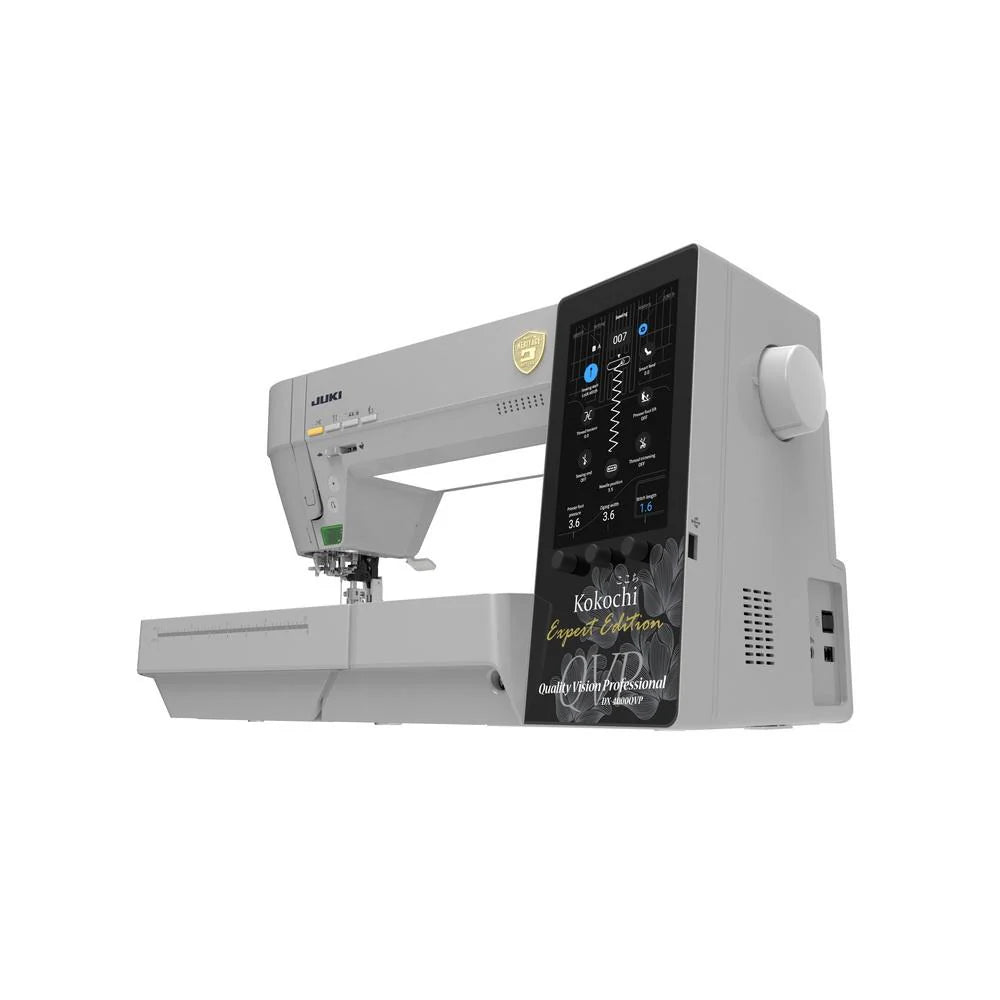

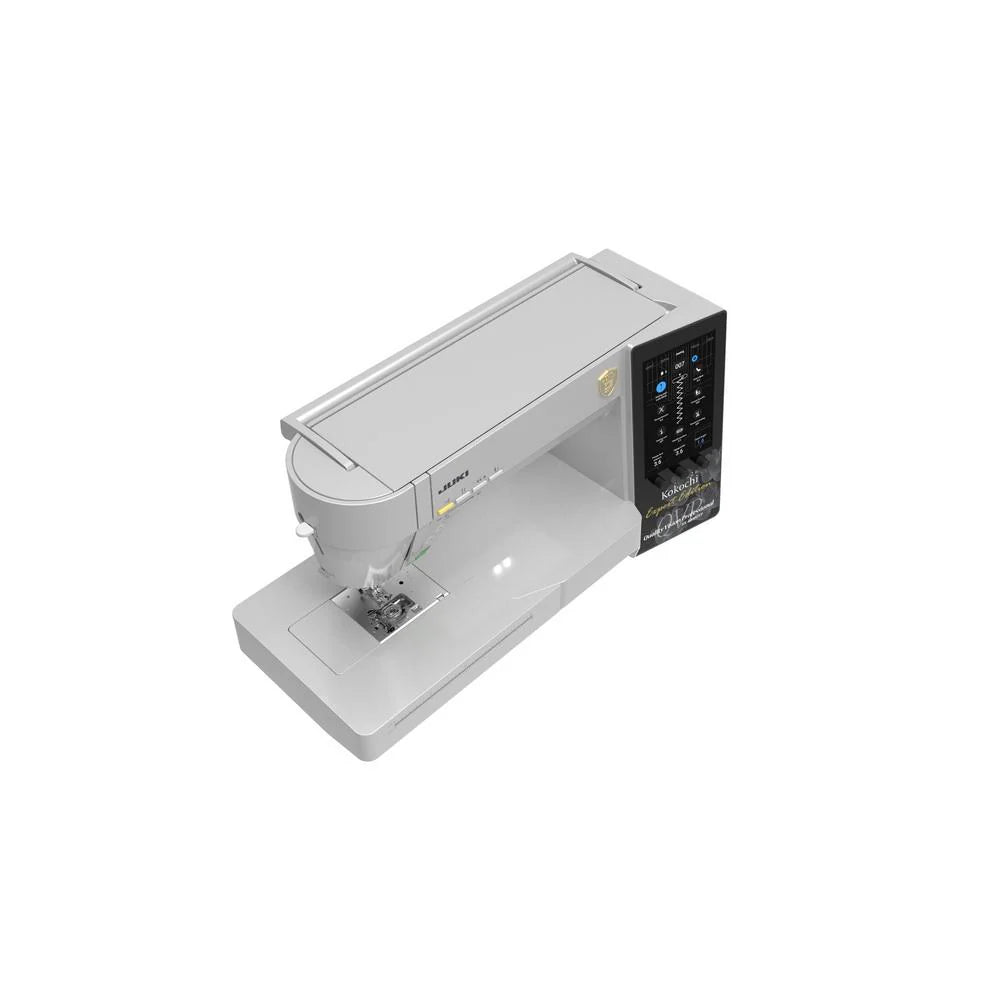

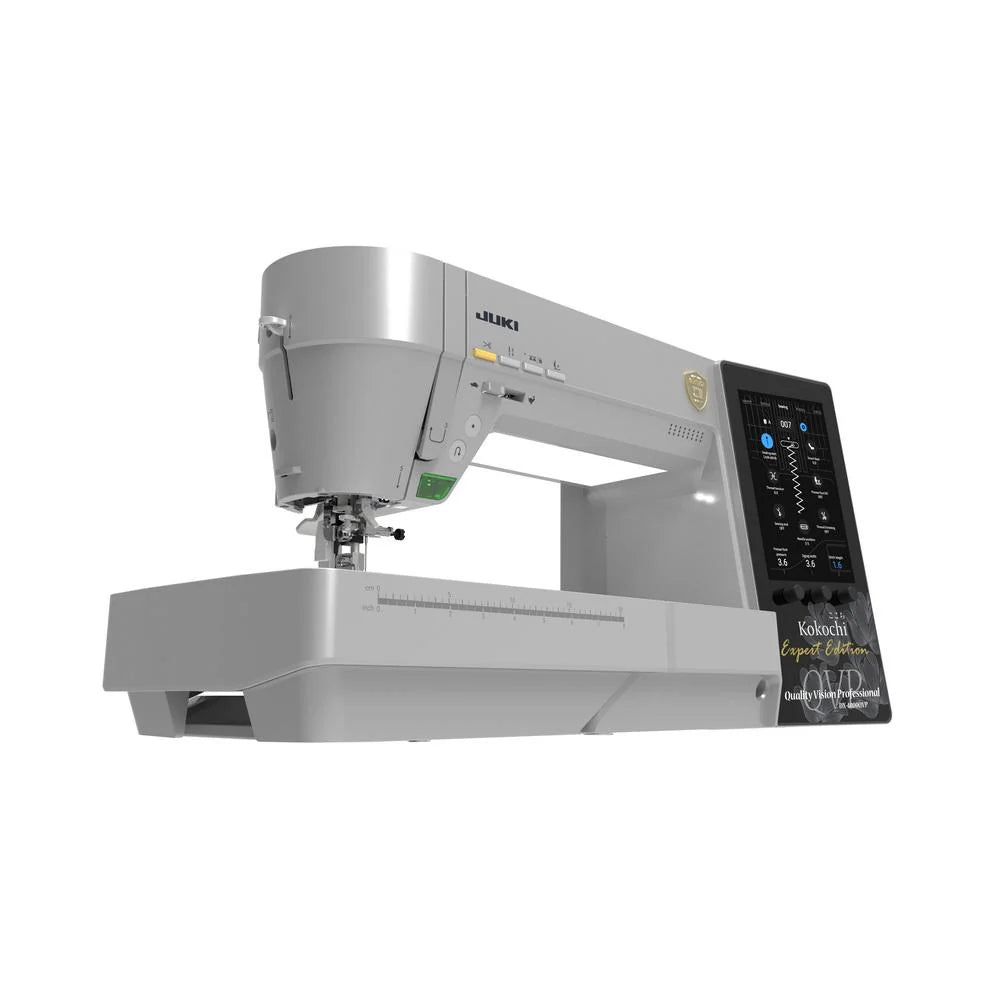

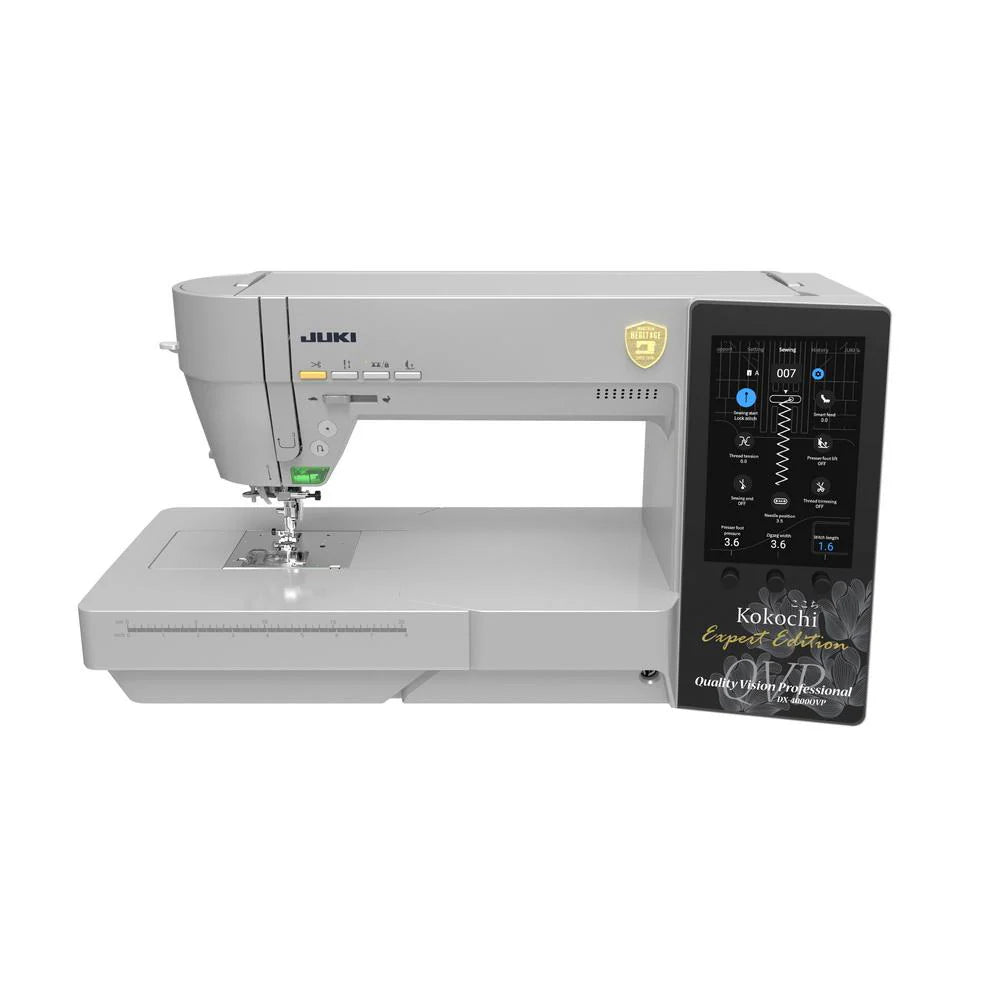

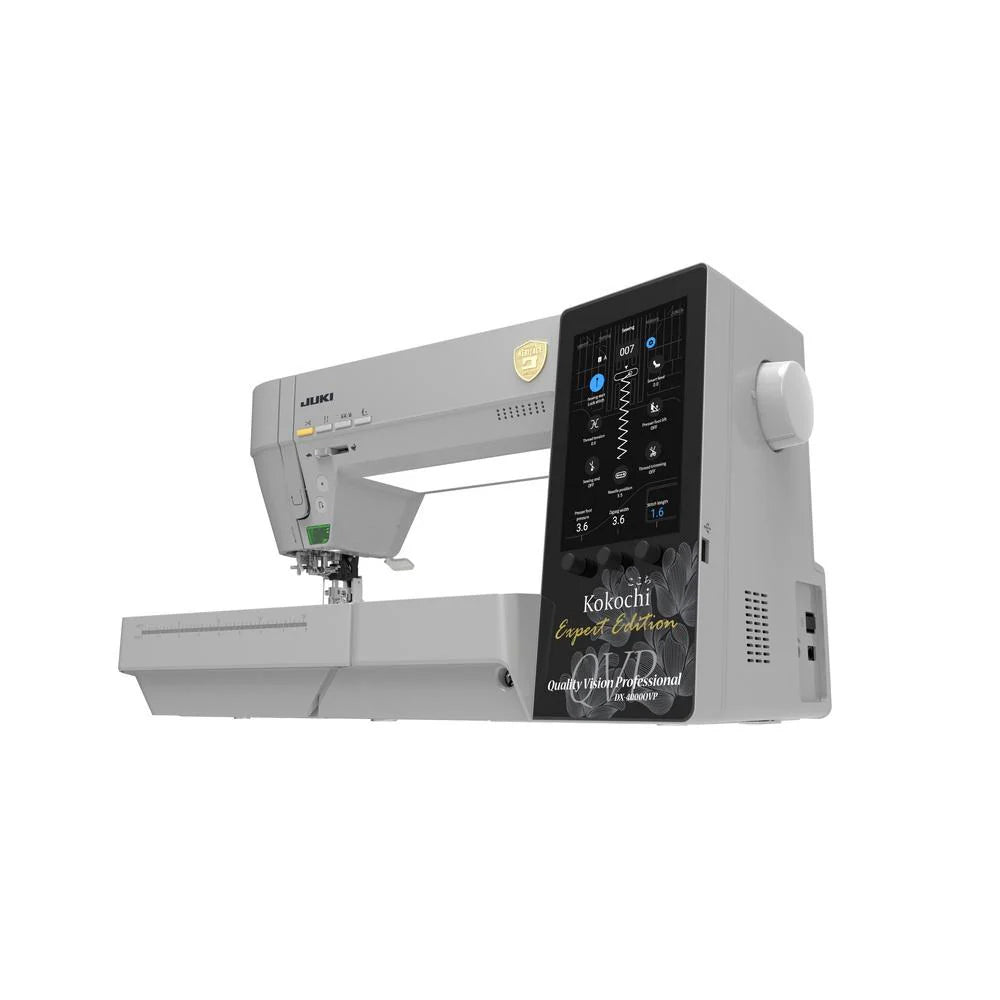

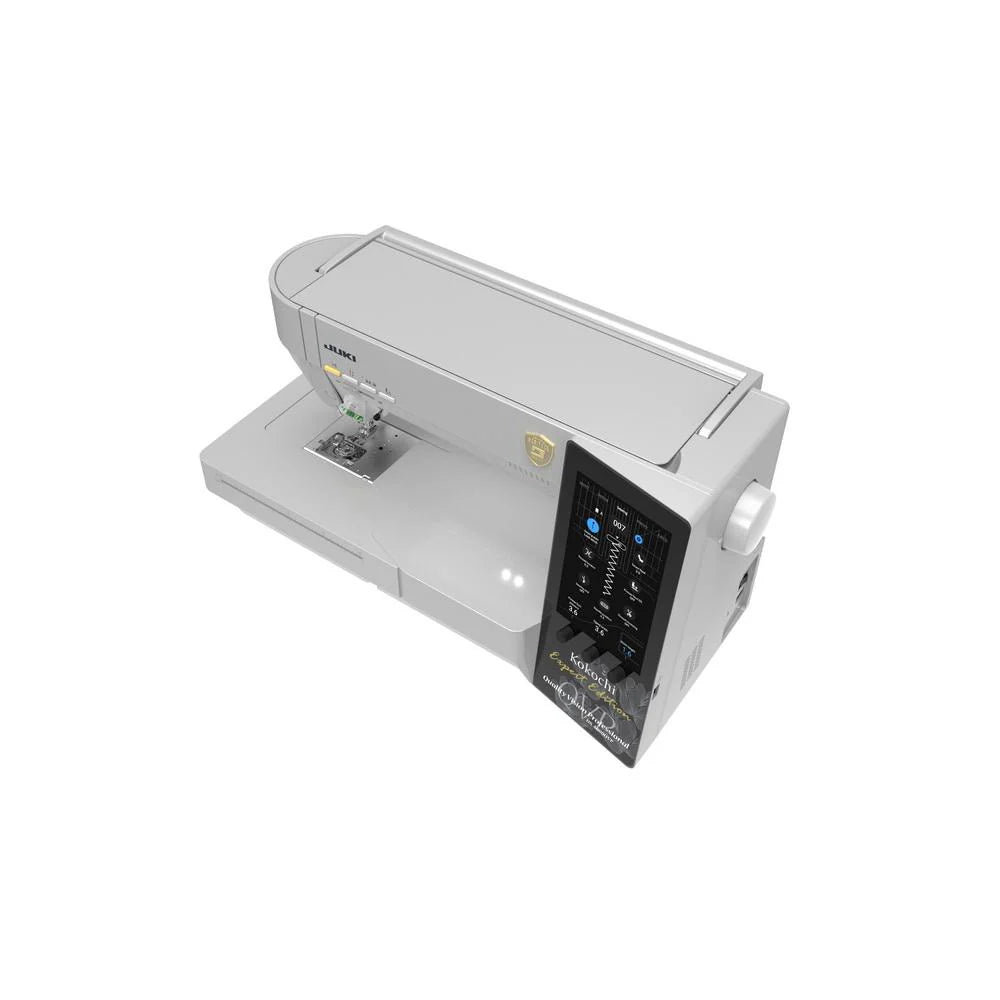

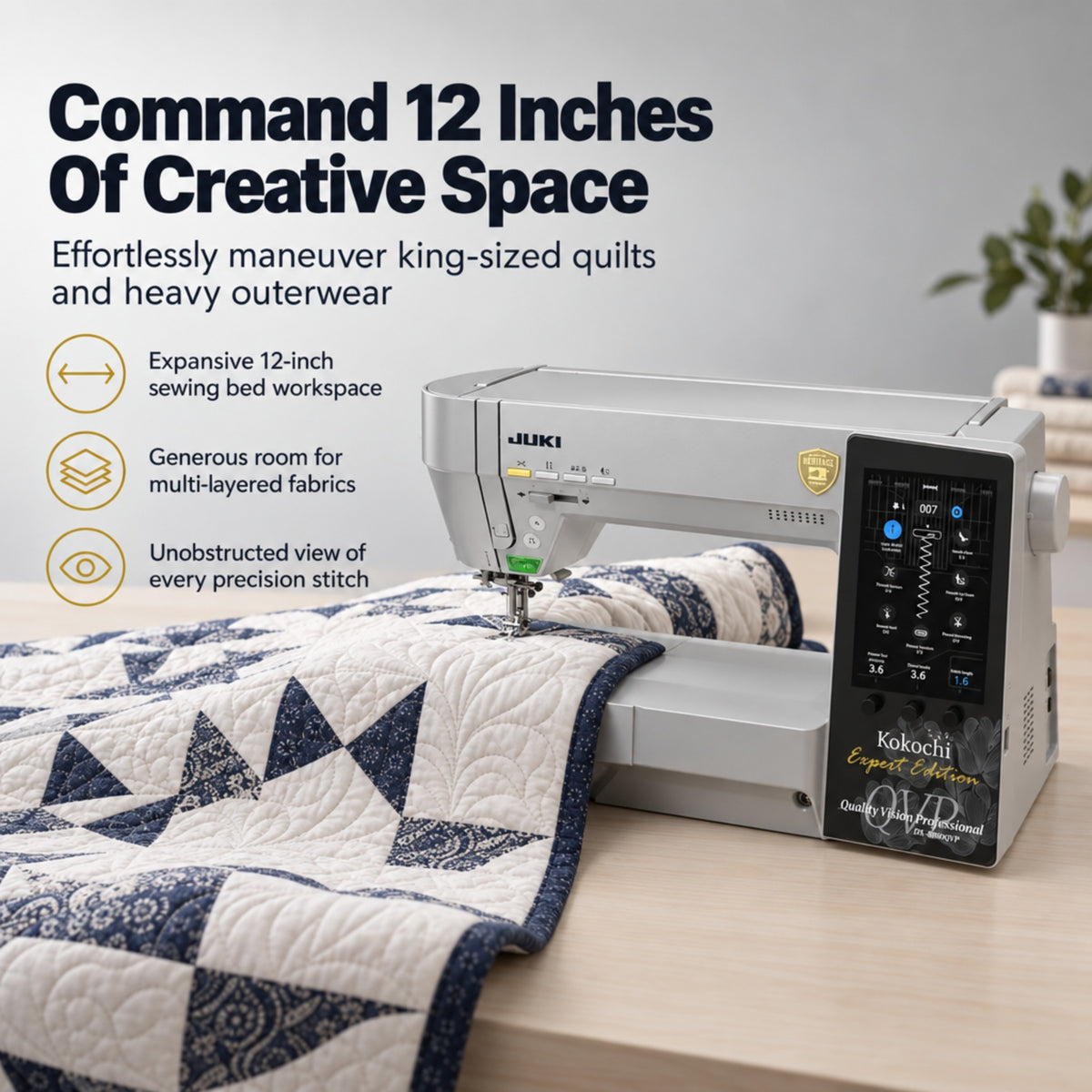

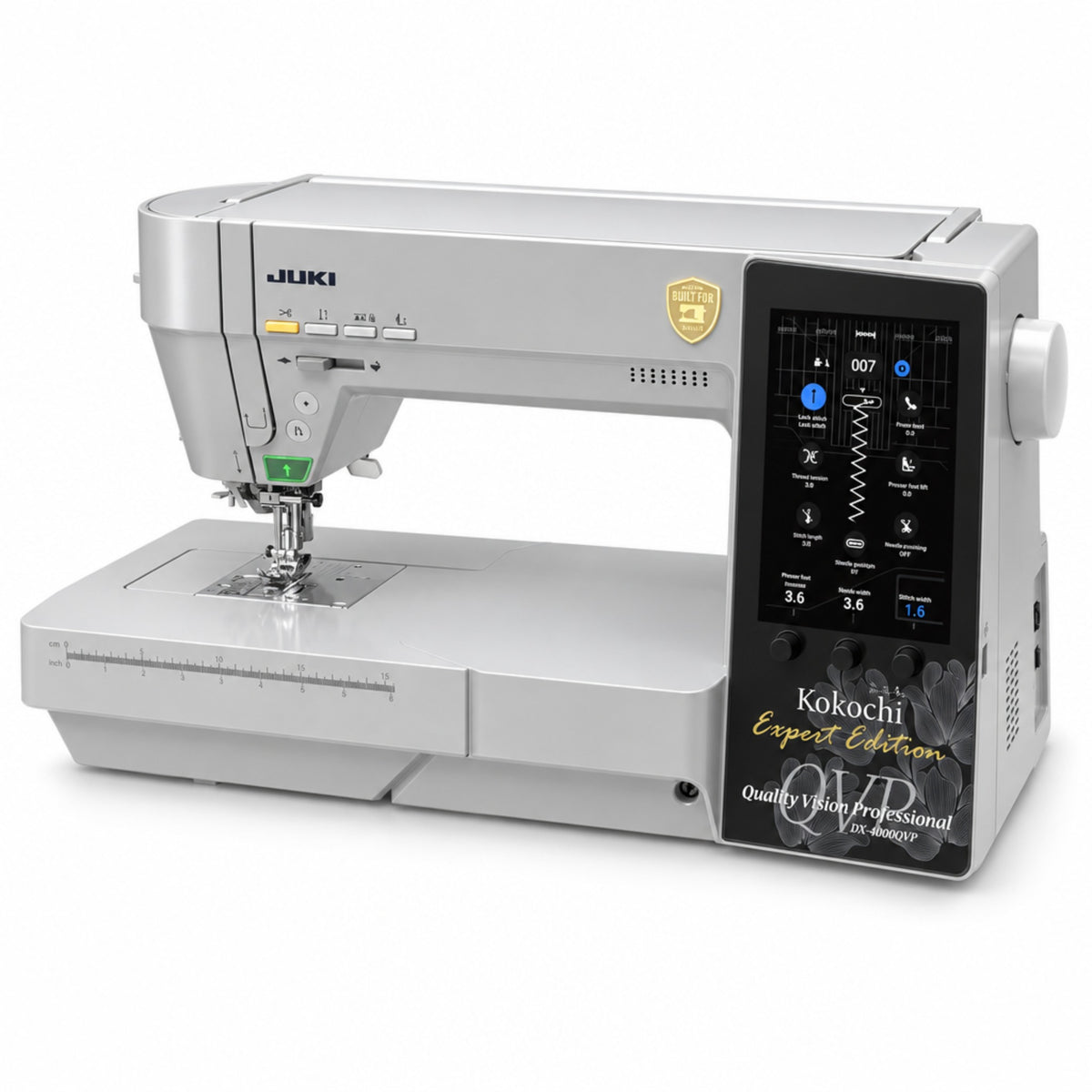

Expert insights for the JUKI DX-4000QVP Expert Edition Sewing Machine
This machine is great if you:
- Want a high-performance machine
- Sew and quilt regularly
- Need speed and control
- Work with different fabrics
- Want consistent stitch quality
This machine may NOT be ideal if you:
- Only do basic sewing
- Prefer mechanical machines
- Need a lightweight option
- Are a beginner
- Have a lower budget
Why Many People Love This Machine
This machine is fast and reliable. It handles different fabrics well and gives consistent results, even during longer sessions.
Popular Projects for This Machine
"A good option if you want a powerful machine for regular sewing and quilting work."
Features
User-focused Operability

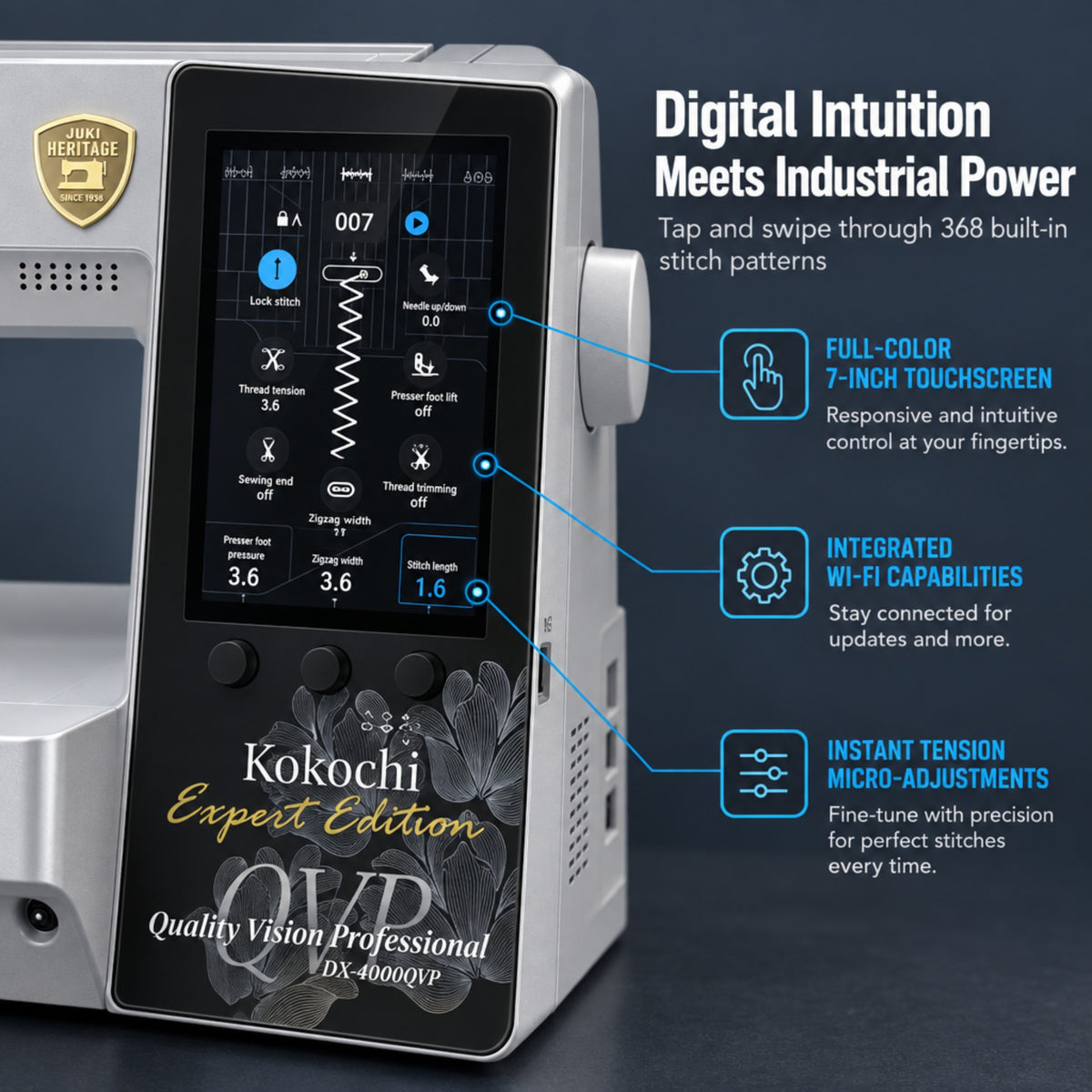

7" color touch panel can be operated like a smartphone.
Just like on a smartphone or tablet, intuitively select and edit patterns, change various settings, and view operation videos. With only the most important and frequently used operations available, the layout and user friendliness of icons, etc., are revolutionary.
Visualization of Adjustment Values【NEW】
Changes in adjustments can be visualized with animations.
Adjust the thread tension by sliding your finger over the scale in the touch panel.
The animation changes according to the adjustment value.
1. Thread tension (Weaker)
2. Thread tension (Stronger)
Store Recall Stitch Patterns【NEW】
The last 10 stitches are stored in the history.
View illustrations of stitch patterns in the history to easily identify and select them with a single touch.
The settings that differ from the defaults are highlighted in blue.
Adjust the Presser Foot Pressure with the Easily Accessible Dial【NEW】
In addition to the popular stitch width and length adjustments, easily adjust the presser foot pressure with a dial below the touch panel. Being able to change the presser foot pressure while sewing allows you to immediately respond to stretched stitching and uneven feeding.
Sew fabrics like knit, fleece, neatly and more without stretching by adjusting the presser foot pressure.
(Above) Before adjustment
(Below) After adjustment
Notification before Bobbin Thread Runs Out【NEW】
An optical sensor will notify you when the bobbin thread reaches a certain amount. Sew with confidence without worrying about the remaining amount of bobbin thread.
SPEC / ACCESSORIES
| Control system（Arm size） | Computer (Arm Size 305㎜） |
|---|---|
| Dimensions | 602(W) x 310(H) x 264(D) mm |

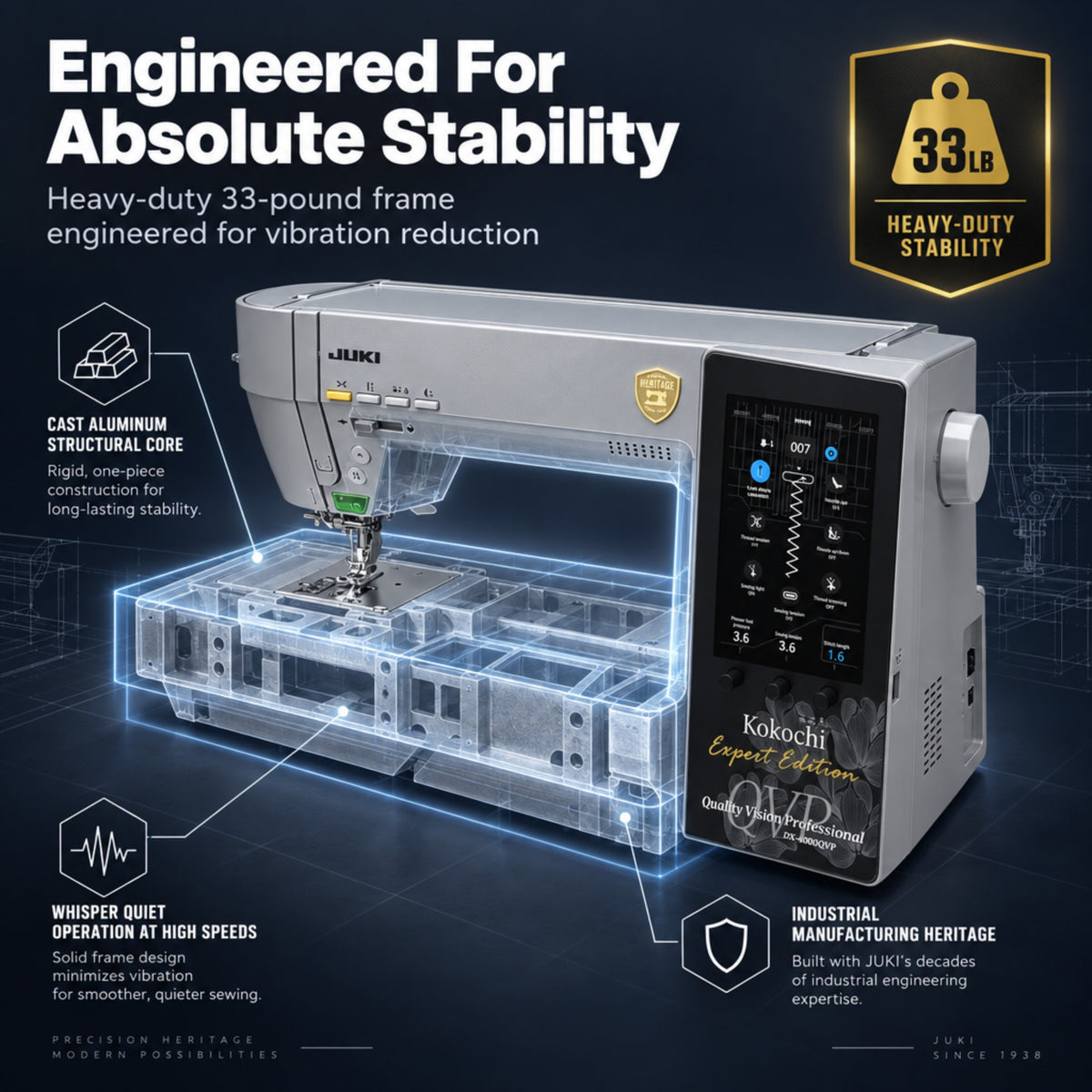

| Weight | 14.9kg (32.1lbs) |
| Maximum sewing speed | 1,050 sti/min |
| Number of stitch patterns | 368 and Alphabetic/numeric fonts:4 Japanese letters font: 1 |
| Buttonhole | Automatic (sensor system) with clamping plate Cutting width adjustment Buttonhole Length: 0.7 - 3.2cm |
| Direct stitch pattern selection | - |
| Start/stop button | Green: Ready to start and/or while sewing Red: Not ready to start Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing |
| Adjustable starting / reverse stitch speed | ✓ |
| Auto thread trimming | ✓ |
| Thread cutter | ✓ |
| Automatic needle threader | One hand |
| Thread tension system | Automatic (digital) |
| Needle up/down button | ✓ |
| Low-speed inching sewing | ✓ Press needle up/down button continuously |
| Needle stop position | Down |
| Needle stop position switching | ✓ |
| Lock stitch | Reverse stitch (Button system) Reinforcement stitch (Button system) Automatic lock stitch, thread trimming and presser foot lifting |

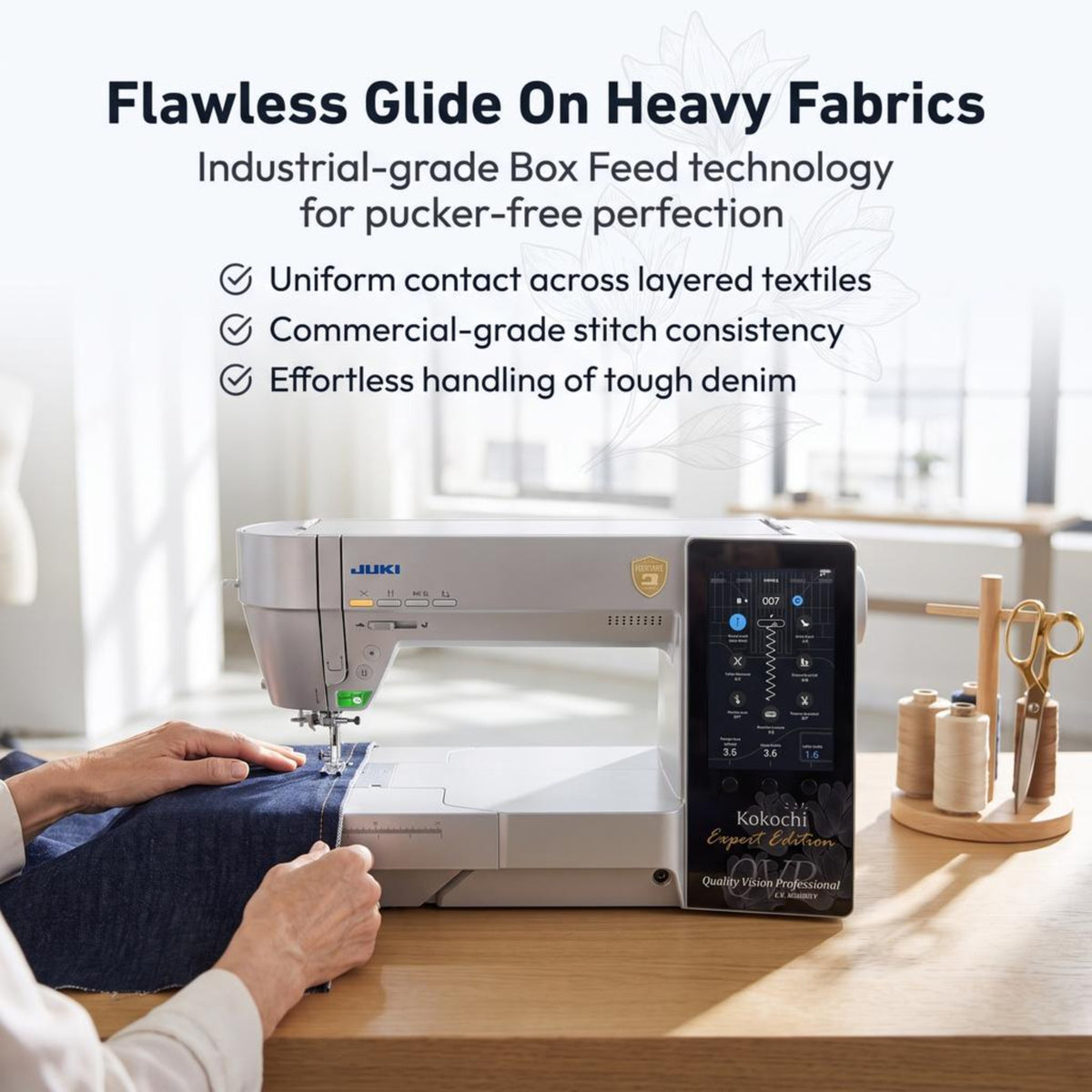

| Feed mechanism | 7 point feed dog BOX Feed |
| JUKI Smart Feed (dual feed function) | ✓ |
| Presser foot pressure adjustment | Stepless adjustment (digital) Dial system / LCD numerical display |
| Auto presser foot lift system | ✓ |
| Micro-lifter | No presser foot pressure adjustment (Micro-lifter) |
| Function to straight-line stitching | Staright throat plate, straight feed dogs and straight presser foot |
| Presser foot lift (1 step/2 steps) | Button system: 6 ・ 8 ・ 10mm / 12mm Lever system: 6mm / 12mm Knee-lifting lever system: 6 ・ 8 ・ 10mm / 12mm |
| Stitch width | Dial system / LCD numerical display Max. 7mm |
| Supported languages | 16 languages English / English(UK)/ Spanish / Italian / French / Dutch / German / Russian / Danish / Portuguese / Czech/ Swedish / Finnish / Norwegian / Greek / Japanese |
| Operation support | Operation guide Youtube (Wireless LAN connection) |
| Accessories (presser feet) | Standard presser foot (A) Straight presser foot (S) Zipper presser foot (B) Overcasting presser foot (C) Blind stitch presser foot (D) Buttonhole presser foot (E) Manual buttonhole presser foot (I) Open toe presser foot (O) Patchwork presser foot (P) Quilt presser foot (for the ruler) (Q) Edge sewing presser foot (R) 7mm guide foot (7) or 1/4"" guide foot (1/4) Rolled hemming presser foot Quilt presser foot (zigzag type) |
Standard Presser Foot
It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.(Matte type and for JUKI Smart Feed.)
Overcasting Presser Foot (Overedge Foot)
Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 3-point zigzag.
Buttonhole Presser Foot
You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.
Decorate Stitch Presser Foot (Manual BH Presser Foot/Satin Stitch Foot)
The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.(Matte type and for JUKI Smart Feed.)
Zipper Presser Foot
Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.(Matte type and for JUKI Smart Feed.)
Blind Stitch Presser Foot (Blind Hem Foot)
By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the needle entry point before sewing. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.
Rolled Hemming Presser Foot
The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem. This presser foot can be used on light-weight to medium-weight fabric. Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.
Straight Stitch Presser Foot
Since this presser foot is narrow, smooth handling is achieved while sewing edges and curves.(Matte type and for JUKI Smart Feed.)
Patchwork Presser Foot
Always ensure needle is set to center straight stitch. Align the edge of the fabric with the outer presser foot guide for a seam allowance of 1/4" or with the inner presser foot guide for a seam allowance of 1/8". There are also marks at a 1/4" spacing at the front and back of the presser foot, allowing you to see the width of the seam allowance before and after needle entry.(Matte type and for JUKI Smart Feed.)
Button Attaching Presser Foot
Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button. To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.
Zipper Presser Foot
Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.
Narrow Zipper Foot
Since the width of the narrow zipper foot is small, the operator can easily observe the material during sewing. It has two (right and left)recesses on its undersurface, you can sew higher portions of the material while avoiding those portions. Both the right and left sides of the zipper can be sewn only by changing the position of the needle base line. The mounting portion of this presser foot is placed at its center, so the stable feed of the material is ensured.
Invisible Zipper Foot
Since this presser foot lifts the teeth of the zipper as they are fed through the groove along the bottom of the presser foot, you can closely sew along the edges of the zipper teeth.
Smooth Presser Foot
This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.(for JUKI Smart Feed.)
Smooth Presser Foot
This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.
Roller Foot
The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.
Hemming Presser Foot for Zigzag
The spiral guide of this presser foot rolls the edge of the fabric while the narrow rolled hem is sewn with a zigzag stitch. This presser foot can sew thin and solid edging.
Straight Stitch Presser Foot
Since this presser foot is narrow, smooth handling is achieved while sewing edges and curves.(Normal type and for JUKI Smart Feed.)
