Features

Box Feed - JUKI Industrial Sewing Machine Technology

The JUKI industrial "BOX Feed" system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.

Thick denim folded into three layers for a flat fell seamEvenly sews thick fabrics effortlessly.

The BOX Feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.

Stitching thin fabrics
No fabric shrinkage even sewing on light weight cotton.

Stitching towel fabrics
Evenly feeds hard-to-sew high pile fabrics.

Straight Stitch Slide Plate【NEW】

Simply slide the front lever to switch to a single needle hole! Sew the lightest fabrics with perfect needle permeation. The single needle plate will not allow fabrics to be pushed into the needle hole. Free motion stitch with precision and perfection. Sew with confidence, when the single needle hole plate is set, only the straight stitch patterns can be selected.

Needle hole for straight stitches

Normal needle hole

Float Function Prevents Uneven Seams【NEW】

By pressing the float button, you can sew with the presser foot slightly raised. By raising the presser foot to float you can sew fabrics without pushing layers or creating uneven seams. The height of the presser foot can be set in increments of 0.1mm, allowing delicate adjustment according to the materials.

You can sew with the presser foot slightly floated.

1.Using the float function,2.Not using the float functionPressure on layers create uneven seams.*The standard presser foot is used in both cases.

The height of the presser foot can be set in increments of 0.1mm, allowing delicate adjustment according to the materials.

Easily Create and Enjoy Beautiful Buttonholes with JUKI's Combination of industrial Background and Modern Technology

Use the buttonhole sensor system for optimal feed on all types od fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.

Buttonhole

The buttonhole sewing presser foot contains a clamping plate, so you can confidently feed fabrics by holding them between the clamping plate and the presser foot.

◎16 types of buttonholes are available for your needs1. Standard, 2. Keyhole, 3. For knit, 4. Decorative

Cutting width adjustment of the buttonhole
Now it is possible to adjust the cutting width in 3 steps.

Customize Your Machine with even more New Functions!

Easy-to-use Quick Select Buttons

・Start/Stop
・Reverse stitch
・Lock stitch
・Thread trimming
・Needle up/down
・Presser foot auto lift

Foot Switch Function【NEW】

Allowing for greater versatility, JUKI now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.

Presser Foot Pivot Function【NEW】

When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing.*This function can also be switched off.

Setting of the Presser Foot Lifting After Thread Trimming【NEW】

Because the presser foot is automatically lifted after automatic thread trimming, you can quickly remove fabrics.*This function can also be switched off.

Adjusting Starting / Reversing Stitch Speed【NEW】

You can adjust the starting and reverse stitch speed between three steps of fast, normal, and slow.

Create and Design with Precision and Perfection

Lock Stitch【NEW】

For the lock stitch at the start and the end of sewing, you can choose two kinds of "1. Reverse Stitch" and "2. Lock Stitch". If you press the lock stitch button in the middle of sewing a pattern, the machine stops after sewing one cycle of the pattern.

Low-Speed Inching Sewing【NEW

By pressing and holding the needle up/down button, you can sew slowly. Sew corners, stops and starts with precision.

Speedy Straight Sewing【Speed-up

With a maximum straight sewing speed of 1,050 stitches/min, you can sew fast.

Knee-Lifting Lever

Presser foot can be raised and lowered by the knee-lifting lever. Presser foot lift is up to 0.5" (12mm) when the lever is used. When the foot is raised to the maximum height, you can also switch it back from automatic operation (button) to manual operation (lever).

Quick Preparation Makes Sewing a Breeze

Automatic Needle Threader

Simply place the thread in the guide and lower the lever. Easily and quickly thread a needle with one hand.

Bobbin Winder with independent Motor

To set up the bobbin for winding, simply wind some thread around the bobbin and pass it through the guide. You can wind the bobbin thread every time, and also use a cutter after winding.

Quick Bobbin Preparation

The bobbin preparation is easy. Just follow the guide and it is not necessary to pull up the bobbin thread.

Enjoy the Freedom to Create and Design with Ease and Satisfaction

Elongation Pattern

Change the overall length without changing the sewing density of pattern.

Stitch Adjustment Dial

Use the easy-to-operate dial to adjust the width and length of the stitch. The dial also lets you make slight adjustments while sewing zigzag stitches.

Free Motion

Flip the switch and drop your fed dogs. Enjoy both straight stitch and specialized zig zag for free motion. Adjust the presser foot height for easy movement. Enjoy the freedom of Free Motion.

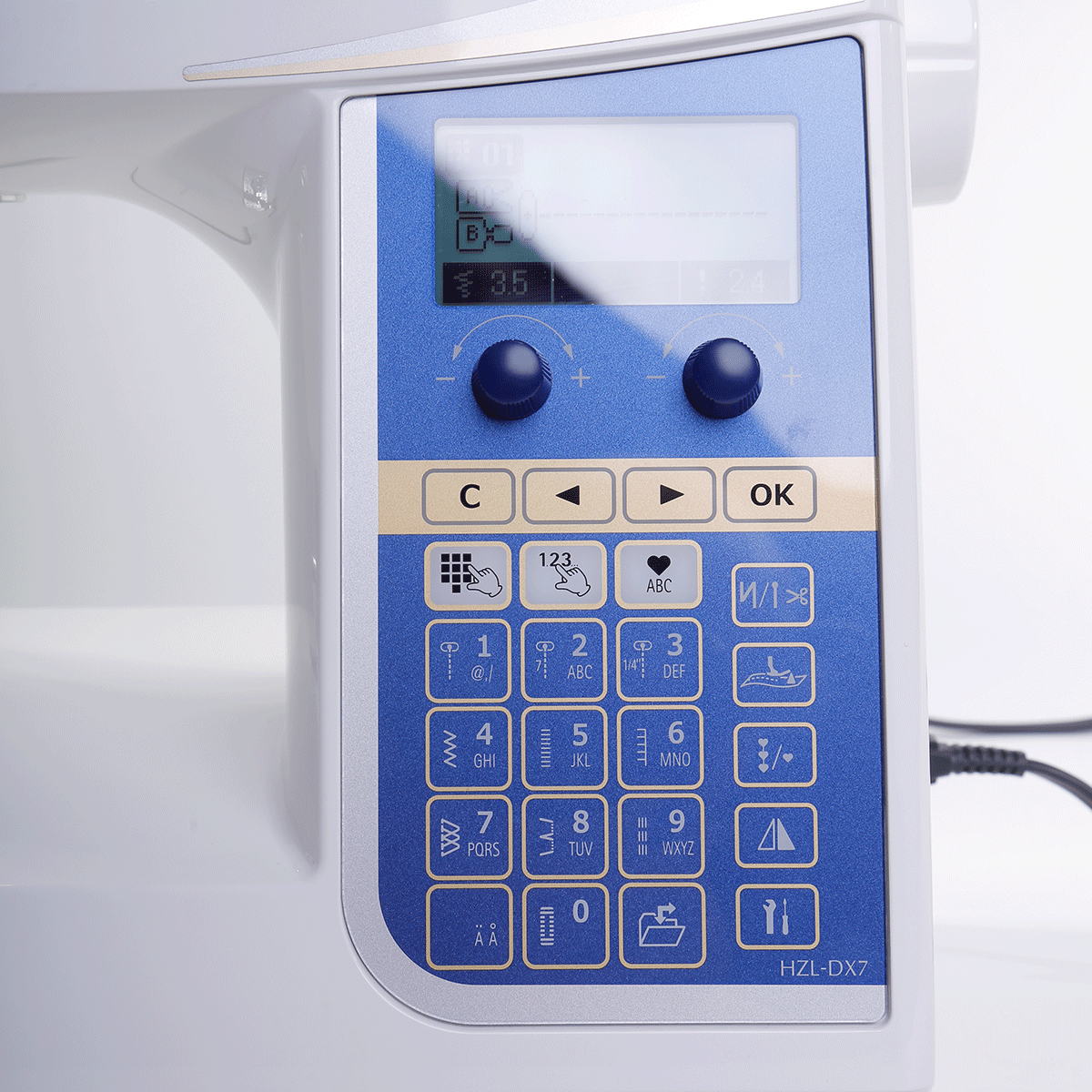

Direct Stitch Pattern Selection

Often-used sewing patterns such as straight lines, overcast stitches, and zigzag patterns can be quickly selected via direct buttons. You can also adjust the sensitivity of the touch panel.

Large Sewing Space

Enjoy extra space and comfort by adding the accessory table while sewing or quilting.

One-Point Patterns

The decorative patterns can be sewn as one point patterns. It is also lovely create an original tag by combining these patterns with the character stitches.

Character Stitch

The machine includes three alphabetic/numeric fonts. Up to ten often-used patterns such as names and initials can be saved in the memory.

Corner Sewing of Applique

The stitch width of the needle can be set to automatically and gradually change to achieve a stitch that gives a beautiful finish even to the corner of an applique or the start /end of a line of sewing. By adjusting the width and length, you can also control the angles of your design.

Lace Like Patterns

Sewing several patterns in parallel creates lovely lace-like stitches. You can enjoy the combination of patterns that give the image of dedicated lace braid.

SPEC / ACCESSORIES

INCLUDEDOPTIONAL ACCESSORIES STITCH PATTERNS SEWING SAMPLES

Standard Presser Foot

It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.

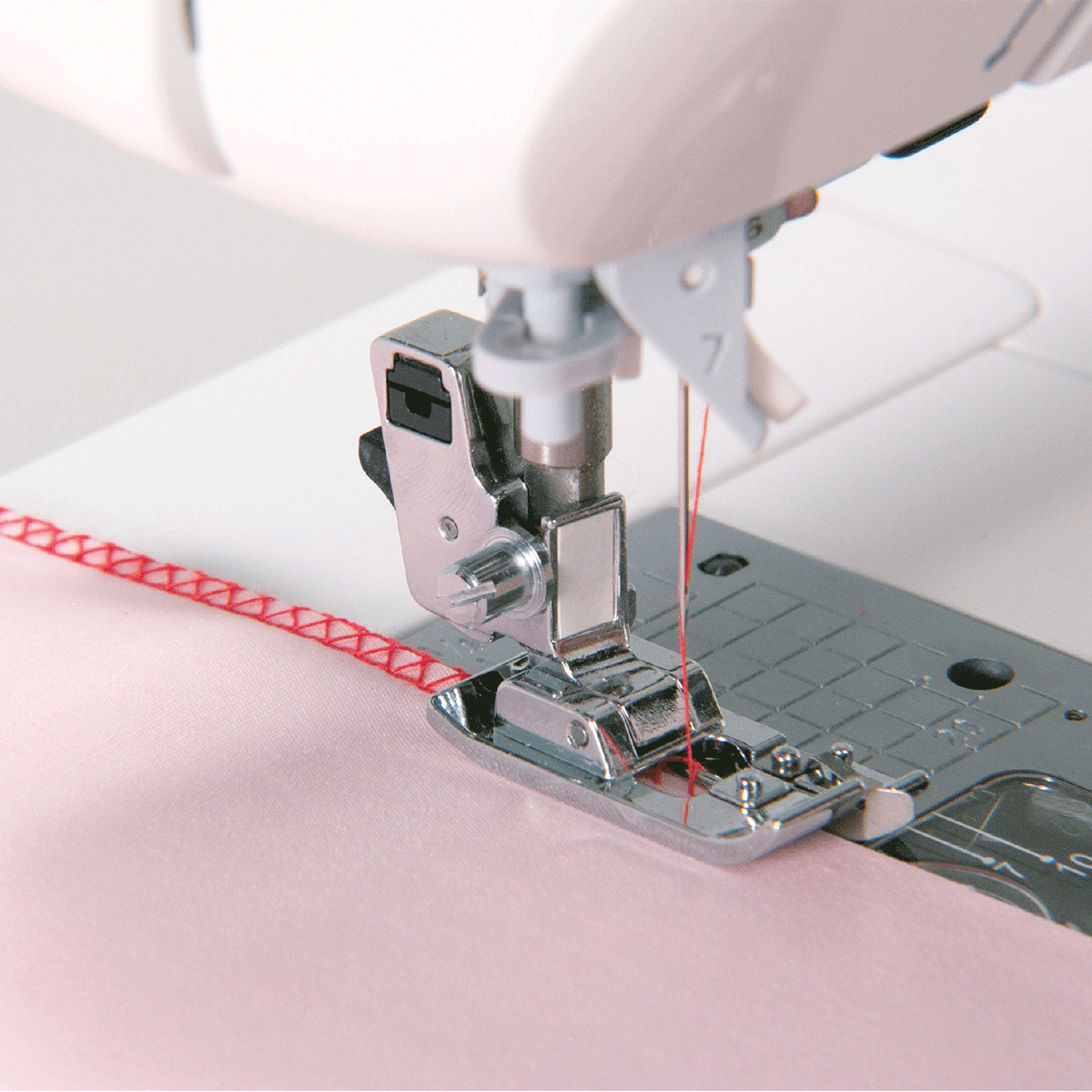

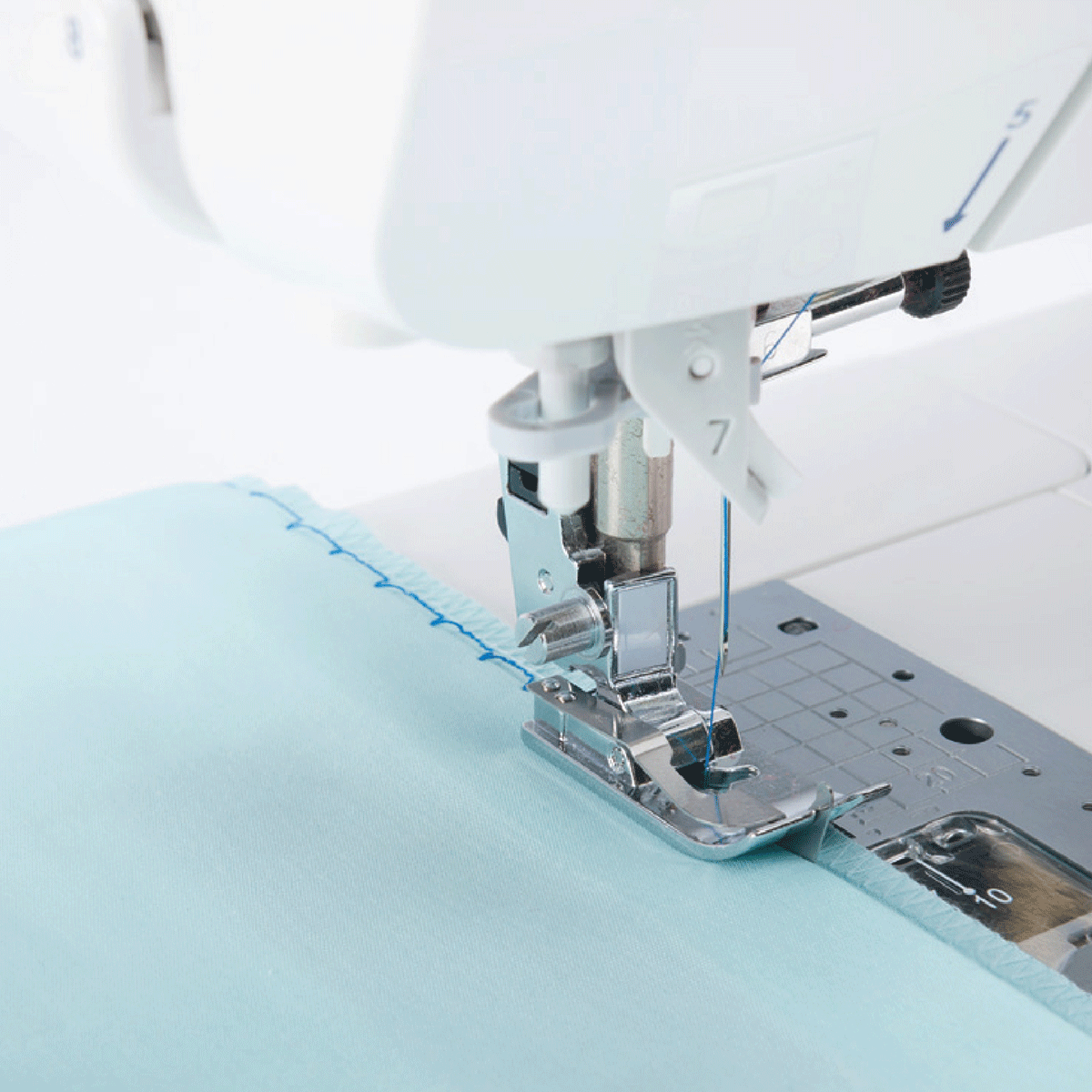

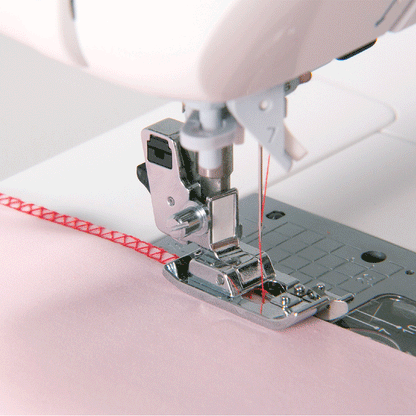

Overcasting Presser Foot (Overedge Foot)

Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 3-point zigzag.

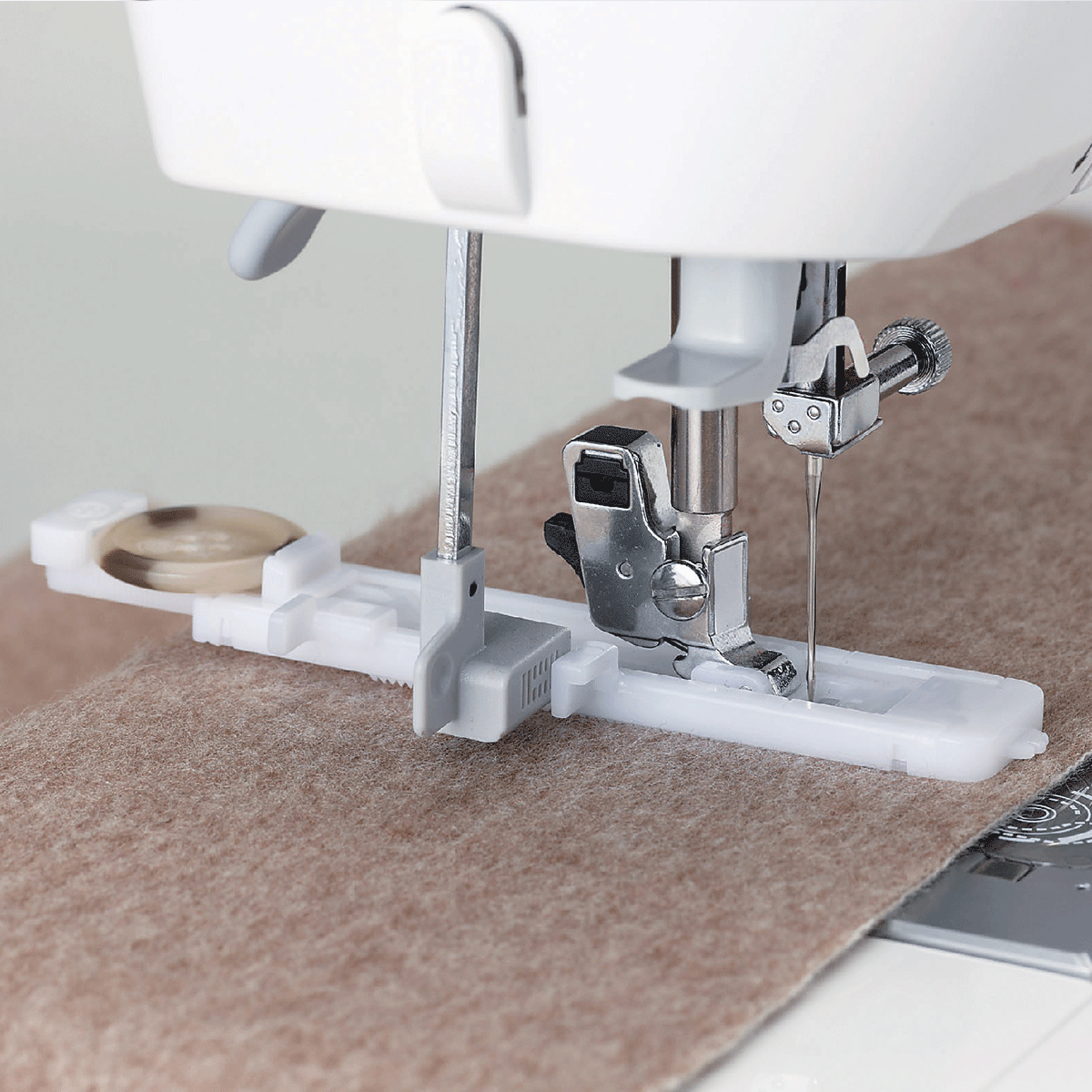

Buttonhole Presser Foot

You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.

Decorate Stitch Presser Foot (Manual BH Presser Foot/Satin Stitch Foot)

The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.

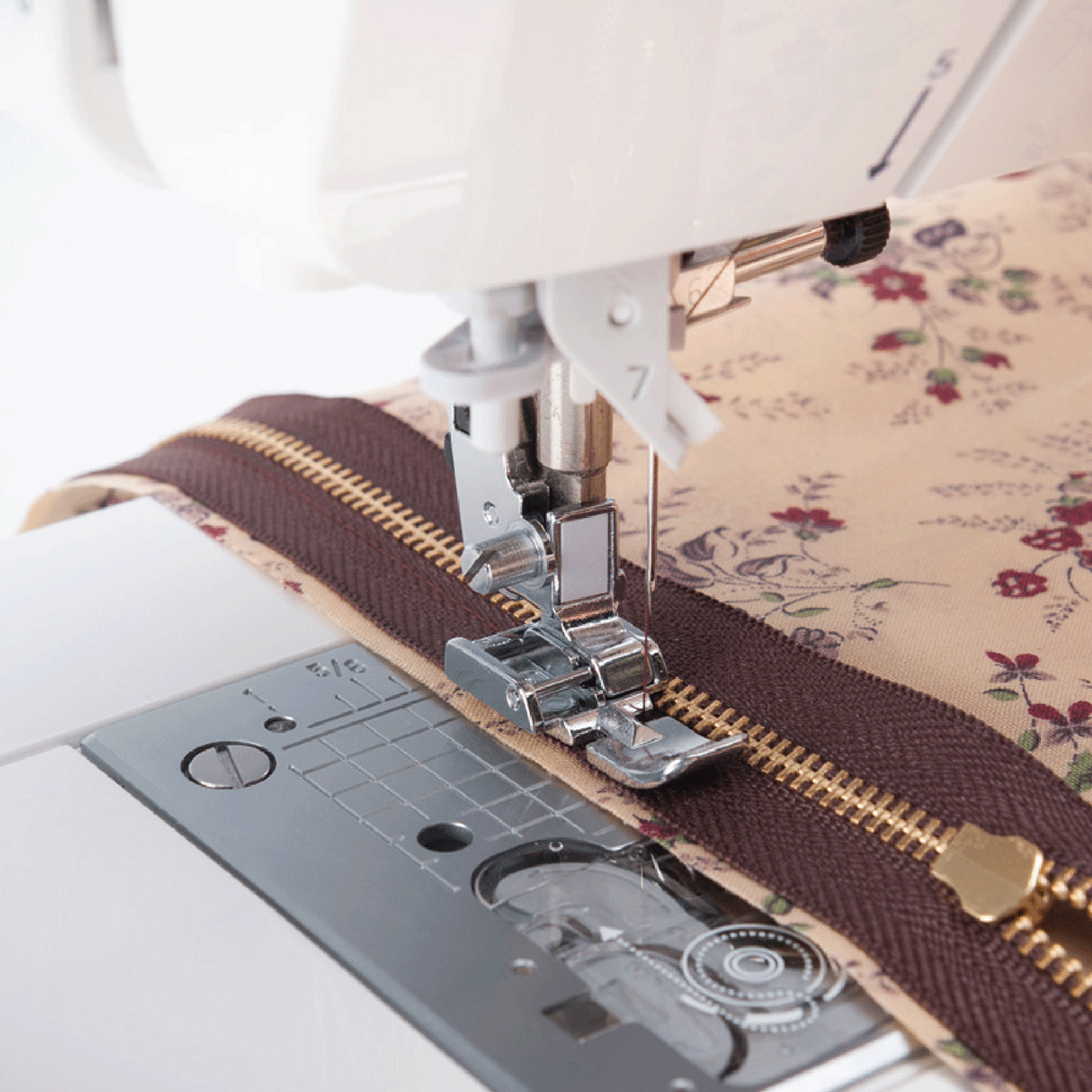

Zipper Presser Foot

Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.

Blind Stitch Presser Foot (Blind Hem Foot)

By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the needle entry point before sewing. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.

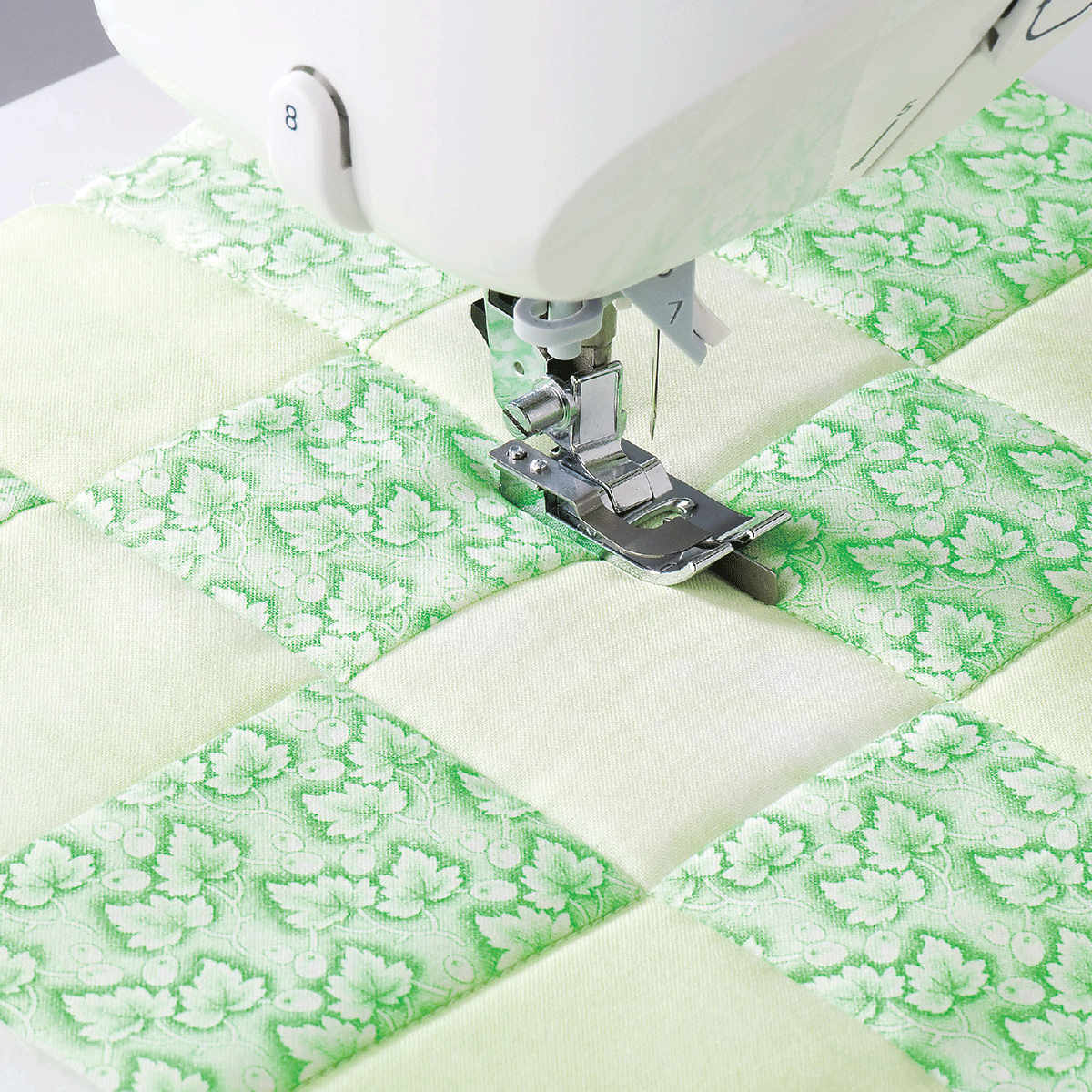

Ditch Sewing Presser Foot (Edge Sewing Presser Foot)

The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Normal type )

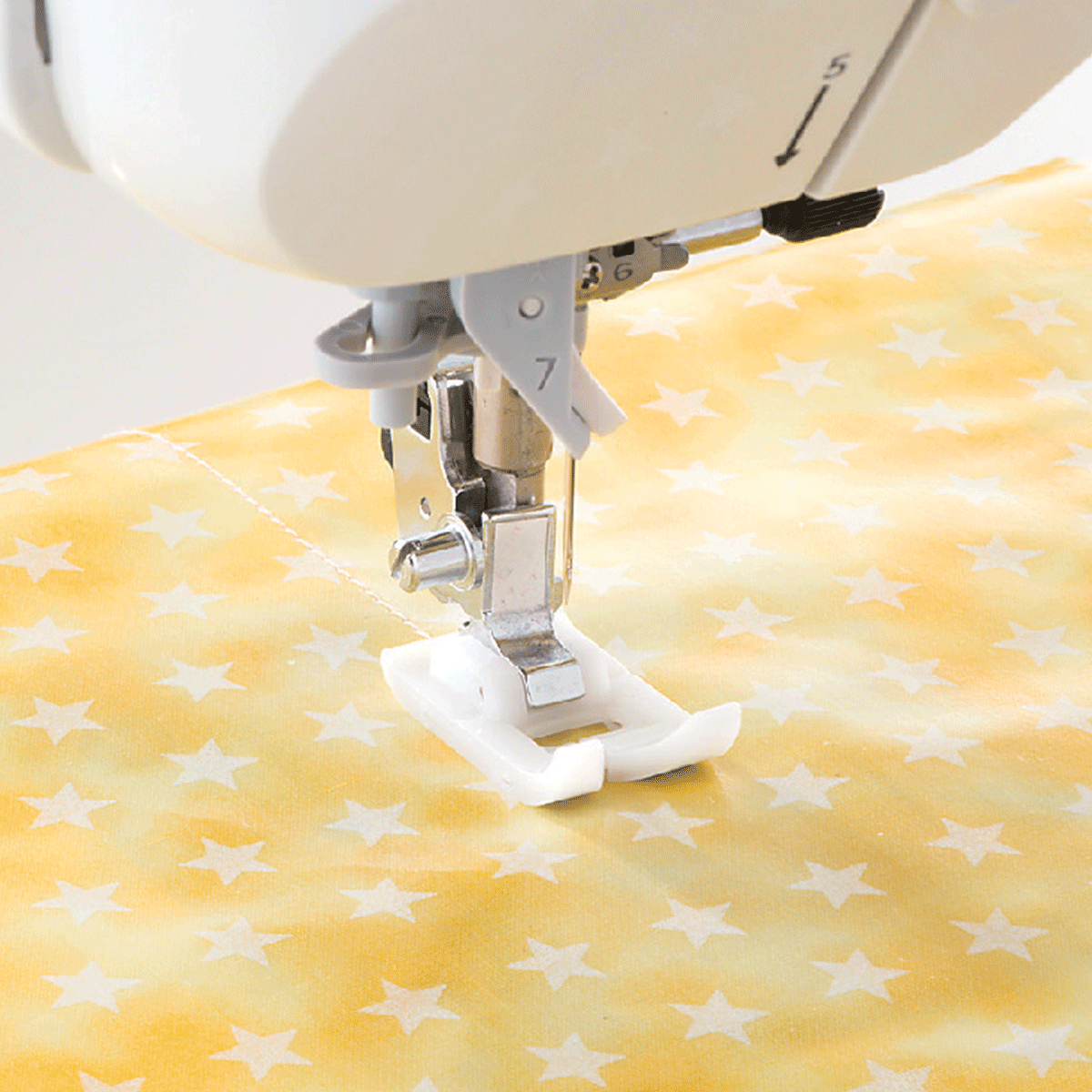

Smooth Presser Foot

This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.

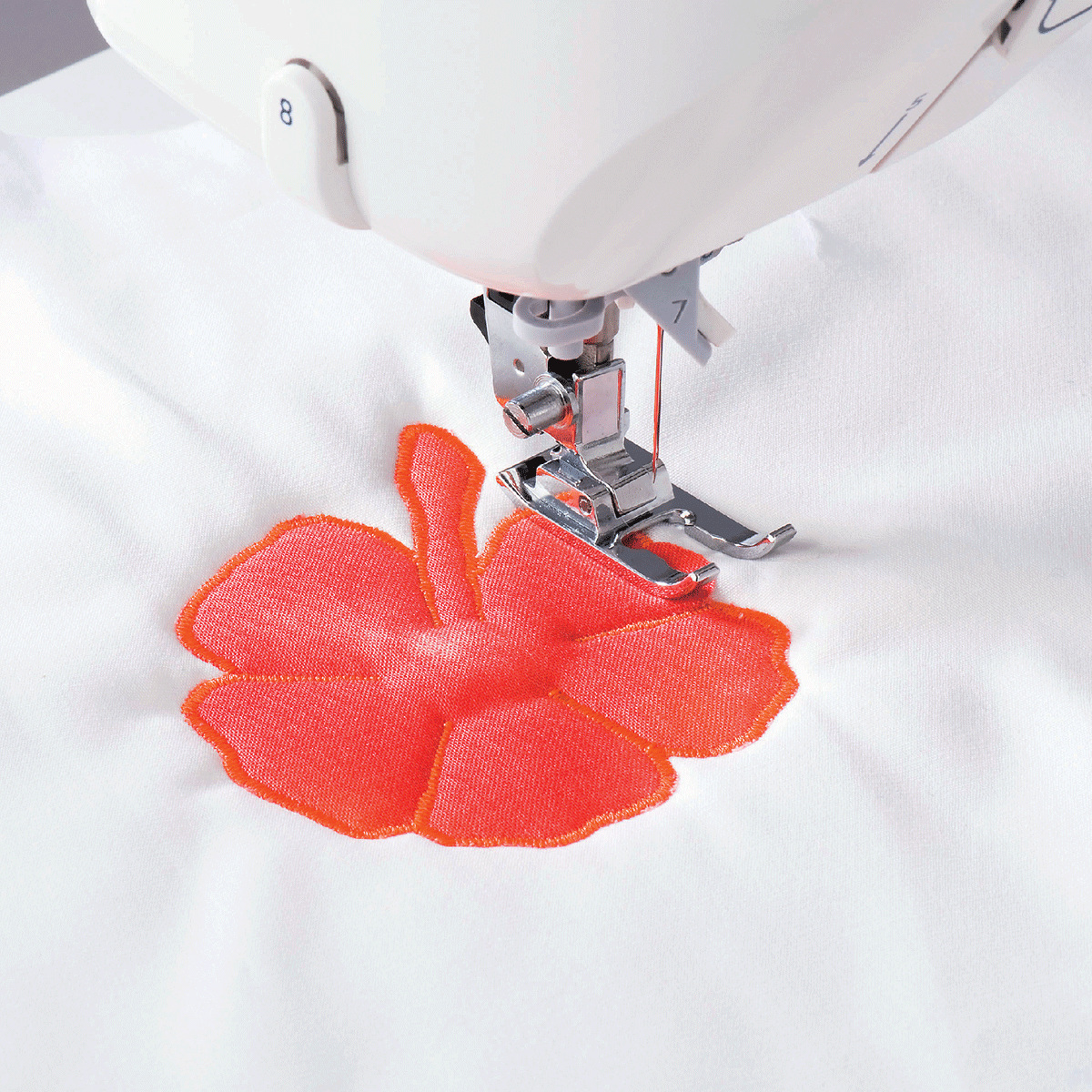

Open Toe Presser Foot

The wide opening at the front of this presser foot makes appliques and designs easy to see, which is useful for curvy decorative stitching. The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, so the fabric will be smoothly fed.

Quilt Guide

Insert this guide into the hole of the presser foot holder or the walking foot, and then sew while lightly tracing this guide along stitching. Adjust the spacing of the stitching by changing how far this guide is inserted. You can use this guide inserting from either the right side or the left side.

Twin Needle

For beautiful decorative stitches two threads can be a perfect addition. Also it is used for sewing pintucks with the pintuck feet. Set the sewing machines with 2 needle settings with optional functions. Not all stiches are approved for twin needle design.

Auxiliary Spool Pin (Additional Spool Pin)

Use this spool pin with a thread spool for twin needle sewing, spare machine threading or bobbin winding.

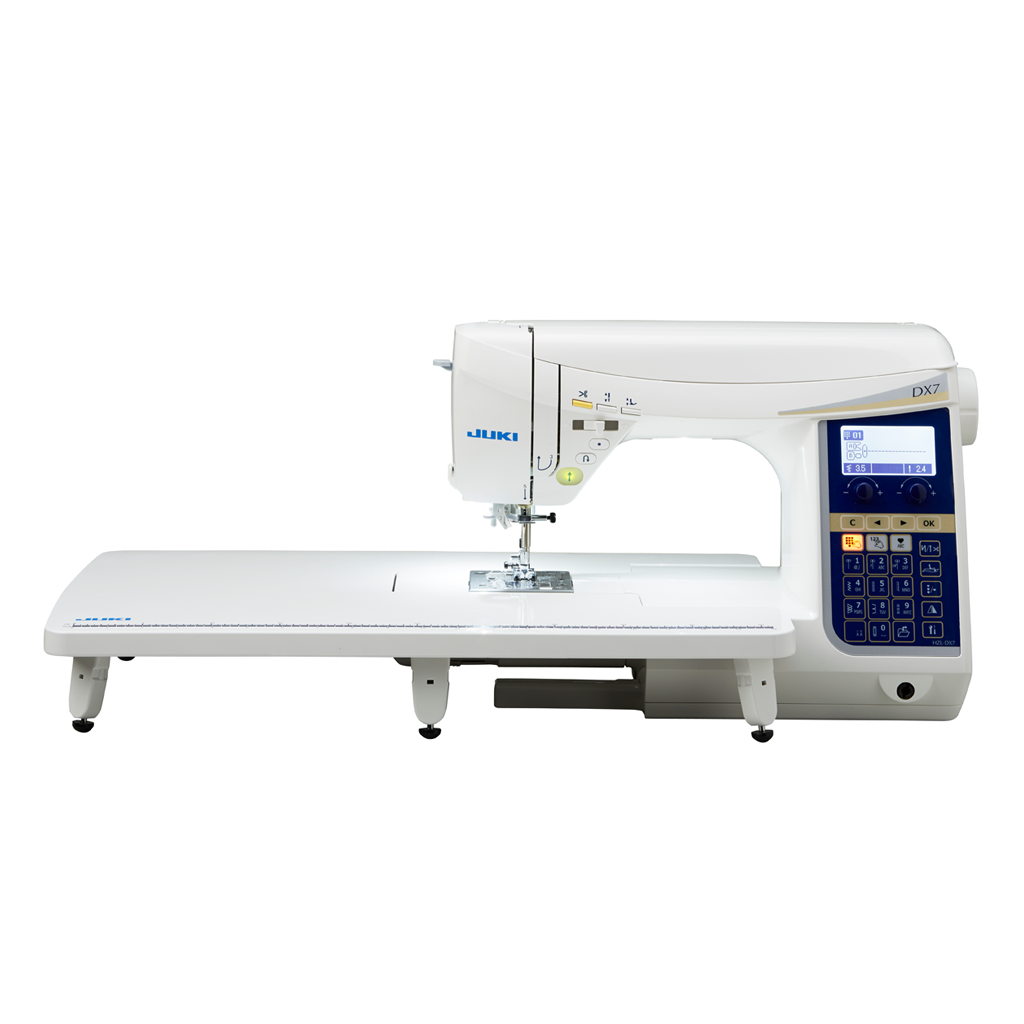

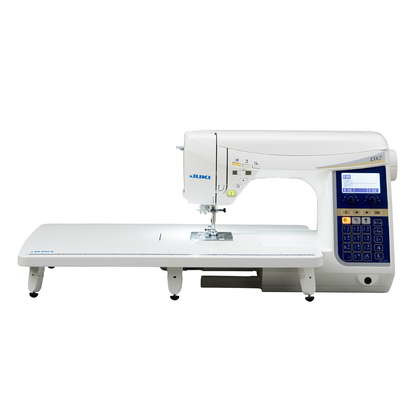

Wide Table

After removing the auxiliary bed, this table can easily be installed by fitting it into place.

Foot Controller with Foot Switch Function

Controlling the sewing machine with your foot leaves both of your hands free while sewing. You can trim threads and or do another operations by pressing on the another switch of the foot controller.

Knee-lifting Lever

Using your knee to push the lever to the right raises the presser foot,and when you return it will lower the presser foot.

Bobbin（1pc）

Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.

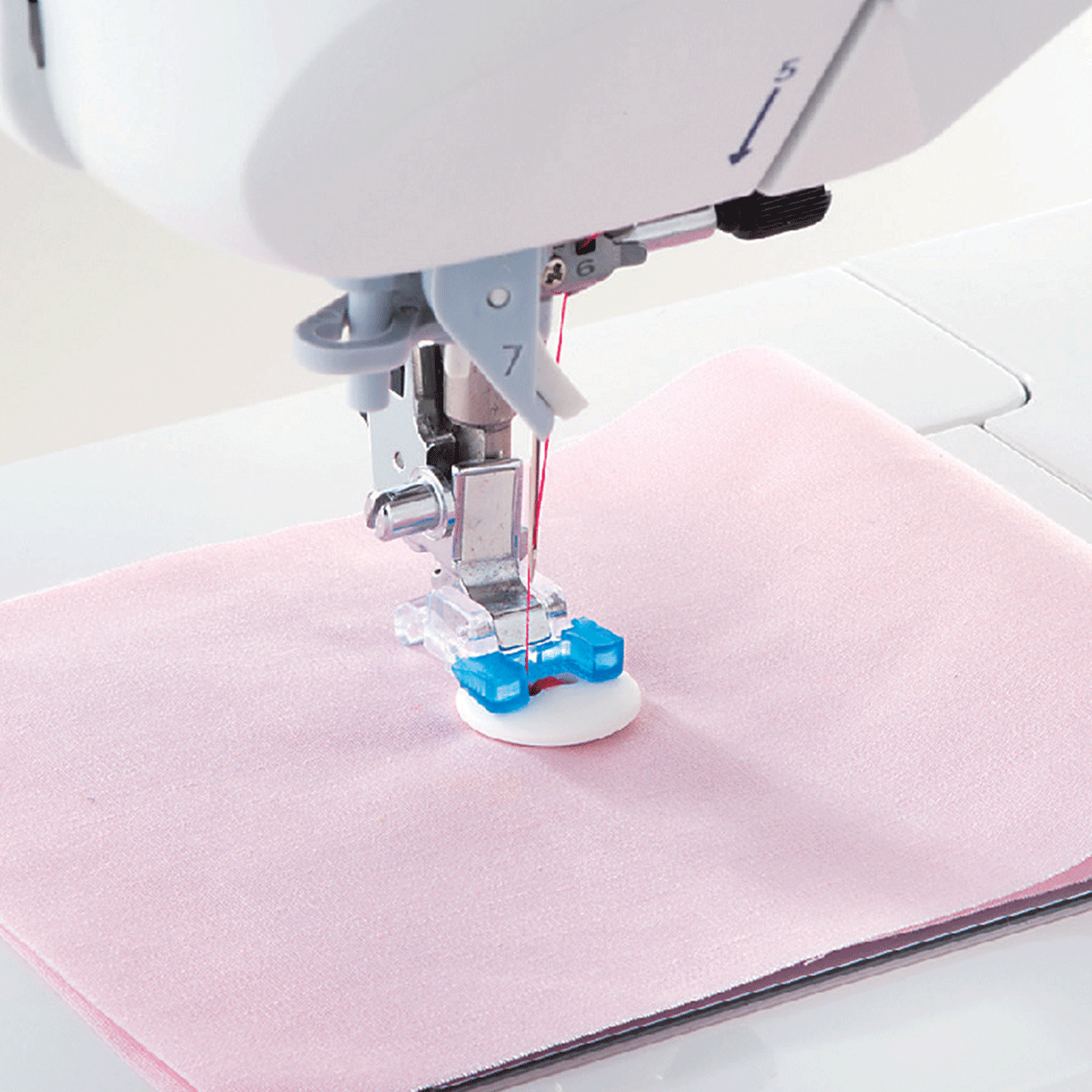

Button Attaching Presser Foot

Be sure to first lower the feed dog so the fabric is not fed and adjust the zigzag width so the needle enters the holes in the button. To create a shank for the button, insert an awl or another similar object into the groove in the presser foot before sewing on the button so that the stitching will create a loop suitable for the thickness of the fabric.

Adjustable Zipper Foot

The position of the adjustable zipper presser foot can be changed over to the right and left of the needle to allow the sewing machine to sew the material while avoiding its thicker part such as a zipper.

Narrow Zipper Foot

Since the width of the narrow zipper foot is small, the operator can easily observe the material during sewing. It has two (right and left)recesses on its undersurface, you can sew higher portions of the material while avoiding those portions. Both the right and left sides of the zipper can be sewn only by changing the position of the needle base line. The mounting portion of this presser foot is placed at its center, so the stable feed of the material is ensured.

Invisible Zipper Foot

Since this presser foot lifts the teeth of the zipper as they are fed through the groove along the bottom of the presser foot, you can closely sew along the edges of the zipper teeth.

Smooth Presser Foot

This presser foot, made of a fluorocarbon resin, smoothly feeds even vinyl-coated material and leather fabrics which may stick to a standard presser foot and are difficult to sew.

Roller Foot

The rollers at the front and back of this presser foot prevent it from sticking to or bunching fabrics for perfect seams.

Rolled Hemming Presser Foot

The spiral guide of this presser foot rolls the edge of the fabric to create a narrow rolled hem. This presser foot can be used on light-weight to medium-weight fabric. Since the fabric can be uniformly folded twice without ironing, this presser foot is useful for finishing ruffles and handkerchief edges.

Hemming Presser Foot for Zigzag

The spiral guide of this presser foot rolls the edge of the fabric while the narrow rolled hem is sewn with a zigzag stitch. This presser foot can sew thin and solid edging.

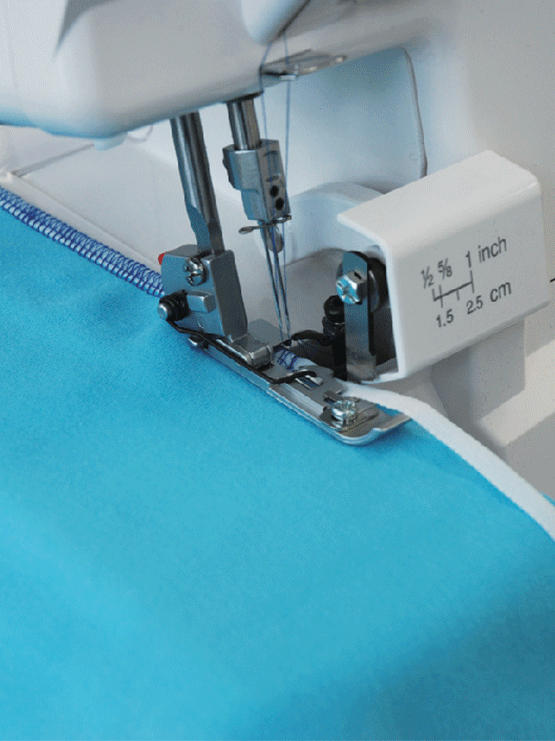

Binder Presser Foot

After tape with a width of about 0.75" to 1.0" (22 to 25 mm) is passed through the guide, this presser foot creates double-fold tape with a width of about 0.2" (5 mm) and sews it to bind the fabric. Single-fold tape with a width of about 0.4" to 0.5"(10 to 13 mm) can also be used. You can move the guide to the left or right to adjust the needle entry point.

Pintuck Foot Wide

When sewing pintucks in parallel, the 7 slits on the bottom of the presser foot can be used as a guide. Pintucks are suited to light-weight soft materials. Pintucks of stable shape can be produced while putting a cord in each pintuck.

1/4“ Guide Foot

Always ensure needle is set to center straight stitch. Align the edge of the fabric with the presser foot guide to easily sew with a seam allowance of 1/4" (6.4 mm). Since the needle drops into a small round opening, the seam is stabilized to create a perfect straight stitch.

Pearl Attaching Presser Foot

Pass the strand of pearls or beads up to a diameter of 4 mm through the dome-shaped groove in the center of the presser foot, and then sew with a zigzag stitch. This presser foot can also be used for sewing on thick cording, braiding or piping cord, even on curves.

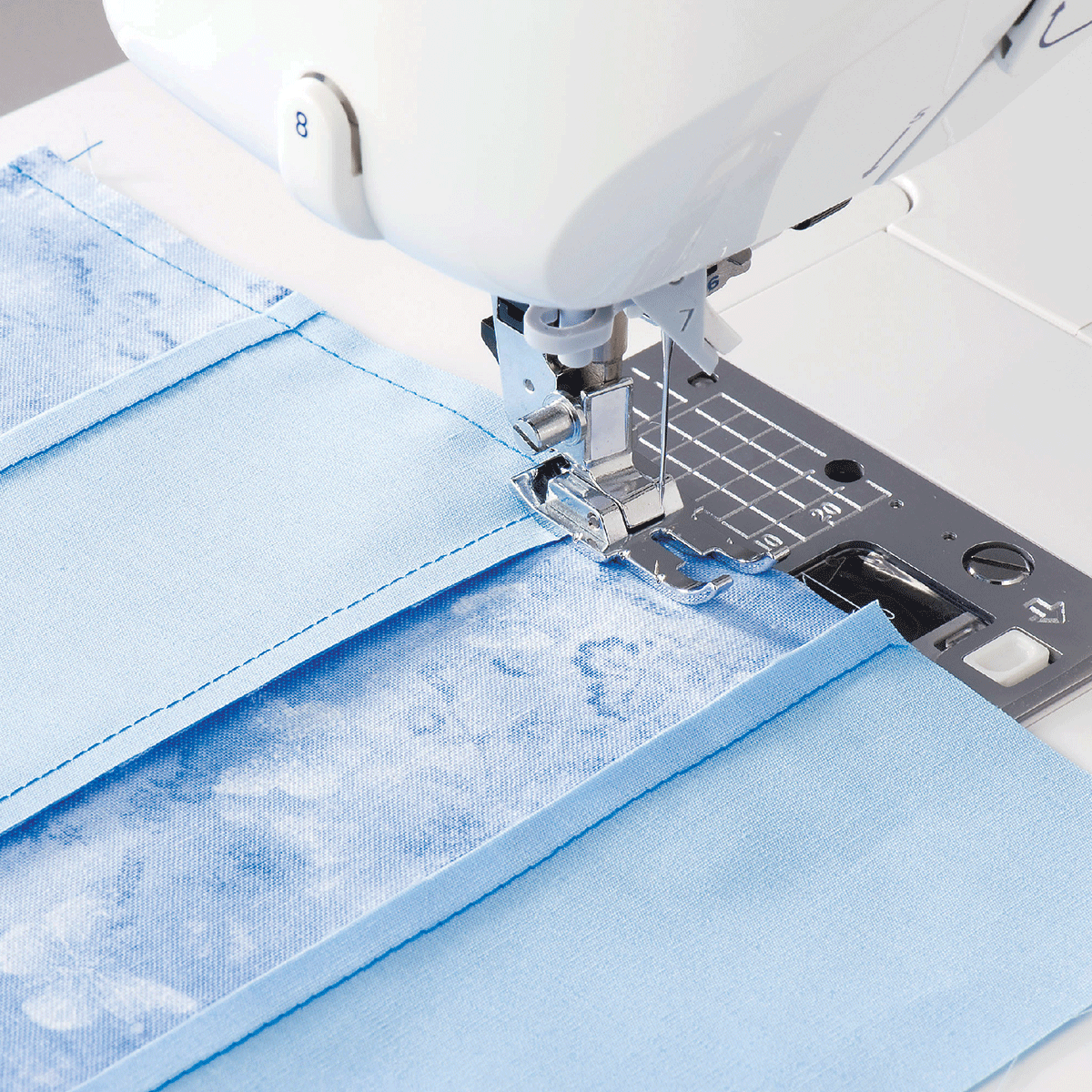

Presser Foot with Guide

On the right side of the presser foot, there are guidelines at a 2 mm spacing from 0 to 2 cm from the center of the needle entry opening (center needle position). This presser foot is useful when sewing parallel straight or decorative stitching.

Ditch Sewing Presser Foot (Edge Sewing Presser Foot)

The long guide at the center of the presser foot fits perfectly in the seam line to stabilize stitching. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.(Normal type )

Compact Guide Edge Sewing Foot

This presser foot has a shorter guide at its center. With this shorter guide, smoother feed of the material is promised. Furthermore, it is expected to reduce uneven material feed. The marks on the left side of the presser foot will be the guide for the outline quilting. By changing the needle base line, you can sew the single lap stitching with ease.

Quilt Presser Foot

With the feed dogs lowered, you can freely move the fabric to draw using stitching. Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly.

Quilt Presser Foot (for Ruler)

With a distance of 1/4" (6.5 mm) from the needle entry point to the outer edge of the presser foot, sew using a ruler as a guide. The front of the presser foot is lowered, making it easier to see the needle area. Adjust the height of the presser foot according to the thickness of the fabric.

Quilt Presser Foot (Open Type)

Use the screw to adjust the height of the presser foot according to the thickness of the fabric, so the fabric moves smoothly.

Fringe Foot

This foot has a claw at its center. It is used for forming loops by laying the thread over the claw. This presser foot can be used for sewing decorative stitches on workpieces by making three-dimensional thread loops and fringes on the edge of the fabric with your favorite threads.

Cording and Embroidery Presser Foot

This presser foot has a hole for supplying cording to be sewn over. With the feed dog lowered, you can freely move the fabric to create simple embroidery with cording.

Cording Presser Foot (for 3 Cords)

Pass threads through the three channels in front of the needle entry opening and sew them with the three-point zigzag stitch or decorative stitches in order to create three-dimensional decorations.

7 Hole Cording Foot

This presser foot is provided with seven cord insertion holes of approximately 1 mm in diameter. As many as seven (1 to 7) thin cord(s) or embroidery thread(s) can be sewn using these holes while neatly arranging them in parallel (in the case of two or more cords / threads are used).

Gathering Foot

Change the stitch length, thread tension and presser foot pressure to adjust the amount of fabric that is gathered. You can also use this presser foot to sew two pieces of fabric together while creating gathers in only the lower piece.

Dedicated Hook for Thick Thread Decoration

Wrap the thread you want to decorate around the bobbin and draw a pattern with pattern stitching or free motion.

Thread Stand

The specially designed thread guide that is also installed smoothly pulls the thread straight up. When placing the hard case on the sewing machine, this thread stand and thread guide can be removed in a single step.

Magnetic Gauge

A strong magnet holds this gauge in place on the needle plate. This gauge can also be used on household sewing machines with a metal needle plate.

Ruler Kit (HZL type)

Various patterns can be formed by combining basic lines and shapes. This kit contents straight, wave, hexagon, circle, feather shapes. Be sure to use this kit together with the presser foot for ruler. The thickness of these rulers are 3mm.

Stitch Area Magnifier

This is useful for viewing the needle area or performing intricate operations.

Foot Switch Stopper

Installing this stopper on the foot controller disables the function that is activated by stepping on the controller with your heel.

Advanced Quilter's Kit

This set contains the following: Edge Sewing Presser Foot, Quilt Presser Foot (Open Type), Quilt Presser Foot (Zigzag Type), Open Toe Presser Foot, Applique Presser Foot, Pearl Attaching Presser Foot

Heavy User Kit

This set contains the following: Button Attaching Presser Foot, Invisible Zipper Foot, Rolled Hemming Presser Foot, Binder Presser Foot, Presser Foot with Guide, Cording and Embroidery Presser Foot

Creative Set

This set contains the following: Applique Presser Foot, Cording and Embroidery Presser Foot, Pearl Attaching Presser Foot, Cording Presser Foot (for 3 Cords), Presser Foot with Guide, Open Toe Presser Foot, Bobbin x5

STITCH PATTERNS

SEWING SAMPLES

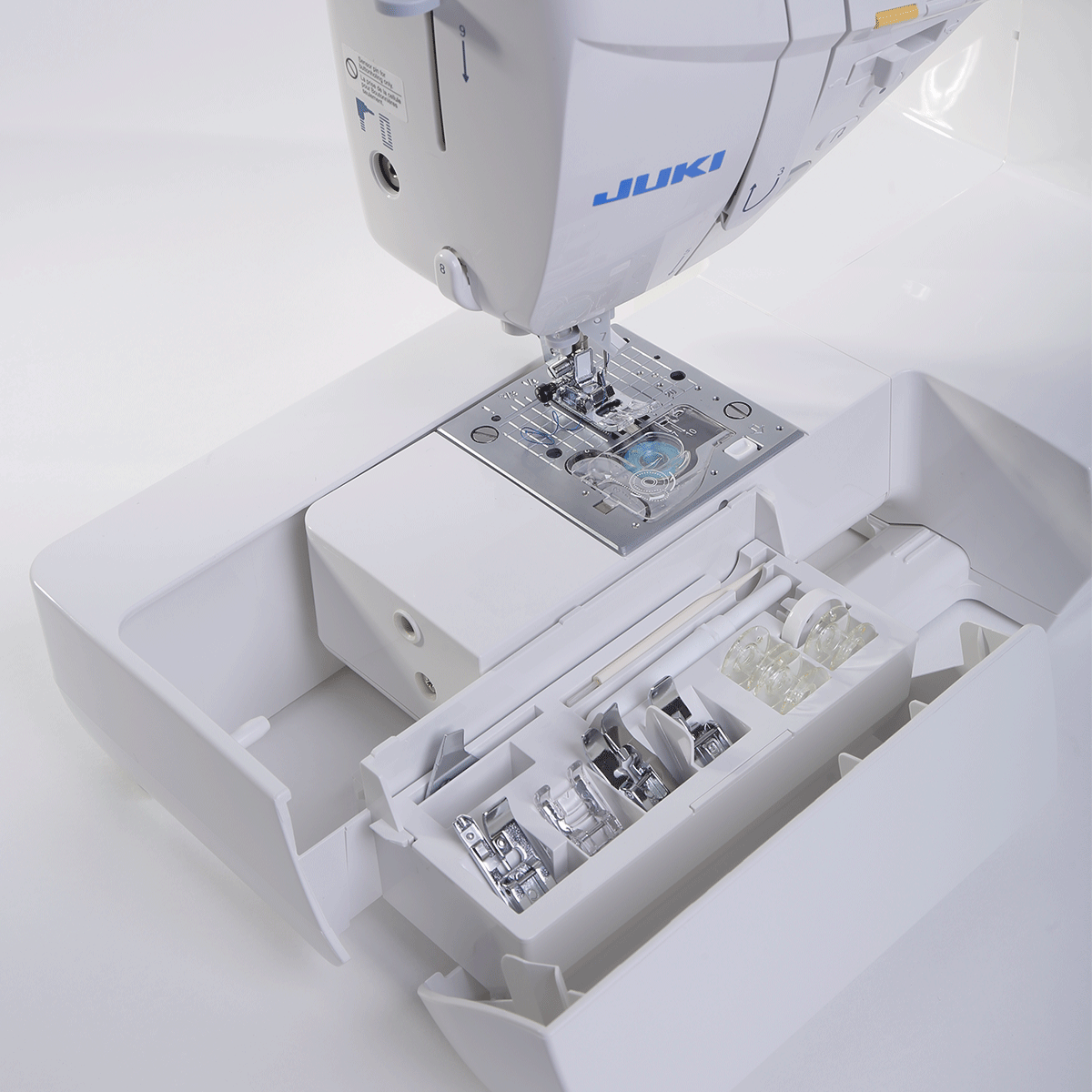

Accessory cases

Add decorative stitches while using a variety of specialty threads.

Lace-patterned sampler

Sew Decorative patterns in parallel to form new stitch designs.

Emblem pouch

Create a one-point floral stitch surrounded by decorative patterns.
