Is This Machine Right For You?

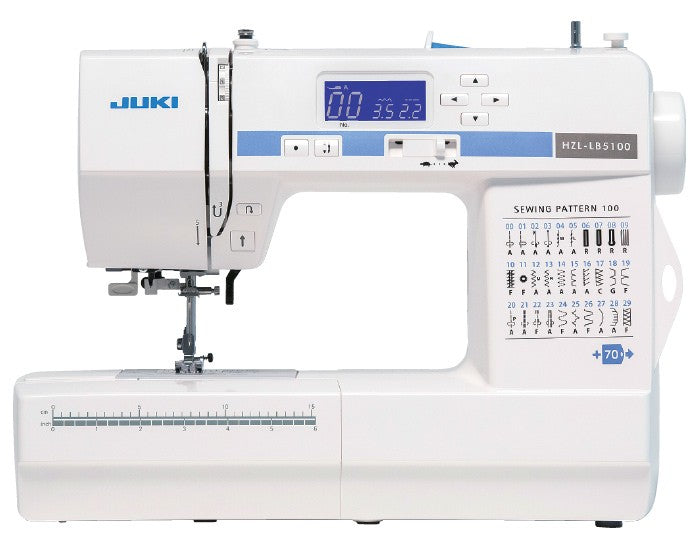

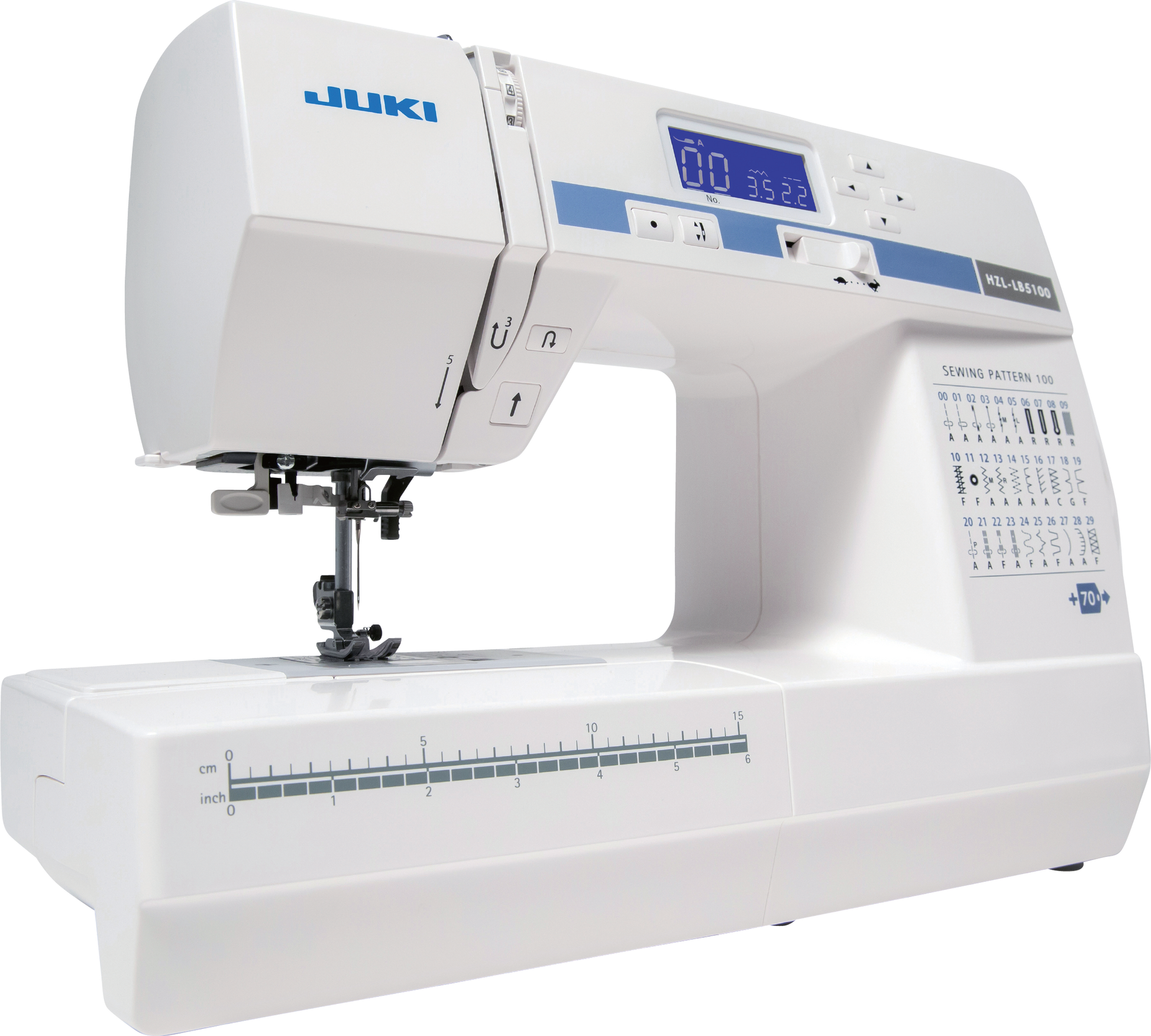

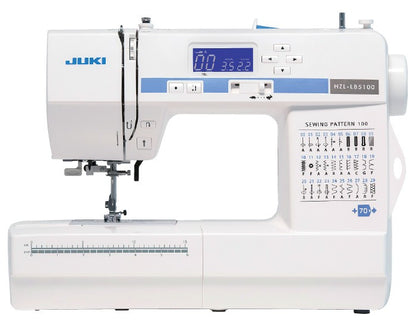

Expert insights for the JUKI AMERICA HZL-LB5100 Compact Size Sewing Machine with 100 Stitch Patterns
This machine is great if you:
- Sew garments and crafts regularly
- Want a compact computerized sewing machine
- Enjoy decorative stitches
- Need reliable everyday sewing
- Prefer a portable machine
This machine may NOT be ideal if you:
- Need embroidery capability
- Quilt large quilts frequently
- Prefer mechanical machines
- Need industrial sewing speed
- Sew only occasionally
Why Many People Love This Machine

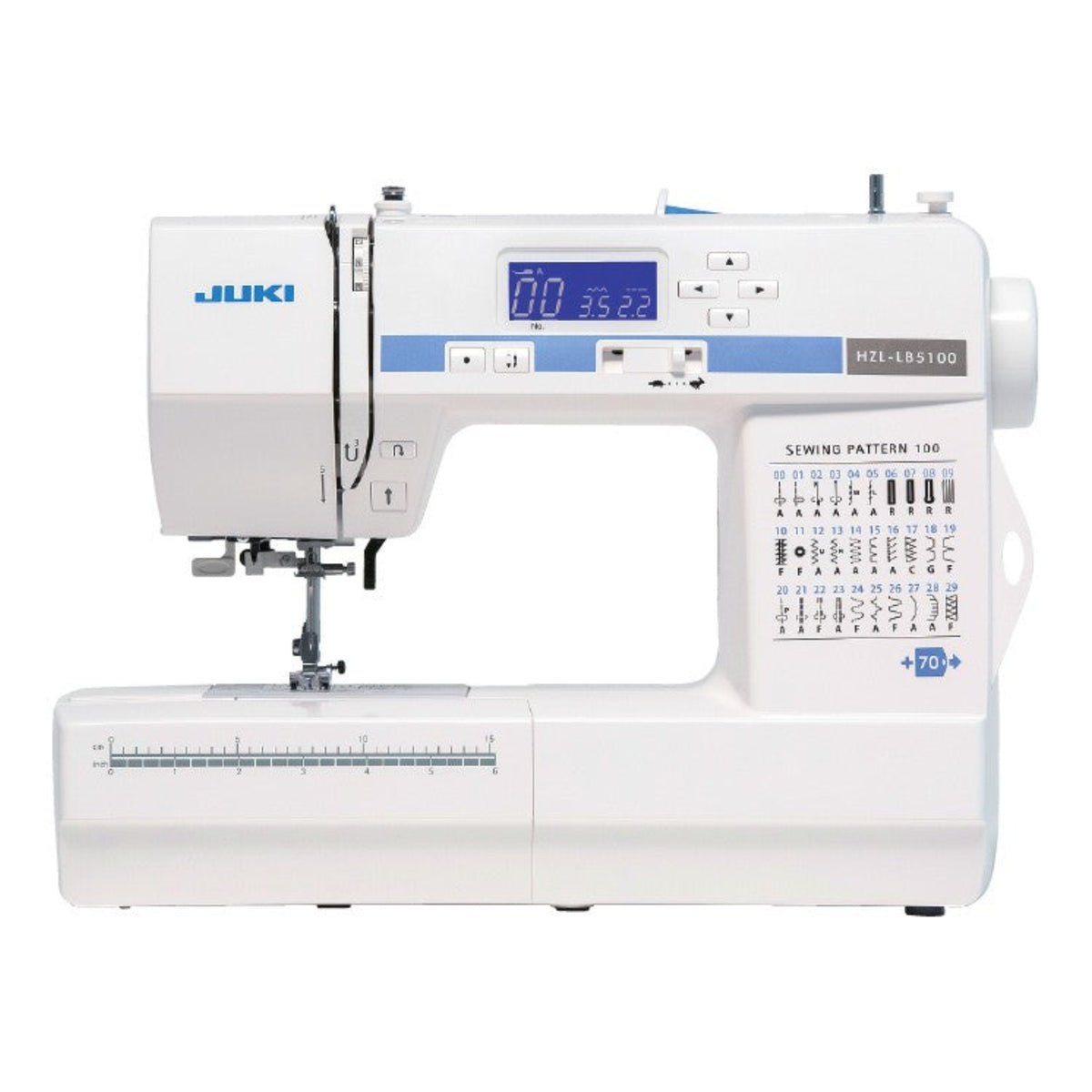

The JUKI AMERICA HZL-LB5100 Compact Size Sewing Machine with 100 Stitch Patterns offers a wide variety of stitches in a compact design. Many users appreciate the simple controls and dependable stitching for everyday sewing projects. (juki.co.jp)
Popular Projects for This Machine
"A good choice for sewists who want a compact computerized machine with enough features for everyday sewing."
Features
LCD Screen
The large, easy to read LCD Screen allows for quick selection of patterns, as well as width and length adjustment.
Stitch Chart Drawer
Slide open chart to view complete stitch selection.

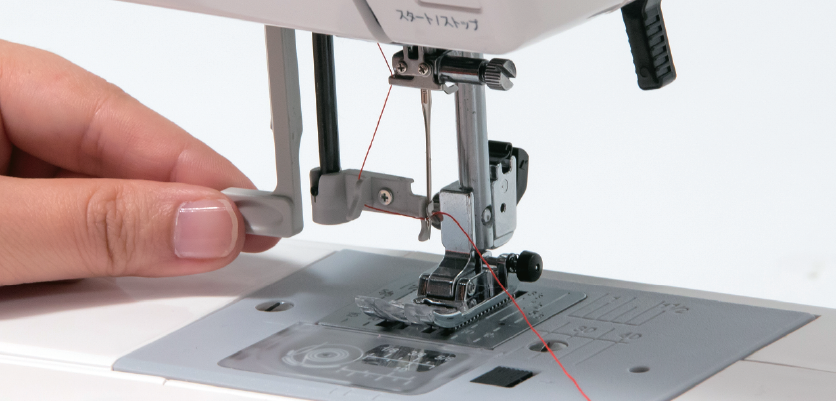

Auto Needle Threader
Quick and accurate one step needle threader.
Other Features

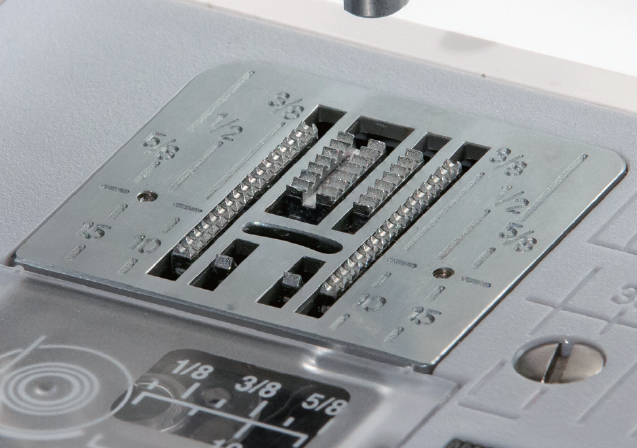

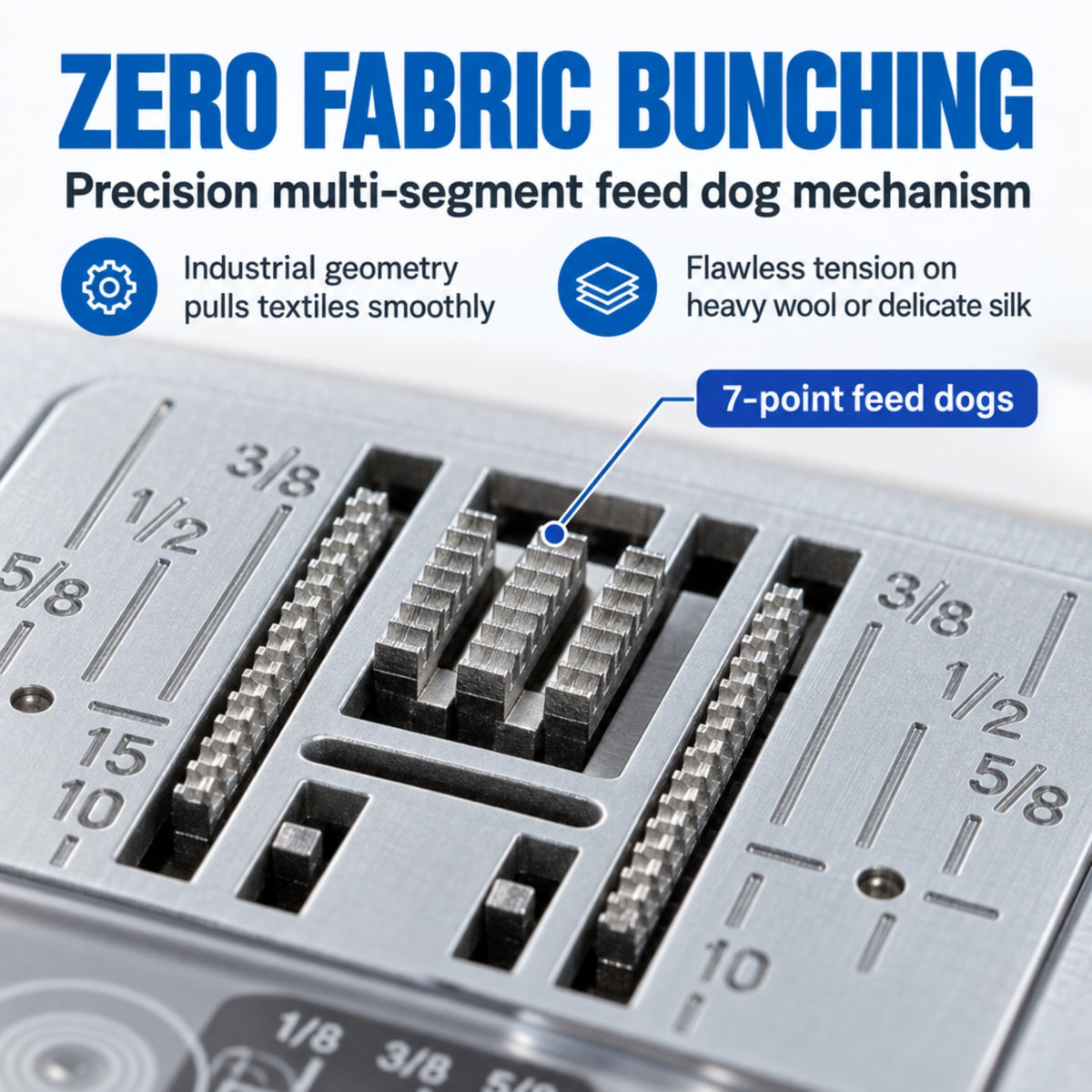

7-Point Feed Dog
Easily sew all types of fabric and accurately piece fabrics for edge to edge.

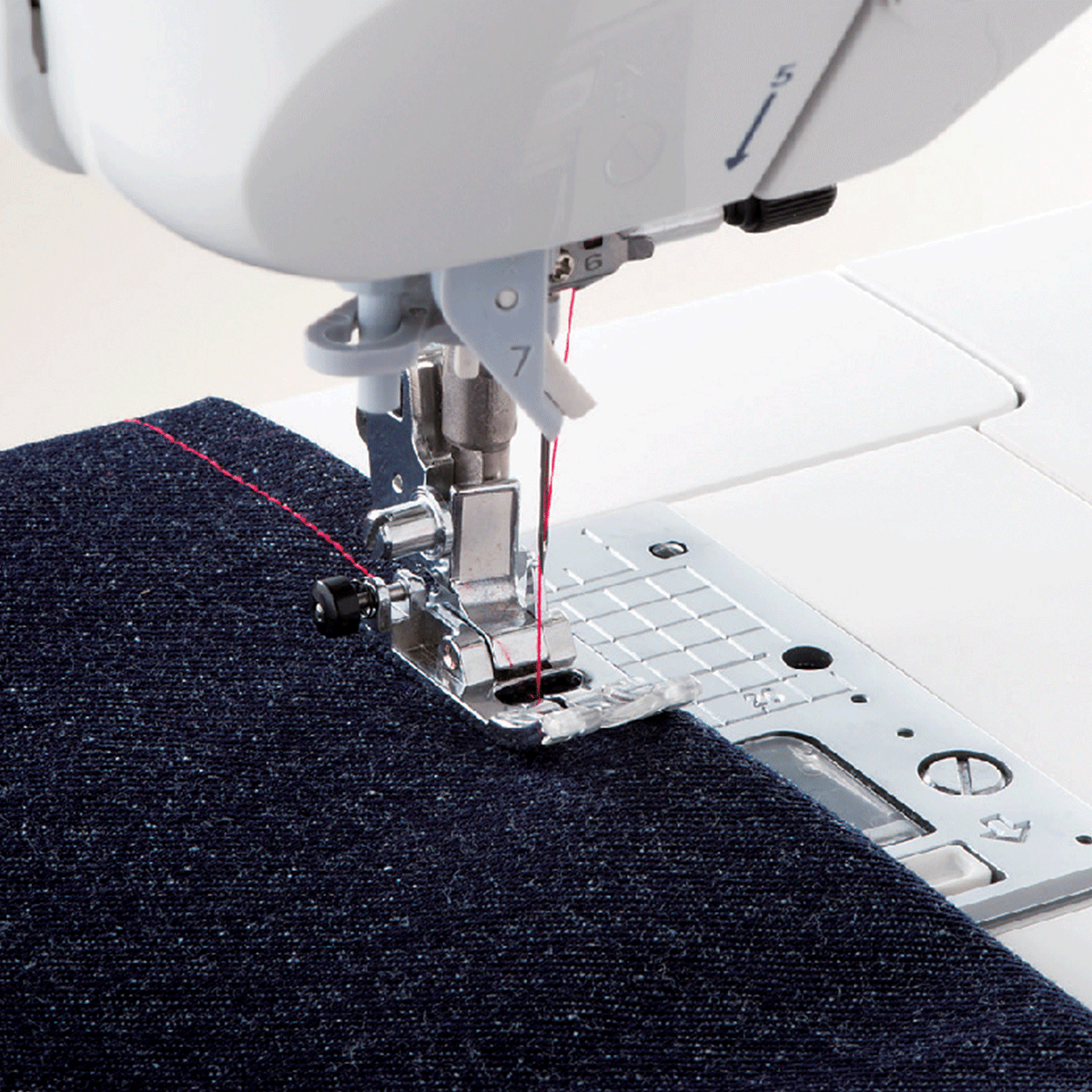

Powerful Even Stitching
Surprising power to sew denim or leather.

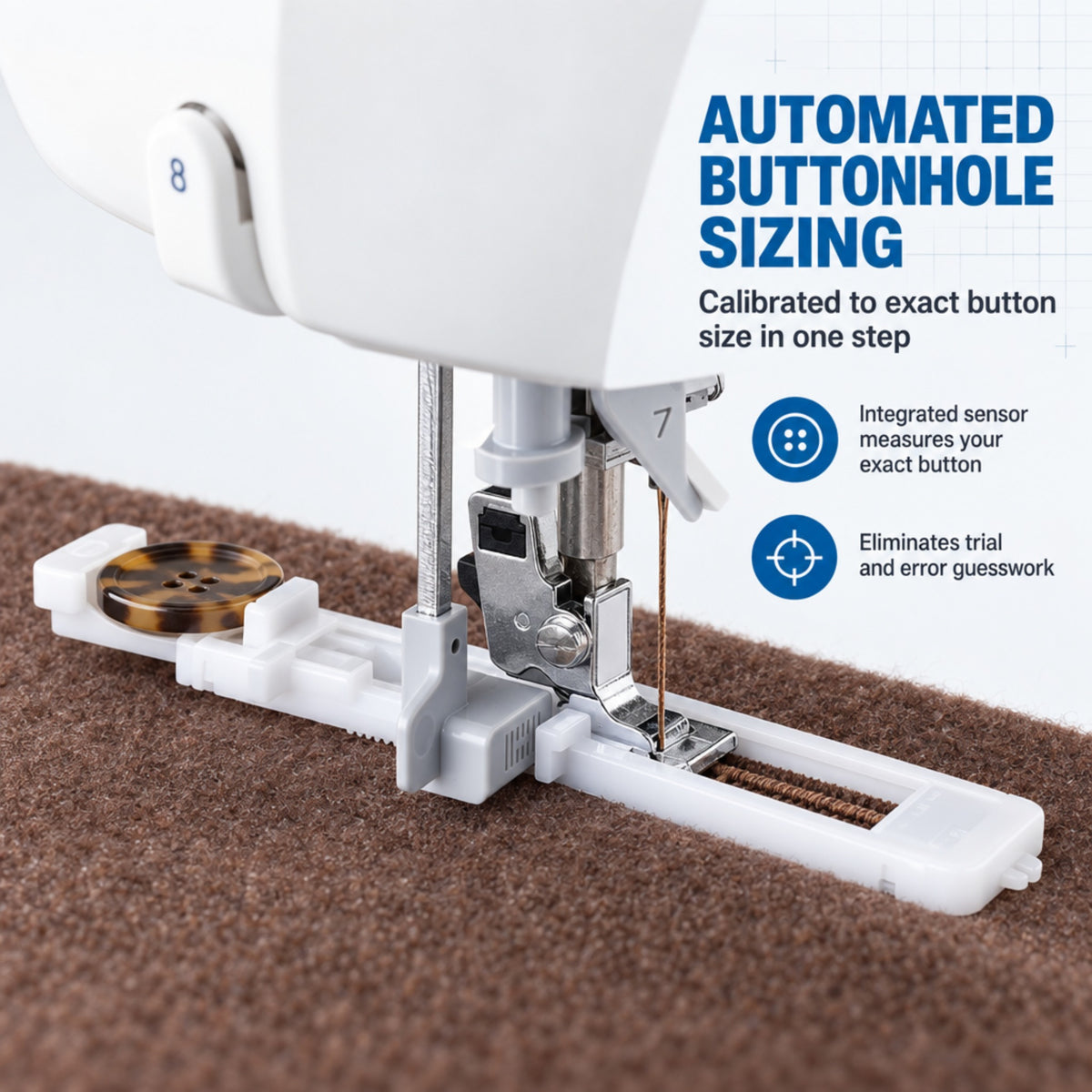

1-Step Buttonhole
HZL-L series sews buttonholes automatically according to the size of the button.
Easy to Start Sewing Overseams
Press the black button of presser foot to make the presser foot parallel to the throat plate. This makes easy to start sewing overseams.
Accessories
Zigzag foot, Overedge foot, Zipper foot, Satin stitch foot,Blind hem foot, Automatic buttonhole foot, Spool holder (large),Spool holder (small) , Additional spool pin, Spool stand,Spool pin felt, Bobbins ( X 4), Assorted needle set,Seam ripper, Lint brush, Screwdriver
SPEC / ACCESSORIES
| Control system（Arm size） | Computer (Arm Size 170㎜） |
|---|---|
| Dimensions | 406(W) x 298(H) x 182(D)mm |
| Weight | 5.6kg |
| Maximum sewing speed | 700 sti/min |
| Number of stitch patterns | 100 |
| Buttonhole | Automatic Buttonhole Length: 1.0 - 2.5cm |
| Start/stop button | ✓ Low-speed inching sewing with pressing continuously |
| Thread cutter | ✓ |
| Automatic needle threader | ✓ |
| Thread tension system | Standard |
| Needle up/down button | ✓ (Needle stop position switching) |
| Low-speed inching sewing | ✓ Press start/stop button continuously |
| Needle stop position | Up |
| Needle stop position switching | ✓ (Needle up/down button) |
| Lock stitch | Reverse stitch (Button system) Reinforcement stitch (Button system) Automatic reverse stitch pattern or reinforcement stitch pattern |
| Feed mechanism | 7 point feed dog |
| Presser foot lift (1 step/2 steps) Lever system | 5mm / 12mm |
| Horizontal presser foot holder button | ✓ |
| Drop feed | ✓ |
| Stitch length | Button system / LCD numerical display Max. 5mm |
| Stitch width | Button system / LCD numerical display Max. 7mm |
| Number of needle position (straight stitch/other than straight stitch) | 15 / - |
| Light | 1 LED light |
| Type of hook | Horizontal hook |
| Free arm | ✓ |
| Foot controller | ✓ |
| Wide table | Option |
| Accessory storage | Auxiliary bed |
| Sewing machine cover | Hard case |
| Operation support | DVD |
| Accessories (presser feet) | Zigzag foot A (set on the machine) Overedge foot C Zipper foot E Satin stitch foot F Blind hem foot G Automatic buttonhole foot R |
| Other accessories_1 | Spool holder (large) (1 set on the machine) Spool holder (small) Additional spool pin Spool stand Spool pin felt Bobbins ( X 4) (1 set on the machine) Assorted needle set Seam ripper (Buttonhole opener) Lint brush Screwdriver Instruction book Instructional video DVD Hard cover Foot control Power cable |
Standard Presser Foot
It can be used to sew lightweight to heavyweight materials.The wide needle entry opening allows this presser foot to be used for a variety of fabrics and applications, from straight stitches to zigzag stitches.Press the black button to keep the presser foot horizontal in order to smoothly begin sewing at a thick seam.

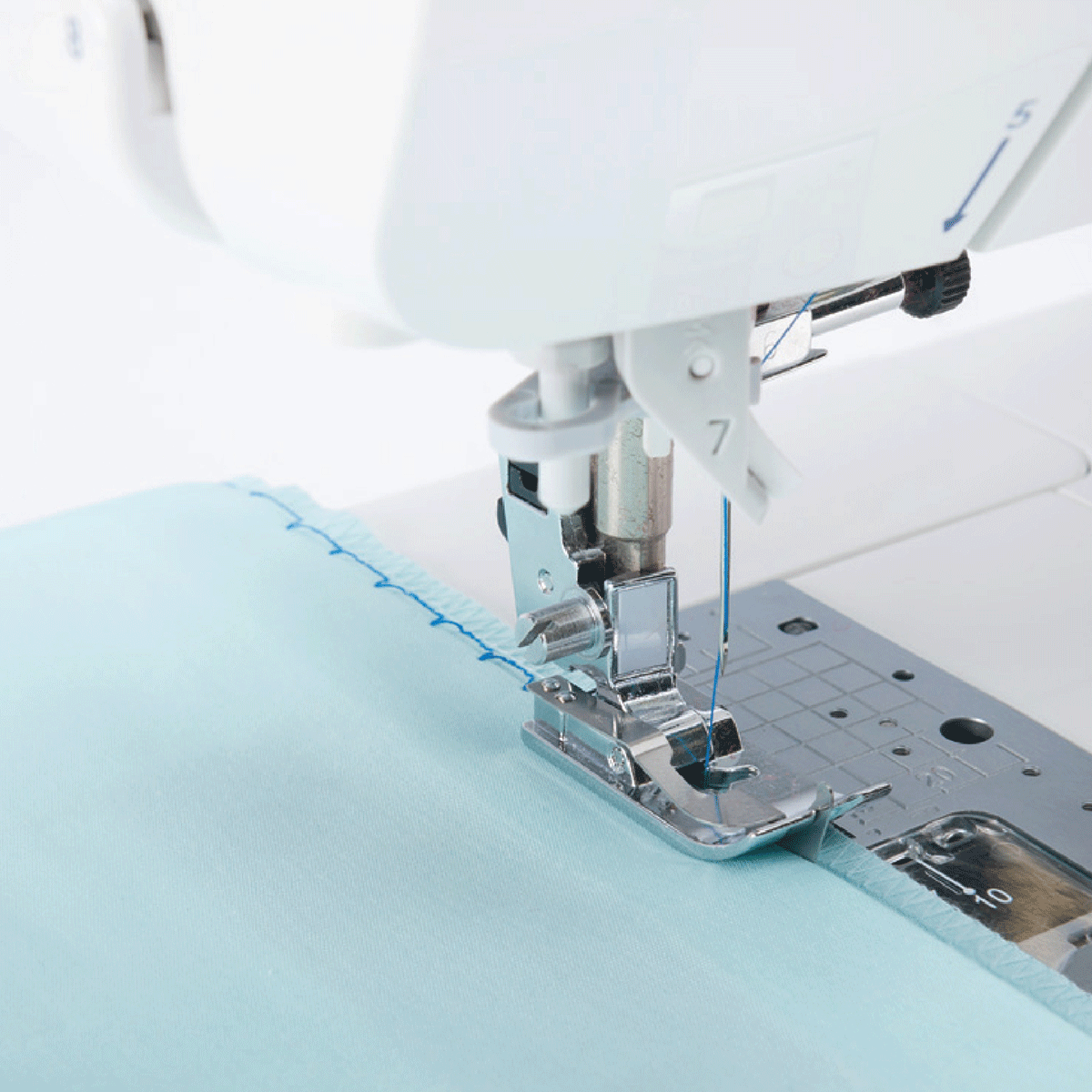

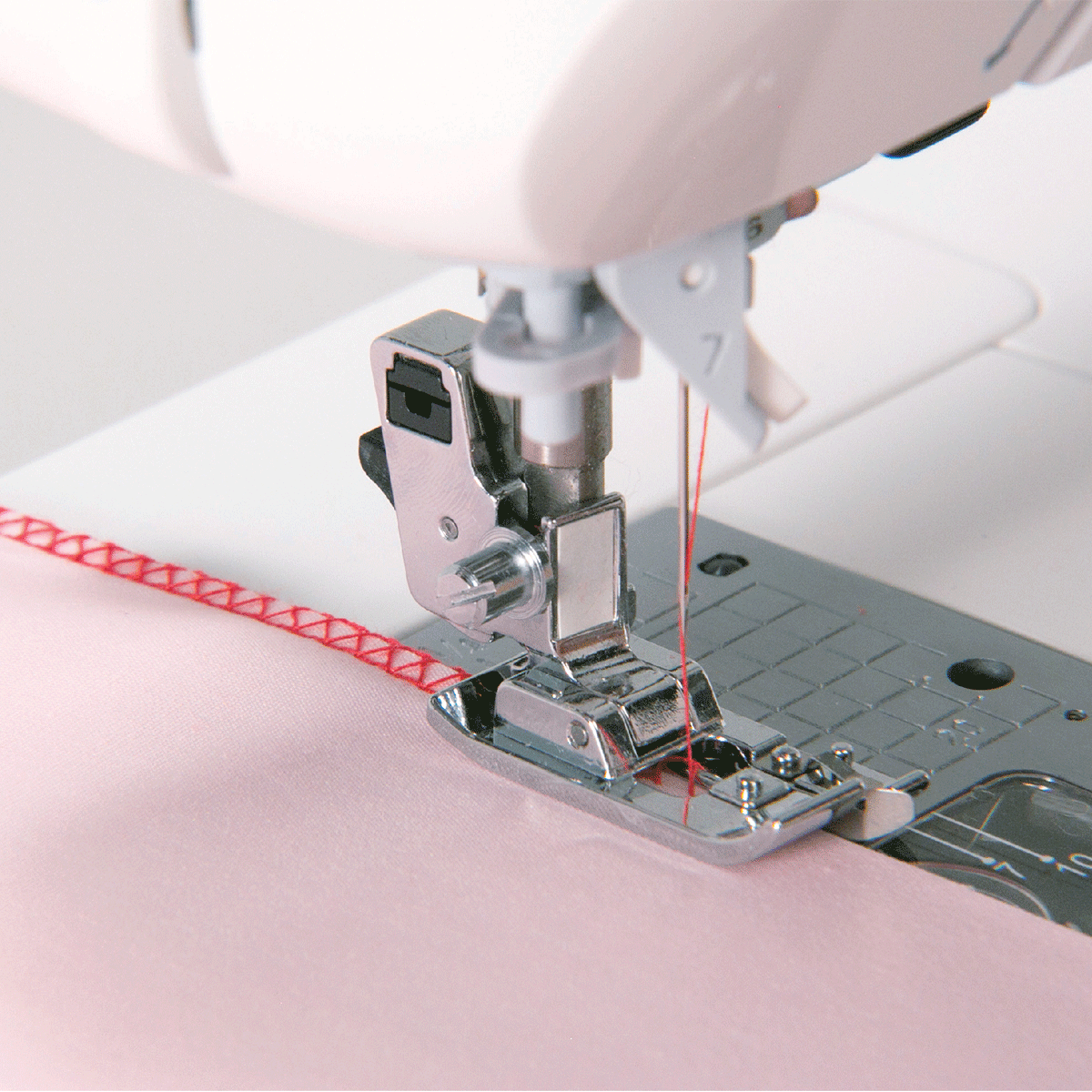

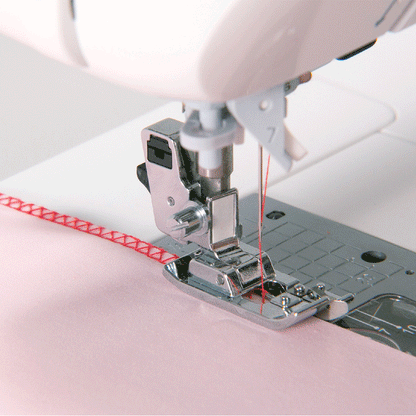

Overcasting Presser Foot (Overedge Foot)
Sew with the edges of the fabric aligned with the guide. The prong in the opening of the presser foot presses down the edge of the fabric to prevent puckering. In addition, the amount of thread going into the stitching is adjusted by the thread crossing the prong, creating a clean finish with little shrinkage. This presser foot cannot be used to sew zigzag stitches or overcasting by 5-point zigzag.

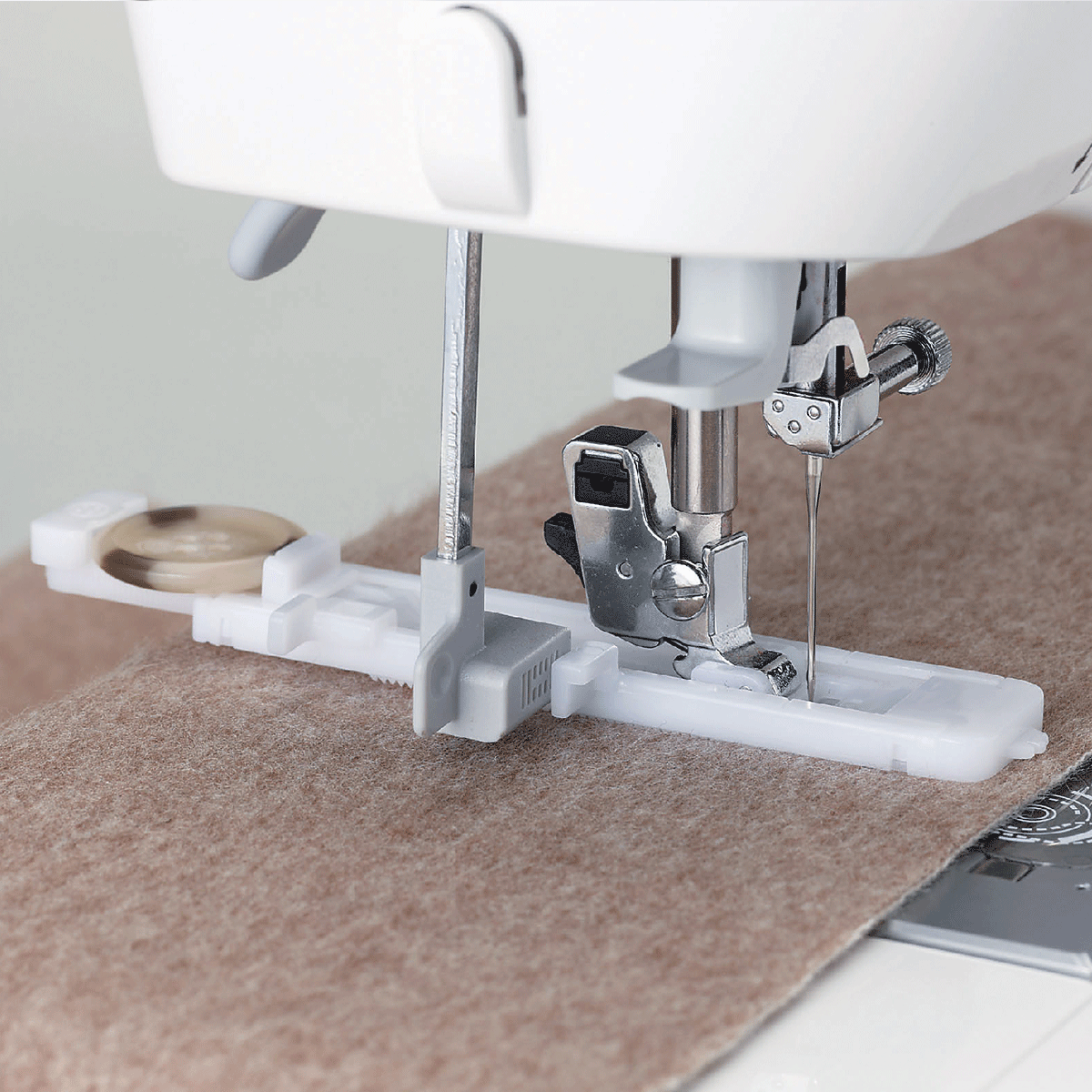

Buttonhole Presser Foot
You can sew buttonholes of the appropriate size by simply placing the button in the button holder of the presser foot.

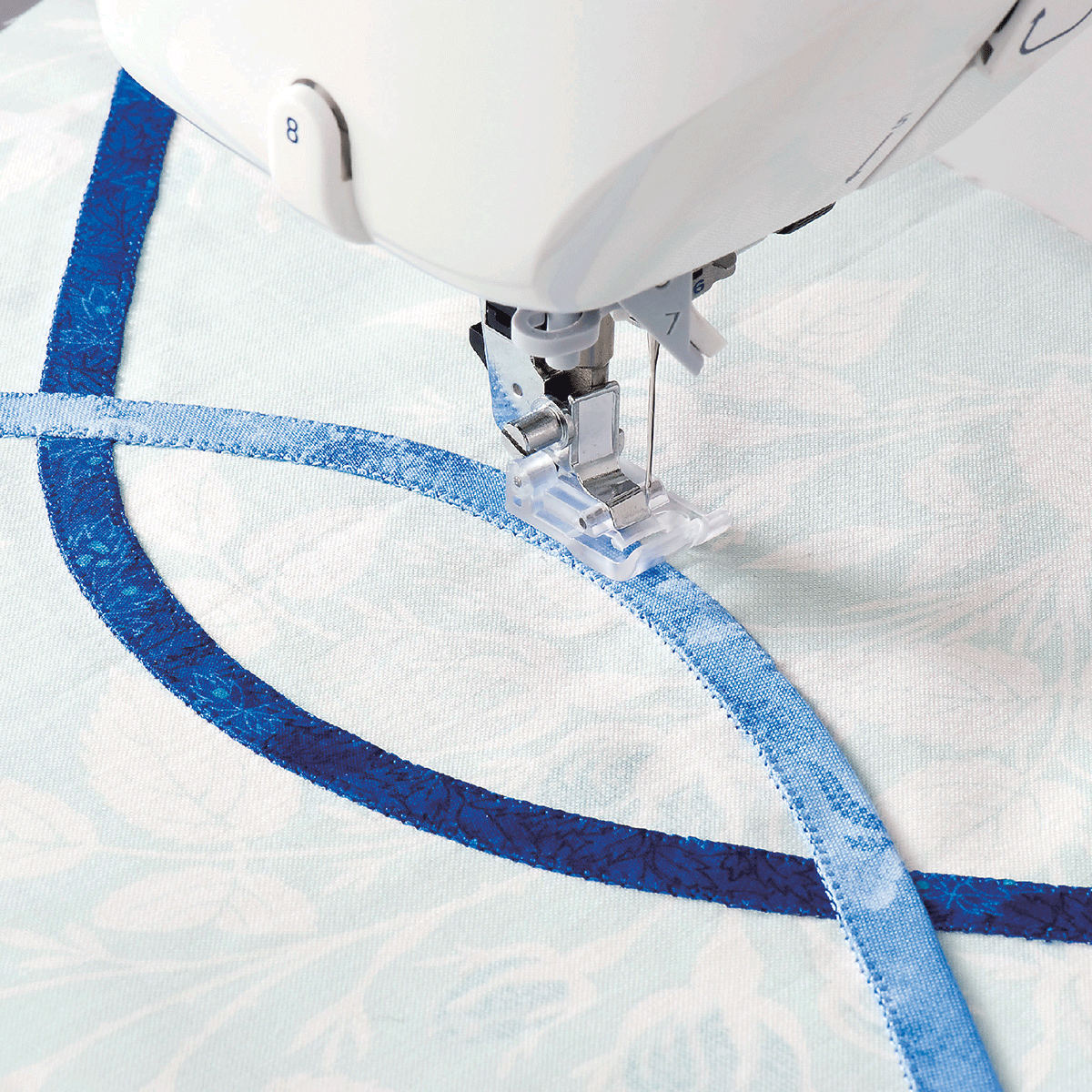

Decorate Stitch Presser Foot (Manual BH Presser Foot/Satin Stitch Foot)
The groove along the bottom of this presser foot ensures that the presser foot does not catch on the stitching, ensuring the fabric will be smoothly fed. Use to accurately sew a buttonhole near a thick seam that is hard to reach. Also Used to Manually Create Oversize Buttonholes.

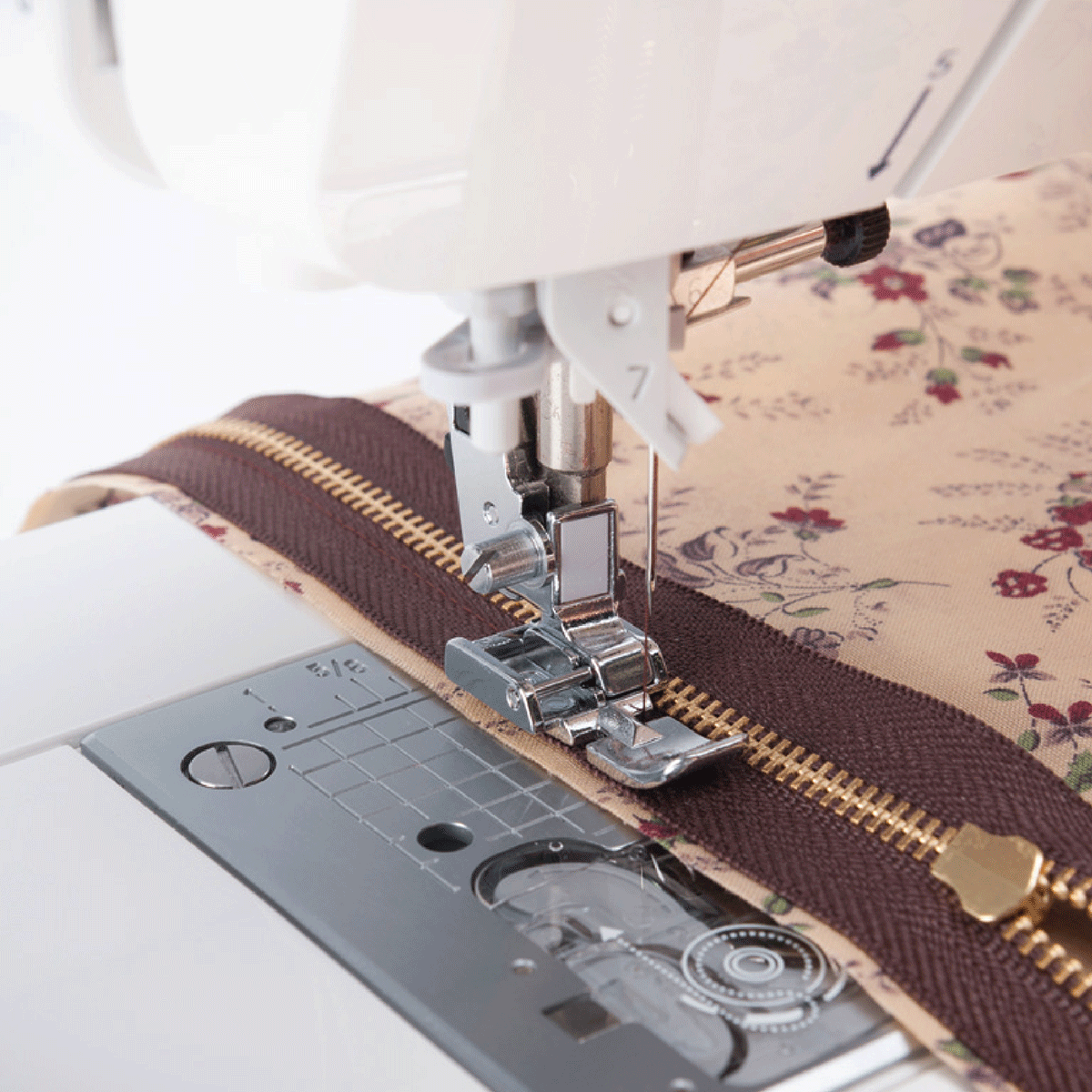

Zipper Presser Foot
Since this presser foot has a pin on the left side and on the right side for attaching it to the presser foot holder, you can attach this presser foot on either side of the needle, depending on which side of the zipper is being sewn. This presser foot can cleanly sew along the edges of the zipper without hitting the teeth.

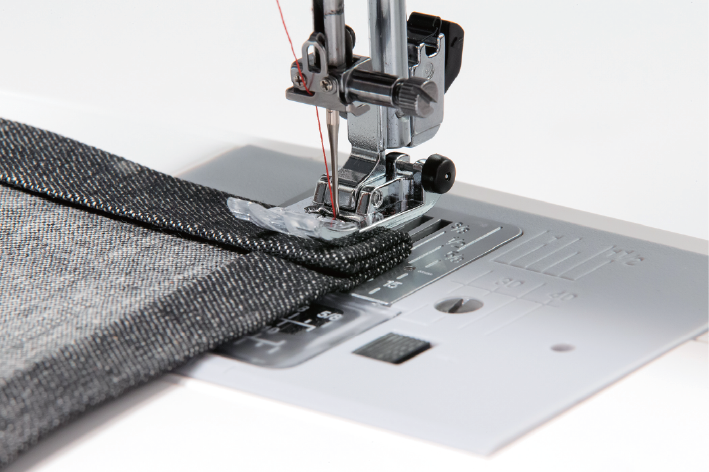

Blind Stitch Presser Foot (Blind Hem Foot)
By sewing with the fabric fold aligned on the guide of this presser foot,only a few threads of the fabric will be uniformly caught in the stitch. Adjust the needle entry point before sewing. You can also use this presser foot as a guide when changing the needle position for hemstitching in a straight line.
Auxiliary Spool Pin (Additional Spool Pin)
Use this spool pin with a thread spool for twin needle sewing, spare machine threading or bobbin winding.
Foot Controller
Controlling the sewing machine with your foot leaves both of your hands free while sewing.
Bobbin
Since the bobbin type differs depending on your sewing machine model,be sure to use the bobbin designed for your machine.
