Is This Machine Right For You?

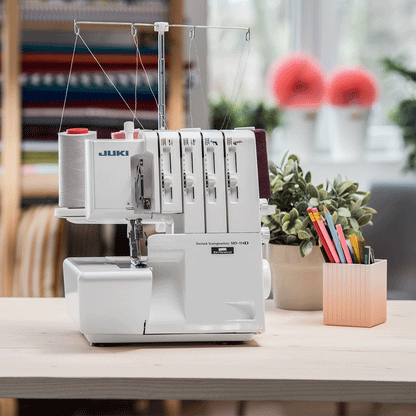

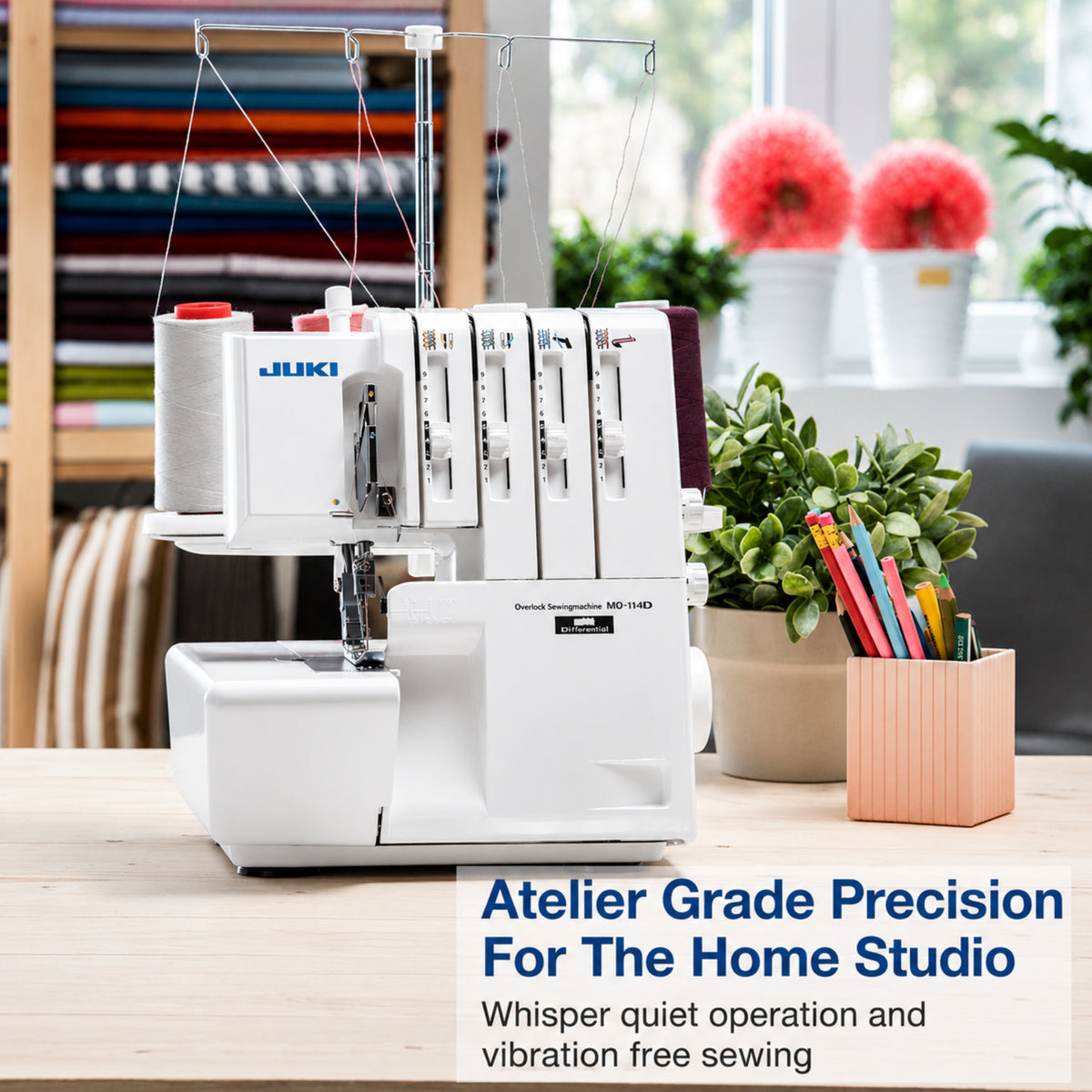

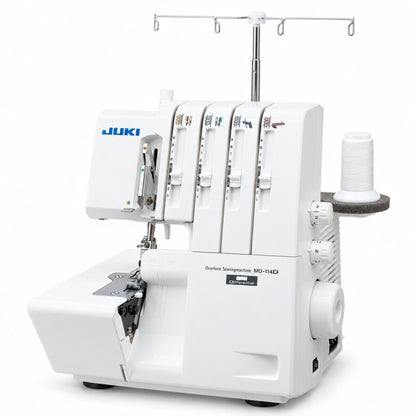

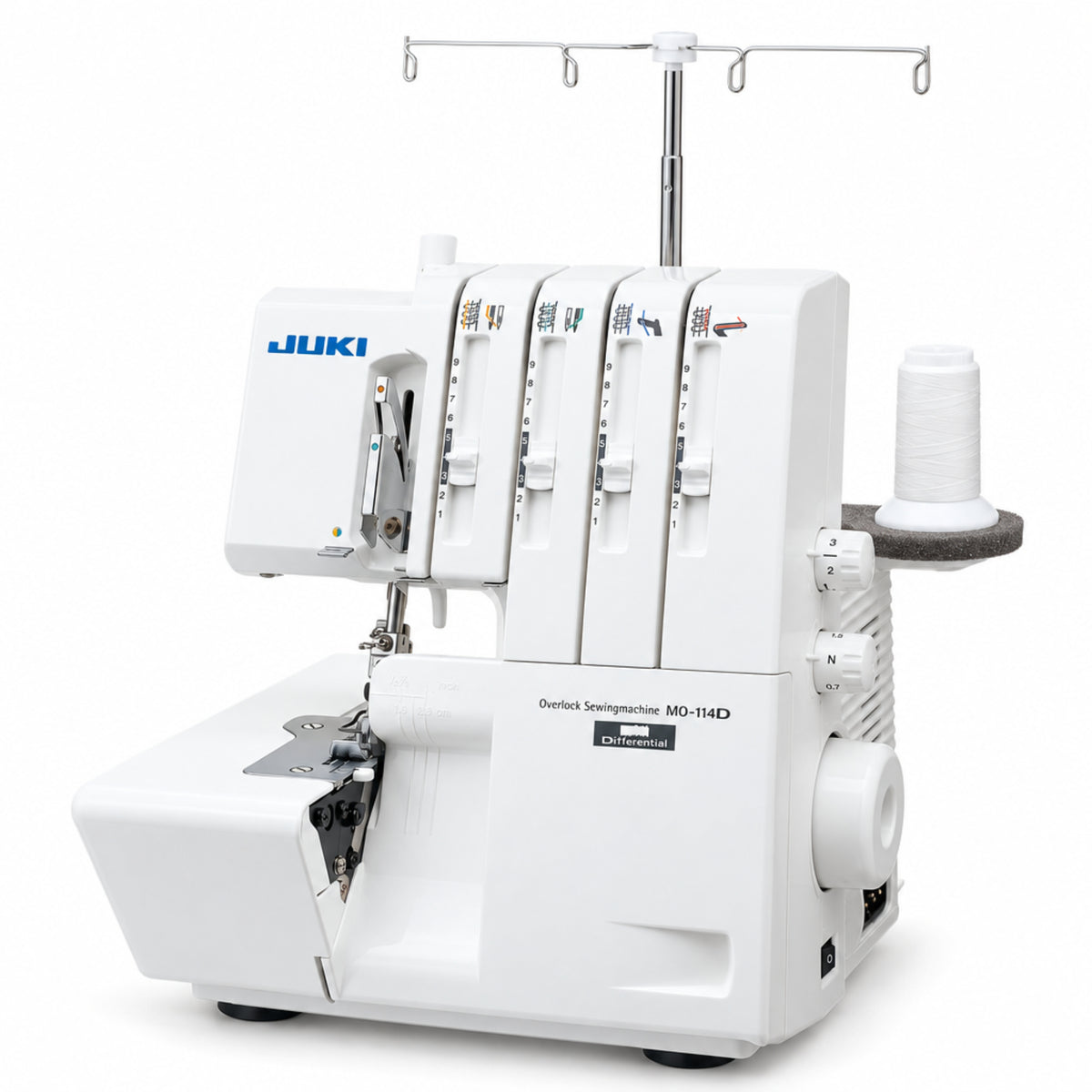

Expert insights for the JUKI AMERICA MO-114D 2/3/4 Thread Overlock with Differential Feed and Rolled Hem
This machine is great if you:
- Sew garments frequently
- Work with stretch fabrics
- Want professional seam finishing
- Prefer a durable serger machine
- Need reliable overlocking performance
This machine may NOT be ideal if you:
- Need regular sewing stitches
- Only sew occasionally
- Want embroidery capability
- Sew mostly quilts
- Prefer computerized sewing machines
Why Many People Love This Machine
The JUKI AMERICA MO-114D 2/3/4 Thread Overlock with Differential Feed and Rolled Hem offers dependable overlocking and smooth stitching. Many sewists appreciate the consistent seam finishing on garments.
Popular Projects for This Machine
"A dependable serger for sewists who want strong seam finishing for garment sewing."
Features
4-Thread Overlock
While cutting cloth, it is possible to sew two layers of fabric together and prevent the seam allowance from fraying.

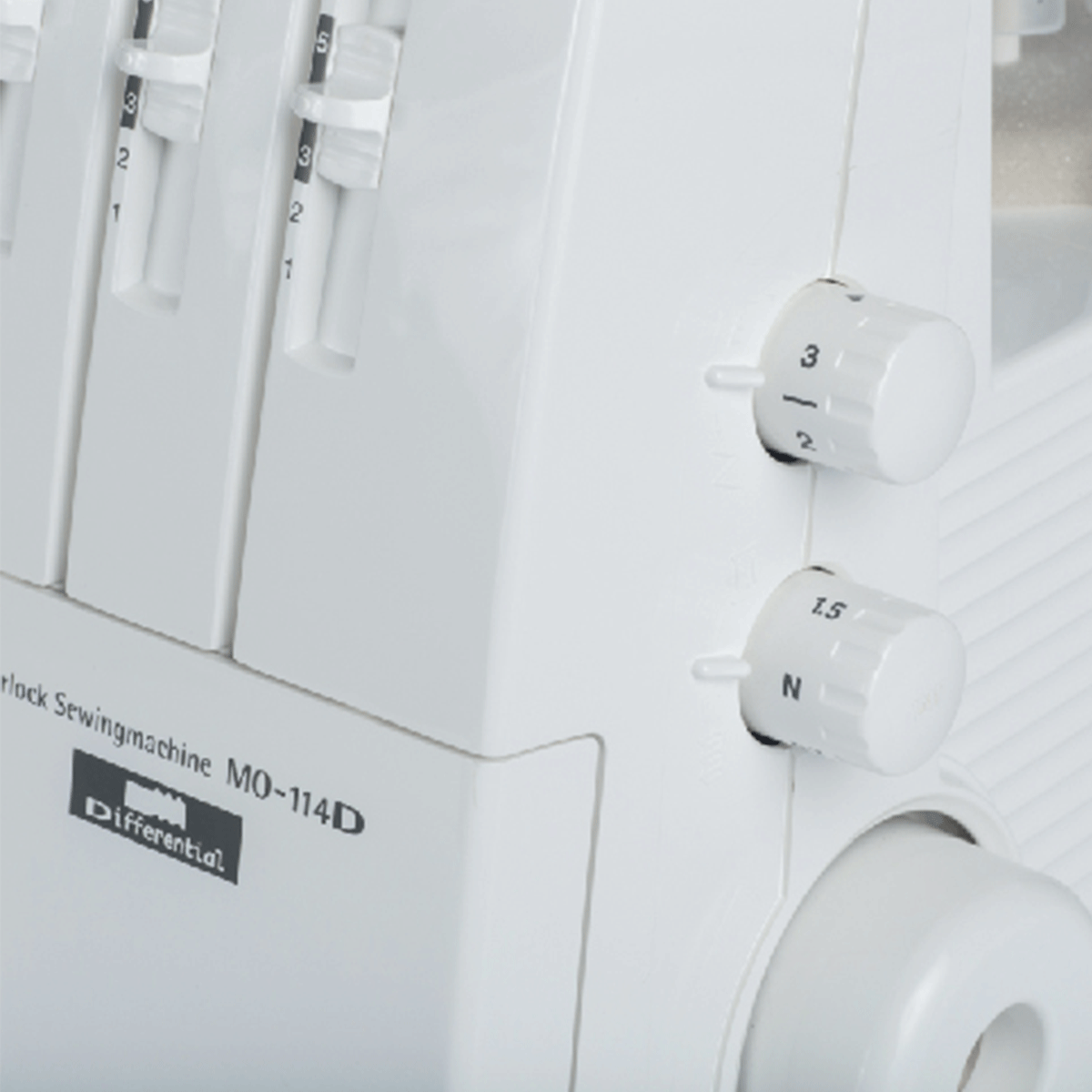

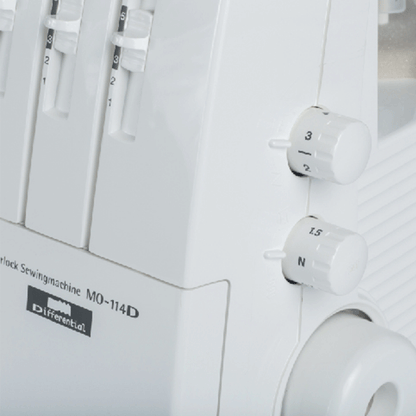

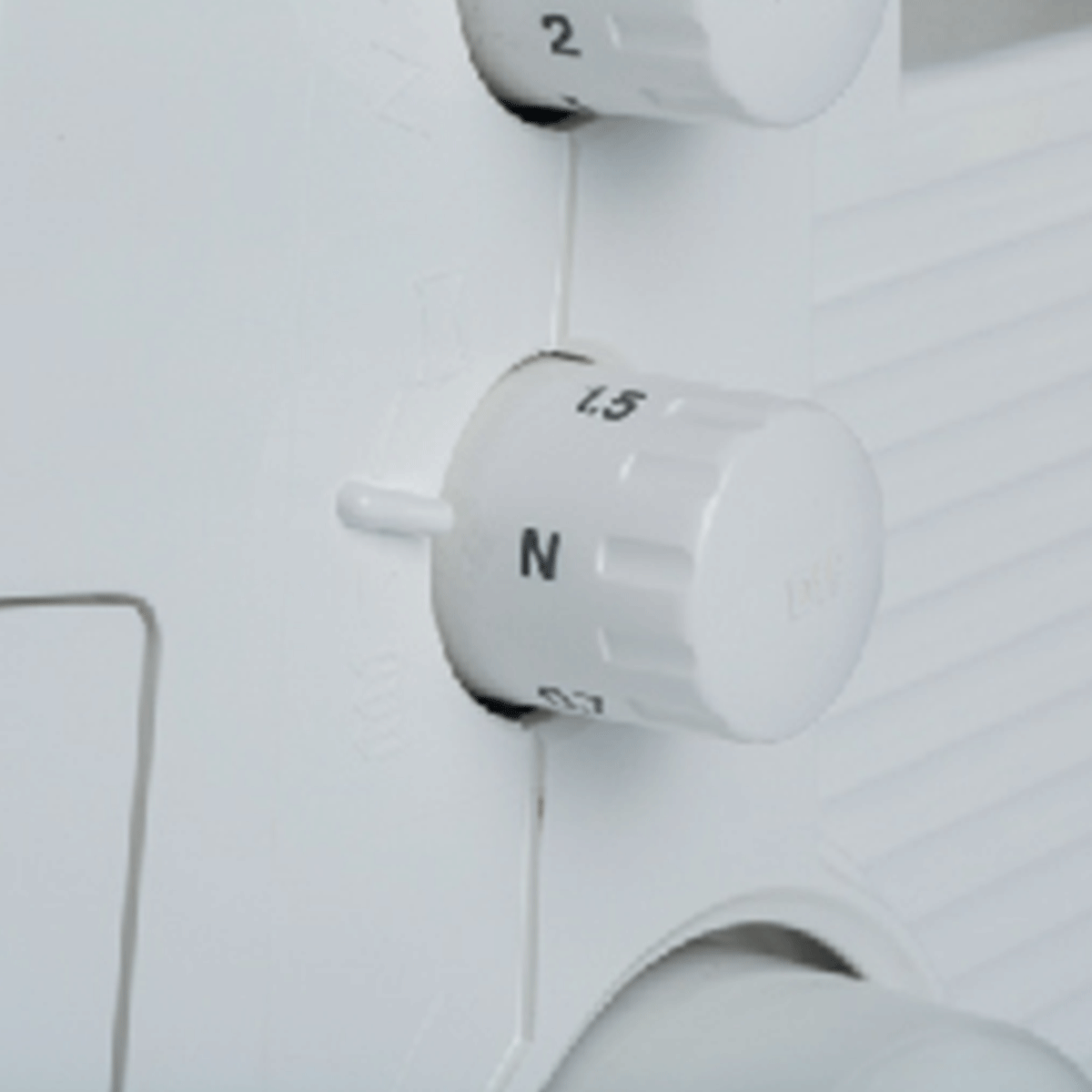

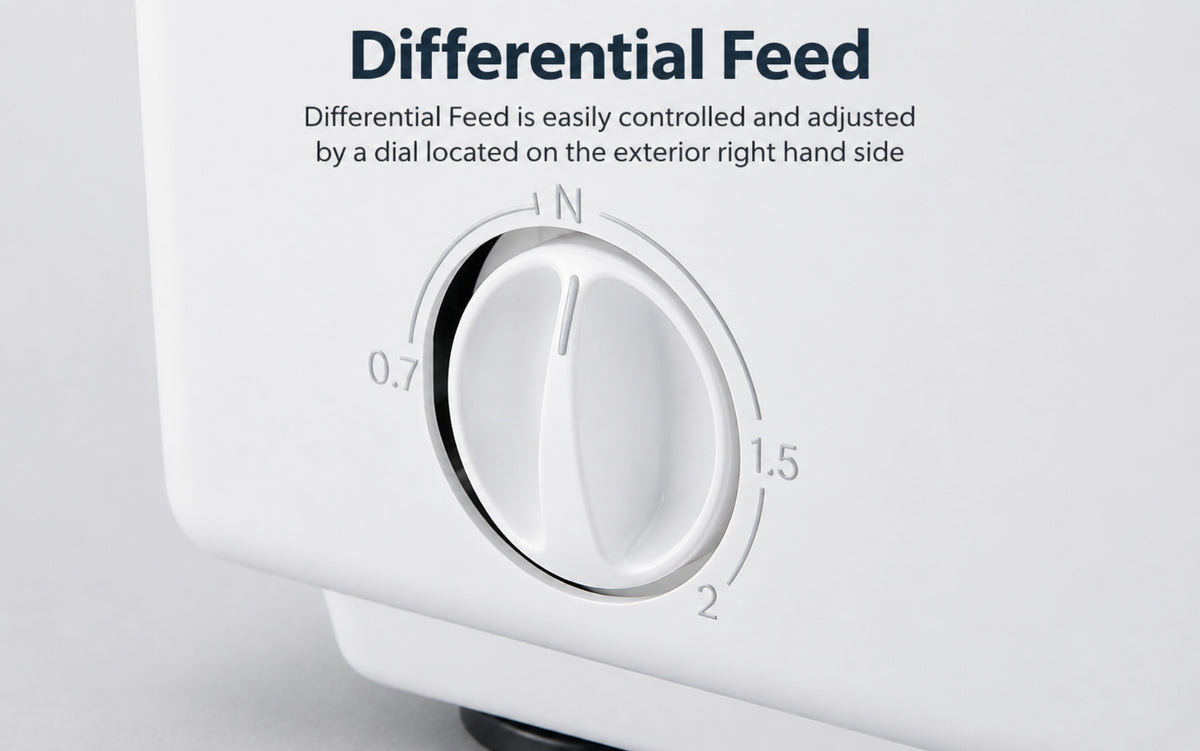

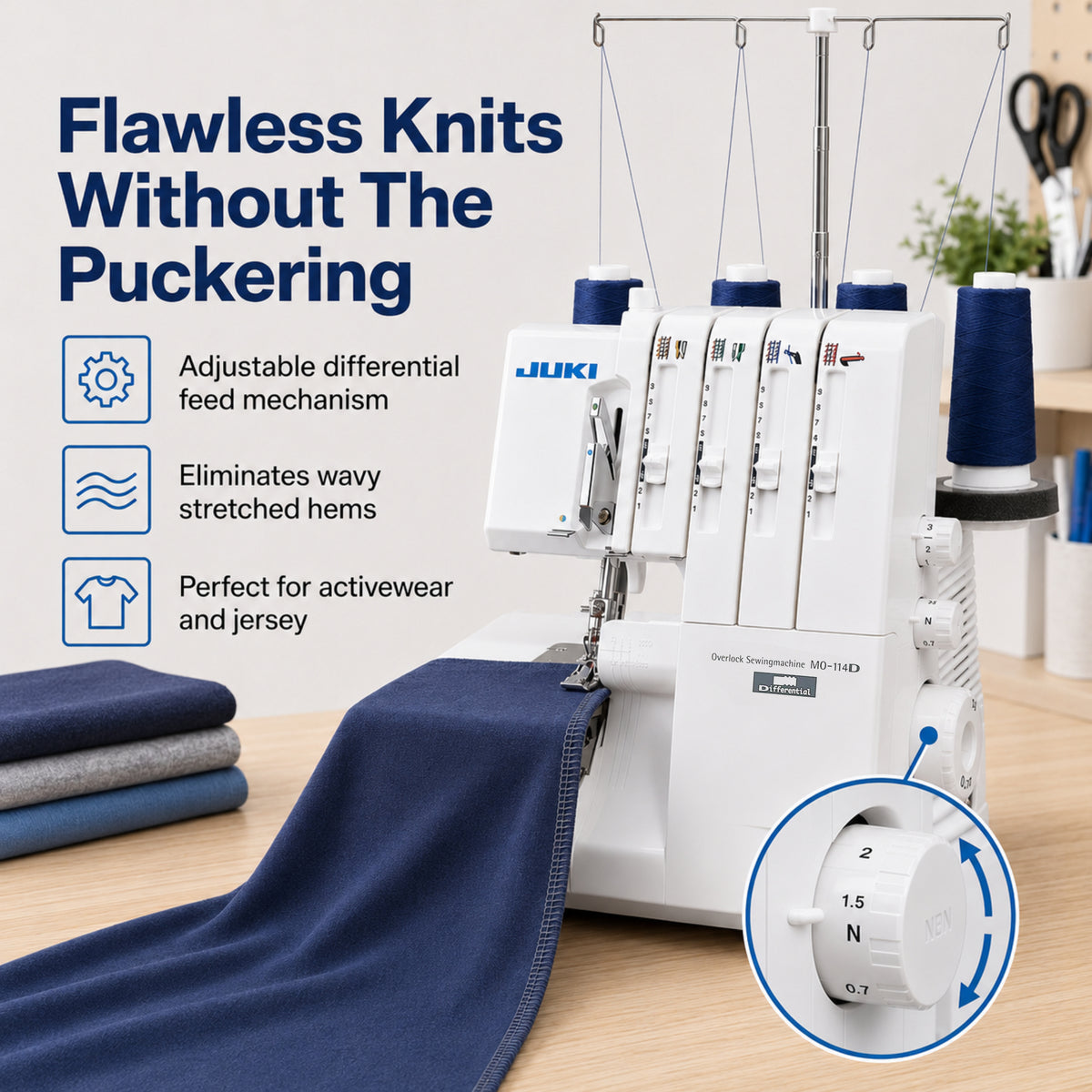

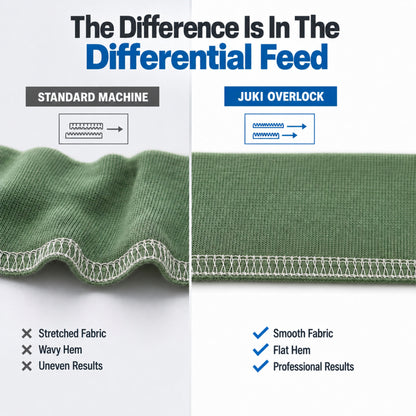

Differential Feed
Differential Feed is easily controlled and adjusted by a dial located on the exterior right hand side.
Materials that stretch easily such as knit fabrics can be finished beautifully using shirring stitch.
Materials that are likely to cause stitch gathering can be finished beautifully using stretching stitch.
Other Features

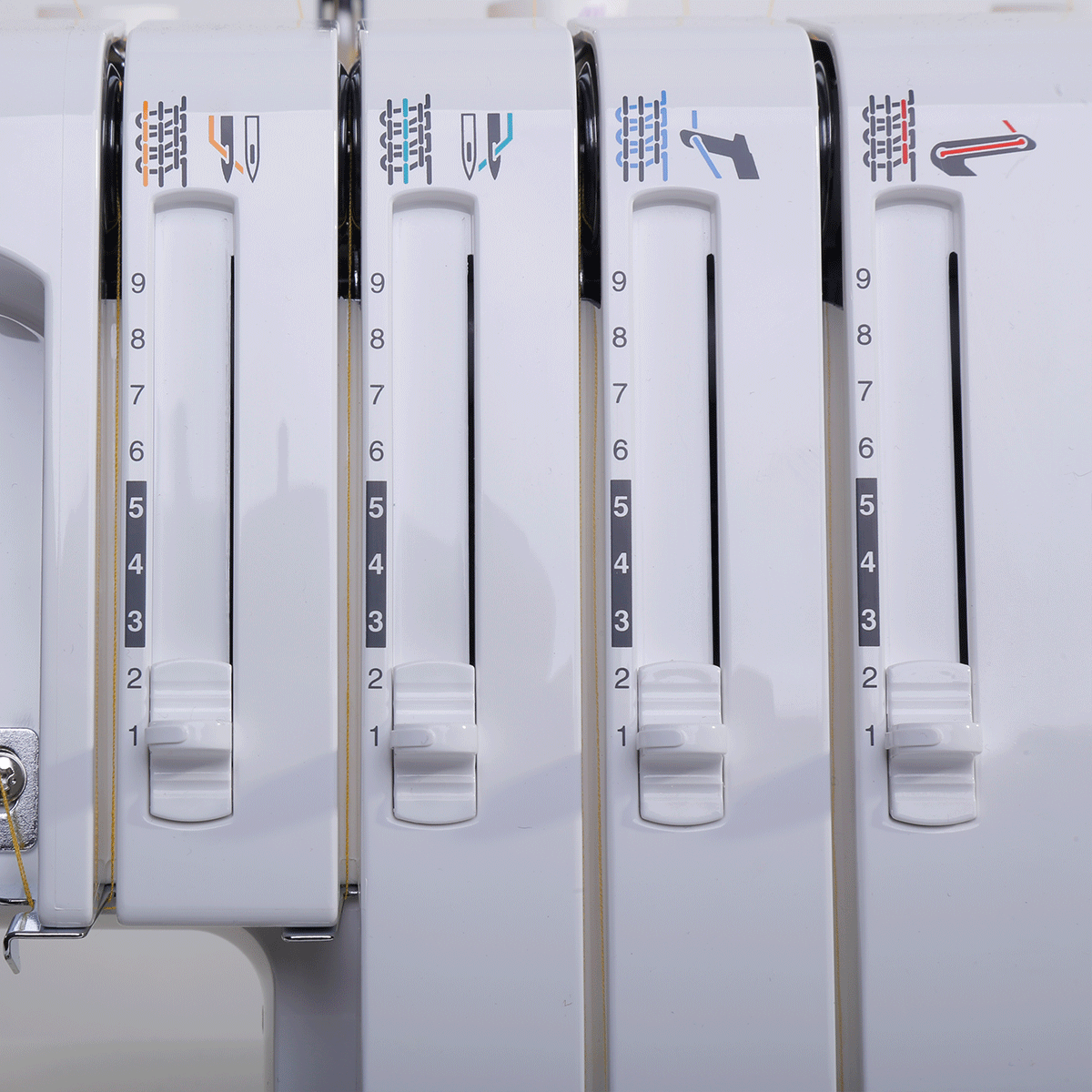

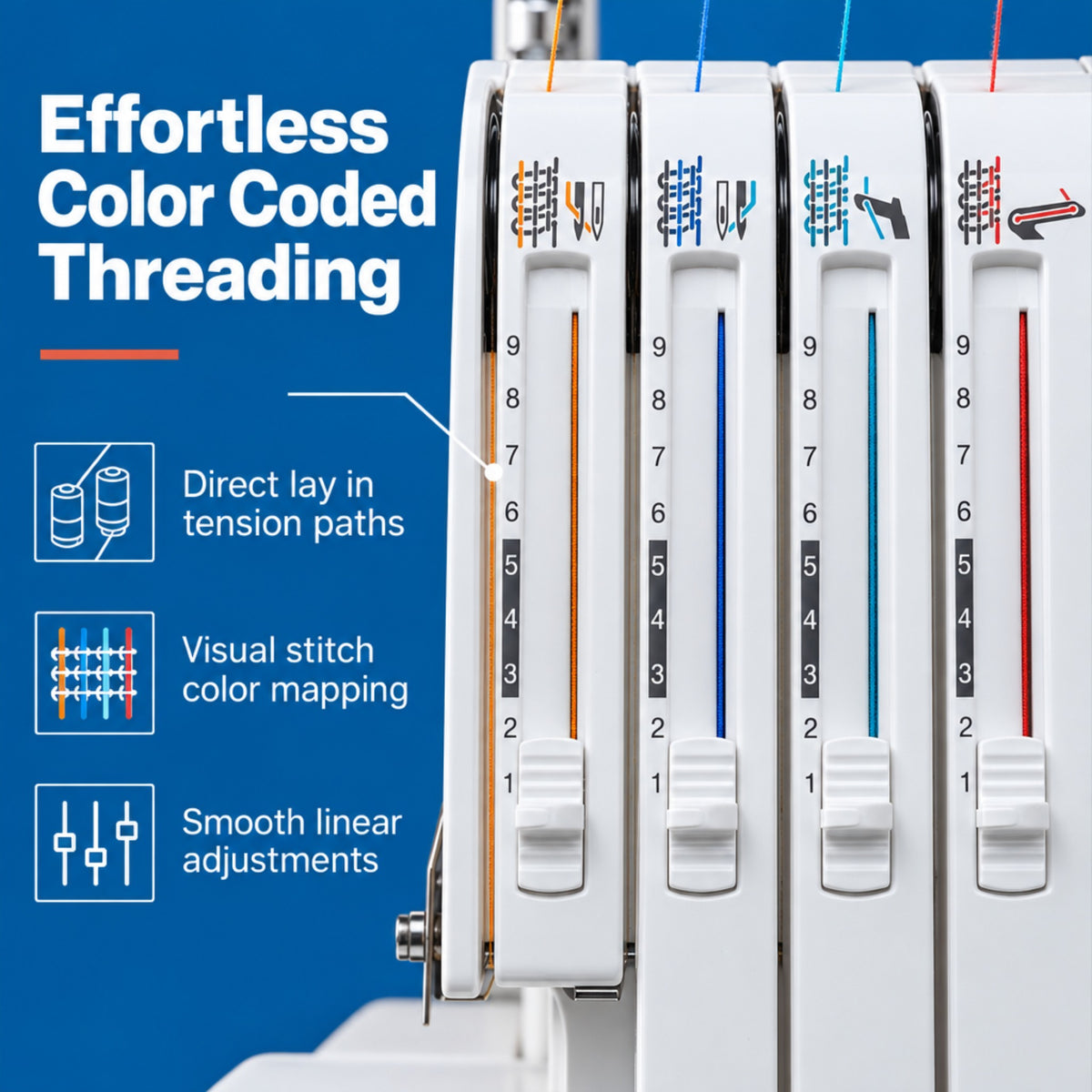

Lay-in Type Thread Tension Slots
throughout the machine make threading easy and efficient. No wrapping, just follow the color coded thread path.
Automatic Rolled Hemming
can be created quickly and easily with built-in fingertip control. There is no need to change the throat plate or foot.

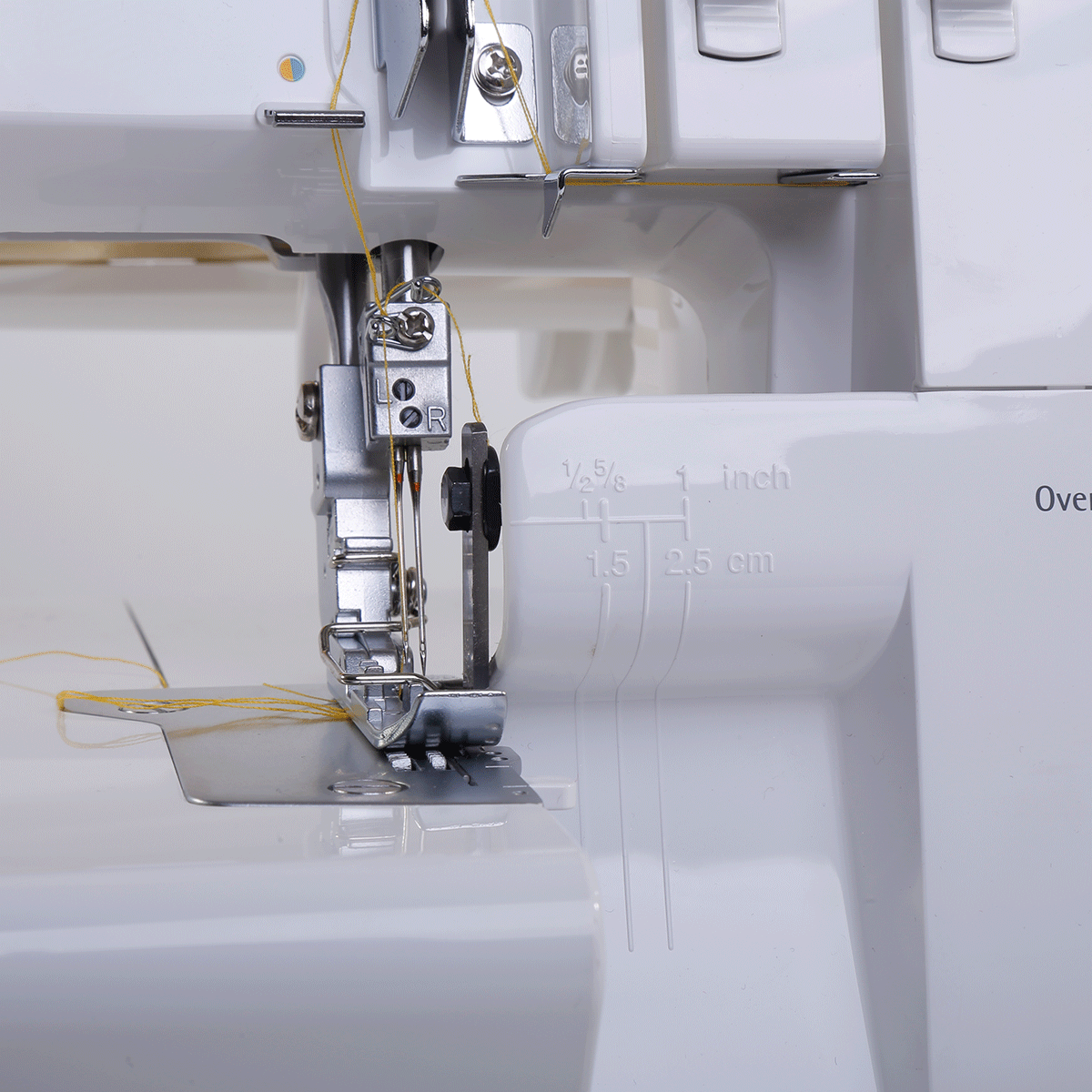

Cutting Width
can be adjusted quickly for perfect seams and rolled edges.
Adjustable Stitch Length
by simply turning dial located on the exterior right hand side within the range of 1 to 4mm.
SPEC / ACCESSORIES
| Table header 0 | Table header 1 |
|---|---|
| Dimensions | 315(W) x 290(D) x 290(H)mm |
| Weight | 7.0kg |
| Sewing speed | Max. 1,500spm |
| 4-Thread overlock | ✓ |
| 3-Thread overlock | ✓ |
| 2-Thread overcast | Option |
| Rolled hem | ✓ |
| Narrow overlock | ✓ |
| Frill 3-thread rolled hem with diff. feed | ✓ |
| 3-thread flatlock | ✓ |
| Number of needles | 1/2 Needles |
| Needle | SCHMETZ 130/705 H Nm 70,80,90 |
| Number of threads | 2/3/4 Threads |
| Differential feed ratio | 0.7-2.0 Ratio |
| Presser foot pressure adjustment | Stepless adjustment |
| Automatic rolled hemming | Automatic rolled hemming lever |
| Retractable upper knife | ✓ |
| 2-Thread converter | Option |
| Adjusting cutting width | ✓ |
| Light | LED |
| Presser foot lift (1 step/2 steps) | 5mm/7.5mm |
| Stitch length | 1-4mm |
| Stitch width | Left needle： 5-7mm
Right needle： 3-5mm Rolled hem： 1.8-2.2mm |
| Waste collector | Option |
| Operation support | Youtube |
| Accessories | Electronic foot control Spool caps Tweezers Cleaning brush/Needle inserter Nets Looper threader Needle set 130/705 Small screwdriver Oiler Accessory bag Dust cover Instruction manual |
Blind Stitch Presser Foot
Universal Blind Stitch Presser Foot

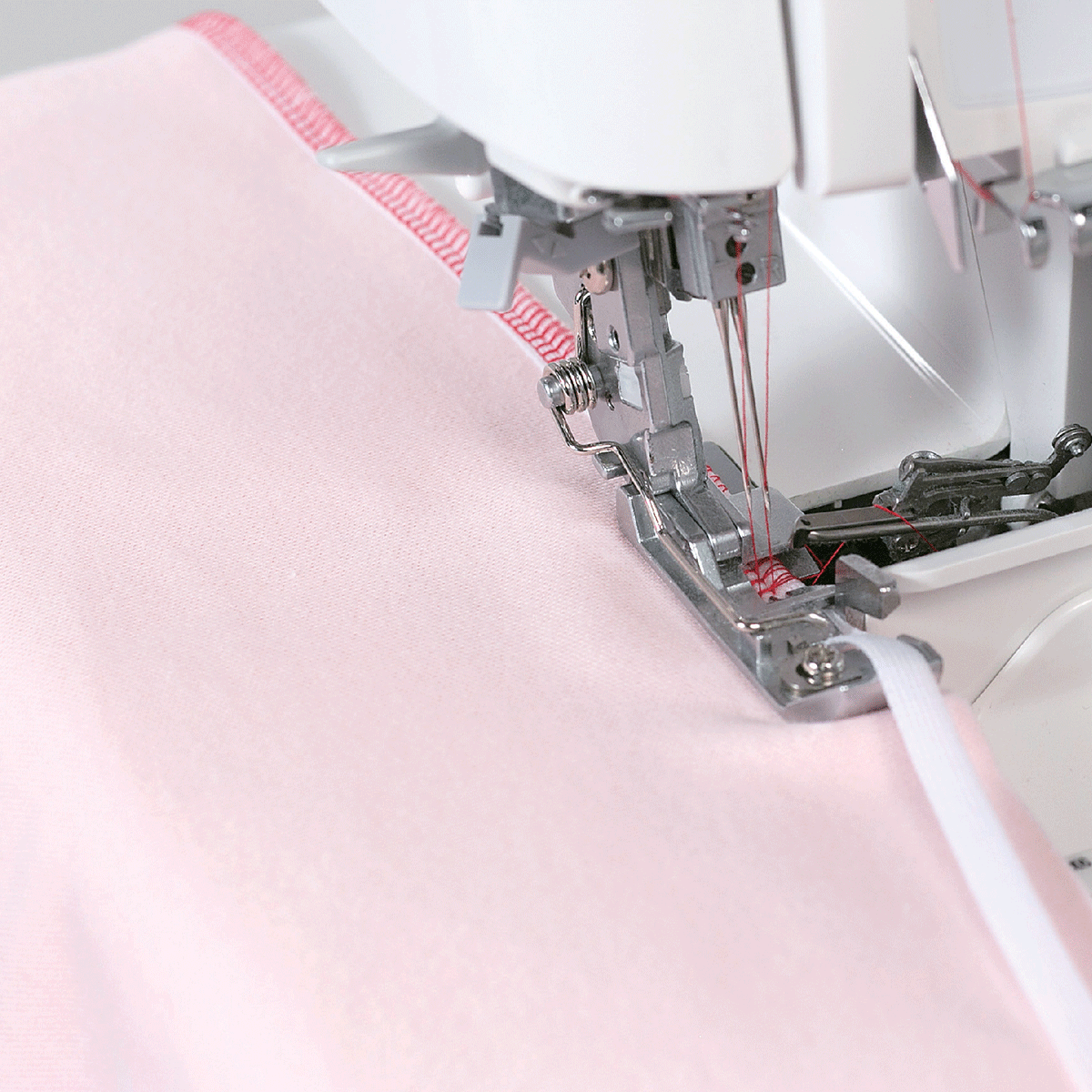

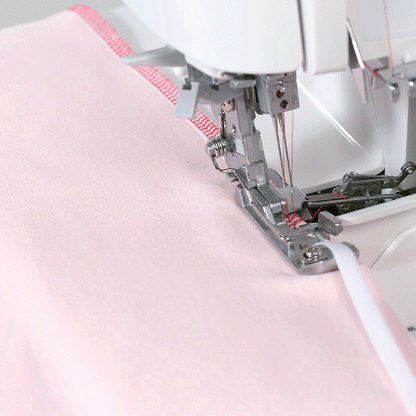

Elasticator Presser Foot
Cording Presser Foot
Beading Presser Foot
Curved Beading Presser Foot
Piping Presser Foot
Gathering Presser Foot
Waste Collector
4-Thread Overlock
Uses 2 needles and 4 threads to securely sew together knitted fabrics.
3-Thread Overlock
This basic stitch of overlock machines prevents fabric from fraying.
2-Thread Overcast (option)
Simply sew fabric edges with 2 threads to prevent fraying.
3-Thread Rolled Hem
The fabric edge is rolled, then covered with thread.
3-Thread Narrow Overlock
The fabric edge is rolled, then sewn with very narrow overlocking.
Frill 3-Thread Rolled Hem With Diff. Feed
Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.
3-Thread Flatlock
Use this stitch as an accent on clothes, interior items and accessories.
