Is This Machine Right For You?

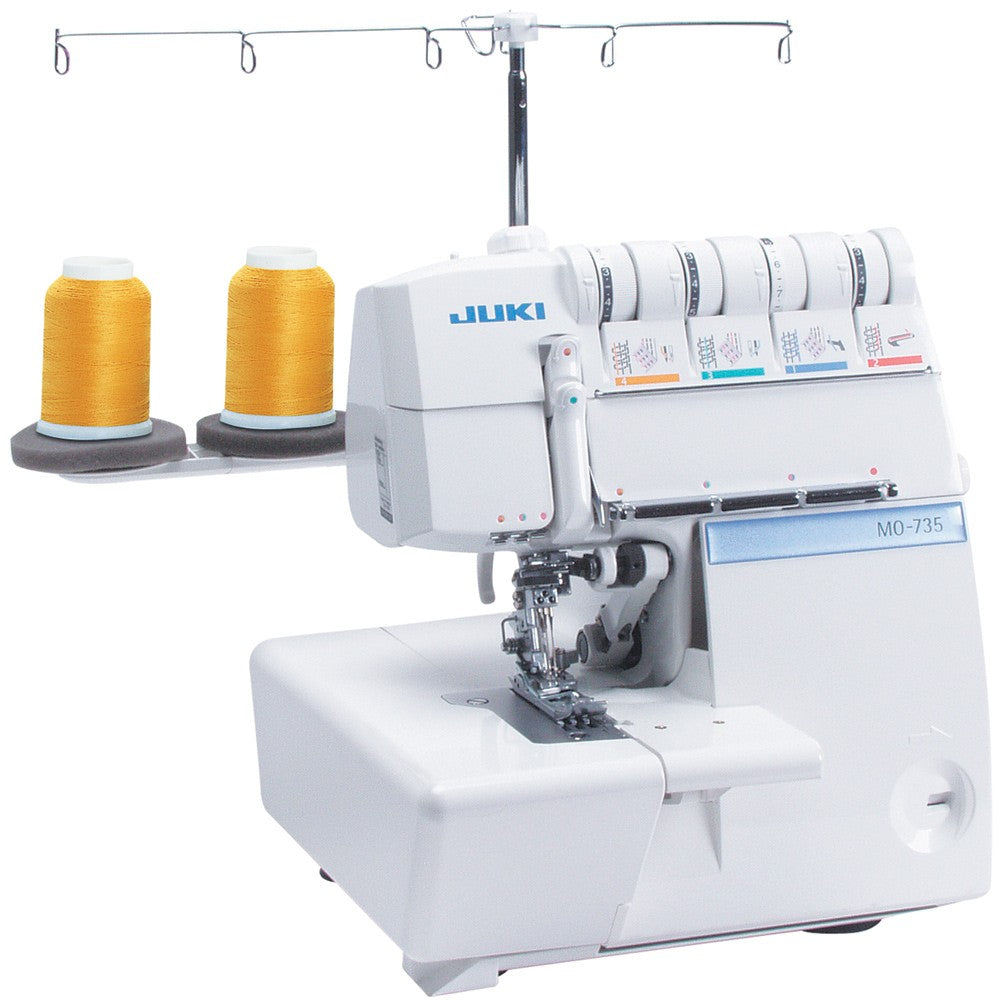

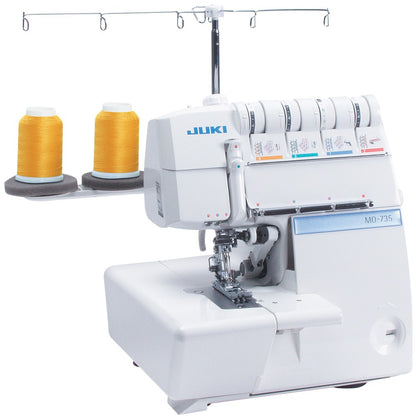

Expert insights for the JUKI AMERICA MO-735 2/3/4/5 Thread Overlock with Chainstitch and Coverstitch
This machine is great if you:
- Want a multi-function serger machine
- Sew garments frequently
- Need both overlock and coverstitch options
- Work with knit fabrics often
- Prefer versatile finishing tools
This machine may NOT be ideal if you:
- Need regular sewing stitches
- Only sew occasionally
- Want embroidery capability
- Sew mostly quilts
- Prefer standard sewing machines
Why Many People Love This Machine
The JUKI AMERICA MO-735 2/3/4/5 Thread Overlock with Chainstitch and Coverstitch combines several finishing techniques in one machine. Many sewists appreciate the flexibility for garment construction and finishing.
Popular Projects for This Machine
"A versatile option for sewists who want overlock, chainstitch, and coverstitch capabilities in one machine."
Features
Easily change from overlock to cover stitch!
You can easily switch from overlock to cover stitch.
Overlock settings
Cover stitch settings
Supports all basic stitch patterns
Cover Stitch
Perfect for various applications, such as simple hems, sleeve cuffs and necklines. Because the stitching stretches, it is ideal for stretch fabrics.
4-Thread Cover Stitch
3-Thread Cover Stitch (wide)
3-Thread Cover Stitch (narrow)
Chain Stitch
Because the lower thread forms a chain on the wrong side of the fabric, the stitch is strong when it is stretched, making it ideal for stitching the waist and side seams of pants. It also does well as decorative stitching for necklines.
Chain Stitch
Overlock Stitches
5-Thread Safety Stitch
This is the stitch type that combines 3-thread overlock and chain stitch. This stitch type produces durable seams and is frequently used for joining sides of shirts, for example.
4-Thread Overlock
Uses 2 needles and 4-threads to securely sew together knitted fabrics.
3-Thread Overlock
This basic stitch prevents fabric from fraying.
3-Thread Rolled Hem
The fabric edge is rolled, then covered with thread.
3-Thread Narrow Overlock
The fabric edge is rolled, then sewn with very narrow overlocking.
Frill 3-Thread Rolled Hem with Diff. Feed
Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed pieces.
3-Thread Flatlock
This stitch type is used to accentuate clothing, interior goods and small articles.
Since lace thread and wool yarn can be used for sewing the decorative part (as upper looper thread), this seams serve as unique design element of the work.
2-Thread Overcast
Simply sew fabric edges with 2 threads to prevent fraying.
*2-thread converter is included.
SPEC / ACCESSORIES
| Dimensions | 300 (W) x 260 (D) x 290 (H) mm |
|---|---|
| Weight | 9.0kg |
| Sewing speed | Max. 1,500spm |
| 4-Thread overlock | ✓ |
| 3-Thread overlock | ✓ |
| 2-Thread overcast | ✓ |
| Rolled hem | ✓ |
| Narrow overlock | ✓ |
| Frill 3-thread rolled hem with diff. feed | ✓ |
| 3-thread flatlock | ✓ |
| Number of needles | 1/2/3 Needles |
| Needle | SCHMETZ 130/705 H or JLx2 |
| Number of threads | 2/3/4/5 Threads |
| Differential feed ratio | 0.7-2.0 Ratio |
| Presser foot pressure adjustment | 3 steps adjustment |
| Lower looper threader | ✓ |
| Ajusting cutting width | ✓ |
| Automatic rolled hemming | Automatic rolled hemming lever |
| Retractable upper knife | ✓ |
| 2-Thread converter | ✓ |
| Thread cutter | ✓ |
| Ajusting cutting width | ✓ |
| Safety design | ✓ |
| Light | LED |
| Presser foot lift (1 step/2 steps) | 6mm + front up |
| Stitch length | 1-4mm
|
| Stitch width | (Standard)
Left needle： 7-9mm Right needle： 5-7mm Rolled hem： 2mm Chain needle (right needle)： 10-12mm Cover stitch： 2.5/5mm (For limited area, /CE/CE5/SAA/IT) Left needle： 5-7mm Right needle： 3-5mm Rolled hem： 2mm Chain needle (right needle)： 8-10mm Cover stitch： 2.5/5mm |
| Waste collector | ✓ |
| Operation support | YouTube
|
| Accessories | Needle set 130/705H(SCHMETZ)
Small screwdriver Tweezers Upper looper converter Needle threader Brush/Needle inserter Electronic foot control Oiler Nets Lower knife Spool caps Accessory bag Dust cover Large screwdriver Cover/chain stitch extension plate Cover stitch presser foot Waste collector Spool holder Needle set JLx2 (3xNo.80) Instruction manual |
| Interlock | ✓ |
| Chain stitch | ✓ |
| 4-Thread cover stitch | ✓ |
| 3-Thread cover stitch | ✓ |
Blind Stitch Presser Foot
Universal Blind Stitch Presser Foot
Elasticator Presser Foot
Cording Presser Foot
Beading Presser Foot
Curved Beading Presser Foot
Piping Presser Foot
Gathering Presser Foot
Hemmer guide (for cover stitch)
4-Thread Overlock
Uses 2 needles and 4 threads to securely sew together knitted fabrics.
3-Thread Overlock
This basic stitch of overlock machines prevents fabric from fraying.
2-Thread Overcast
Simply sew fabric edges with 2 threads to prevent fraying.
3-Thread Rolled Hem
The fabric edge is rolled, then covered with thread.
3-Thread Narrow Overlock
The fabric edge is rolled, then sewn with very narrow overlocking.
Frill 3-Thread Rolled Hem With Diff. Feed
Uses 3-thread rolled hemming and the differential feed on stretch fabrics to create richly designed articles.
3-Thread Flatlock
Use this stitch as an accent on clothes, interior items and accessories.
Interlock / 5-Thread Safety Stitch
4-Thread Cover Stitch
3-Thread Cover Stitch (wide)
3-Thread Cover Stitch (narrow)
